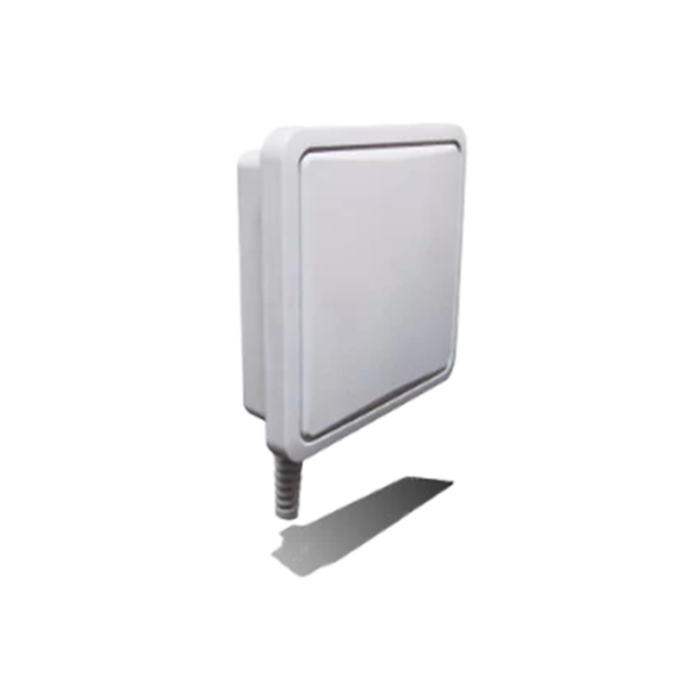

5.475 GHz to 5.875 GHz 17dbi 2x2 MIMO Dual Polarized Vertical and Horizontal ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna5.475 GHz to 5.875 GHz 17dbi 2x2 MIMO Dual Polarized Vertical and Horizontal ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna5.475 GHz to 5.875 GHz 17dbi 2x2 MIMO Dual Polarized Vertical and Horizontal ABS Enclosure Waterproof BOX Panel Directional Outdoor Antenna

Model No: PE-5458G17-VHXXX

  • Dimensions: L230xW230xD75mm
  • Weight: 1.2 KG
  • Connector: Custom choice
  • Beam-width: Horz.16 deg Vert.15 deg
INQUIRY

Applications:

  • 5.125GHz-5.875GHz Wimax and Wifi Band

  • IEEE 802.11a / 80216d / 80216e Wireless Lan

  • 17dBi Directional Dual port Multipoint applications

  • Point to Point Bridge

  • SOC CPE User

  • Jumper Cable can be switched to Equipment Connection

  • Several options for cable, such as RG178, RG316, RG174 17/20cm, etc.

  • Several options for Connector, such as I-Pax / MMCX / MCX /SMA-Male / RP-SMA-Male, etc.

  • WiMAX / WiFi, WLAN /MIMO /

  • Wireless Video Systems

Features:

  • Superior Performance

  • Lightweight (UV ABS)

  • Good appearance design

  • DC Short lightning protection

  • Outdoor antenna for public Hot spots

  • Includes tilt and swivel mast mount brackets

  • IP65 Waterproof rating

  • RoHS Compliant

Frequency Range

5475MHz - 5875MHz

V.S.W.R (MAX)

1.5 :1

Antenna Type

Patch Type

Radiation Directional

Gain

17 dBi

Polarization

Vertical or Horizontal

Maximum Power

10 Watts

-3db Vertical Beam-width

port1: 15 deg

port2: 14 deg

-3db Horizontal Beam-width

port1: 14 deg

port2: 15 deg

FBR Greater than 25 dB
Isolation than 25db

Impedance

50 Ohm

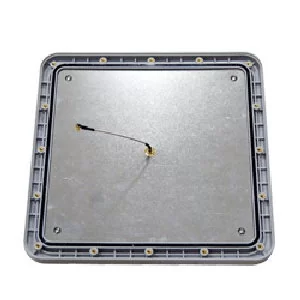

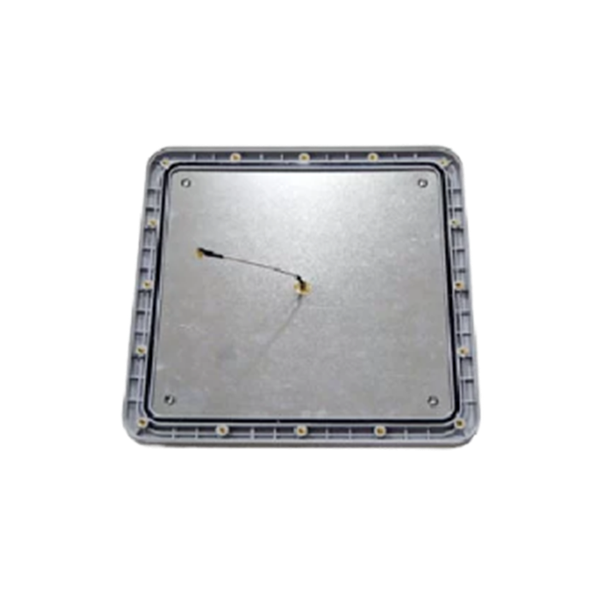

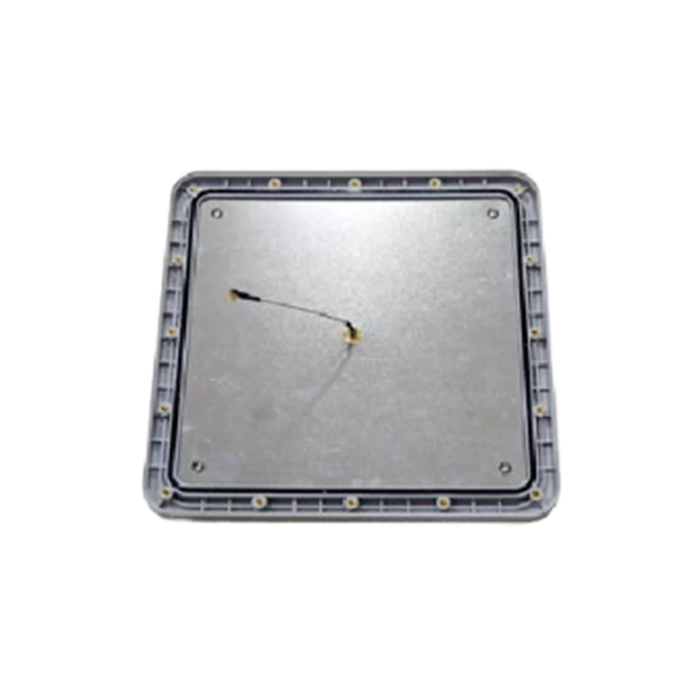

Antenna Design

16(4x4) Patch Array

Internal Material

Taiwan FR4

RF Cable RG178 / RG174/ other
Connector I-PAX or MMCX or Other

Waterproof RJ45

20cm RJ45 Male

Length x Width

230 x 230 mm

Diameter

75 mm

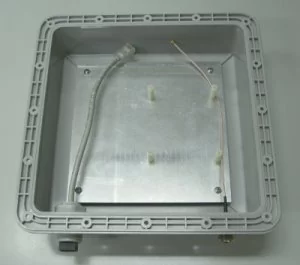

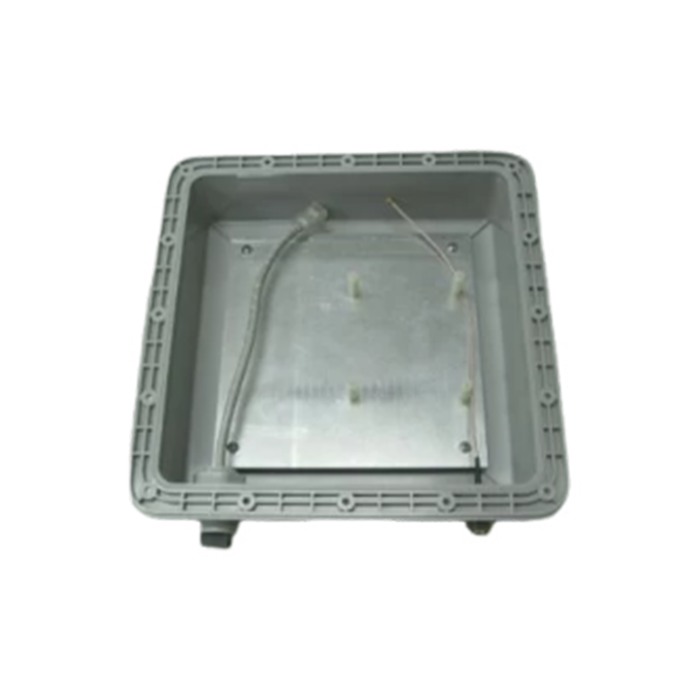

Inside Length x Width 150 x 70mm (User Space)
Inside Diameter(Least) 25mm (User Space)

Antenna Weight (G.W)

400 g

Accessories (G.W)

200 g

Application Indoor / Outdoor

Radome Material

Light Gray ABS

Waterproof Box Light Gray ABS
Mount Style Pole Mount and Wall Mount
Mount Pole 32mm to 50mm

Wind Survival

Greater than 180MPH

Storage Temperature -20 to +60
Operating Temperature -20 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity

5%~90% non-condensing

Safety, Emission and other

CE, FCC, RoHS

Model Series No.

Model No.  Cable Connector

PE-5458G17-VHS01

RG178 For 17cm

RP-SMA-Male x2

PE-5458G17-VHS02

RG178 For 17cm

SMA-Male x2

PE-5458G17-VHM01

RG178 For 17cm

R/A MMCX  x2

PE-5458G17-VHC01

RG178 For 17cm

R/A MCX x2

PE-5458G17-VHS03

RG178 For 17cm

R/A RP-SMA x2

PE-5458G17-VHI01

1.3mm For 17cm

I-PAX x2

PE-5458G17-VHS11

RG178 For 21cm

RP-SMA-Male x2

PE-5458G17-VHS12

RG178 For 21cm

SMA-Male x2

PE-5458G17-VHM11

RG178 For 21cm

R/A MMCX x2

PE-5458G17-VHC11

RG178 For 21cm

R/A MCX x2

PE-5458G17-VHS13

RG178 For 21cm

R/A RP-SMA x2

PE-5458G17-VHI10

1.3mm For 21cm

I-PAX x2
