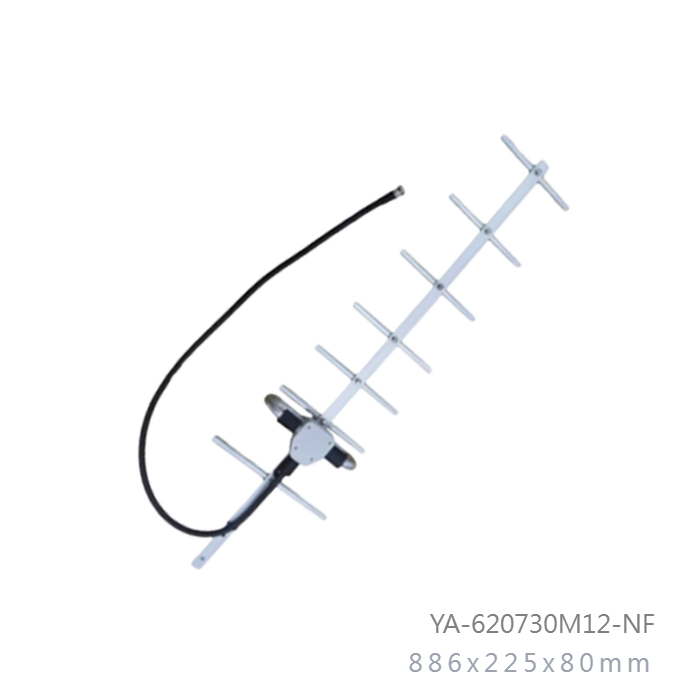

620MHz to 730MHz 12dBi Yagi Directional Outdoor Antenna620MHz to 730MHz 12dBi Yagi Directional Outdoor Antenna620MHz to 730MHz 12dBi Yagi Directional Outdoor Antenna

Model No: YA-620730M12-NF

  • Dimension : 886x225x80mm
  • Weight : 800g
  • Connector : N-Female
  • Beam-width : Horz.50 deg Vert.40 deg
INQUIRY

Applications

  • 620MHz -730MHz Band
  • IEEE 802.22 WRAN
  • Public Wireless Hotspot
  • GSM

Features

  • Superior performance
  • Lightweight
  • All weather operation
  • DC Short lightning protection
  • Vertical installation
  • Including tilt and swivel mast mounting kit
  • Adjust color and features in accordance with customer needs

Frequency Range

620MHz to 730MHz

V.S.W.R (MAX)

1.5:1

Antenna Type

Collinear

RadiationOmni Directional

Gain (MAX)

12 dBi

Polarization

Vertical or Horizontal

Maximum Power

200 Watts

Vertical Beam-width

40 Deg

Horizontal Beam-width

50 Deg

Impedance

50 Ohm

Antenna Design

Yagi Antenna

Internal Material

Copper

Connector

N-Female

Length (MAX)

886 mm

Diameter (MAX)

225 x 80mm

Antenna Weight (G.W)

800 g

Accessories (G.W)

70 g

ApplicationIndoor / Outdoor

Radome Material

ABS+PC

Parts Material

Aluminum

Mount StylePole Mount / Wall Mount
MountingStainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-20 to +80

Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity5%~80% non-condensing

Safety,Emission and other

CE, FCC, RoHS
