Professional LTE Low-Band Solutions

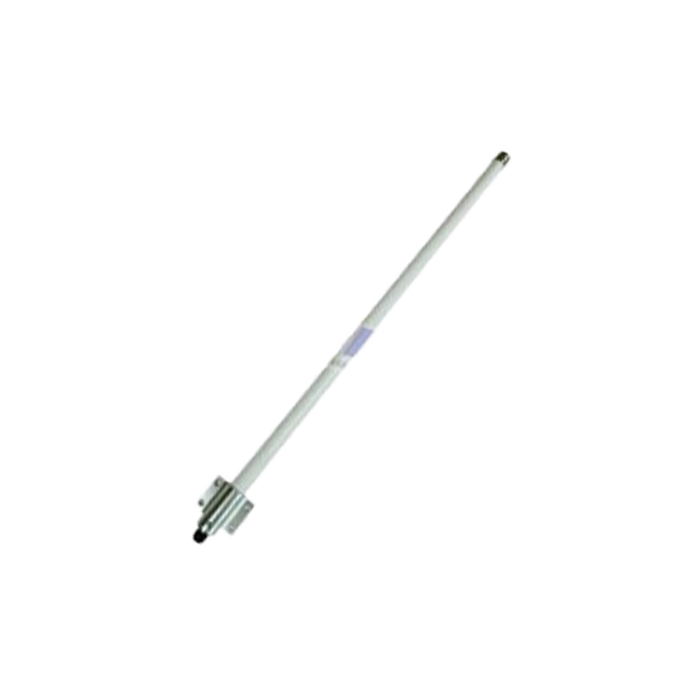

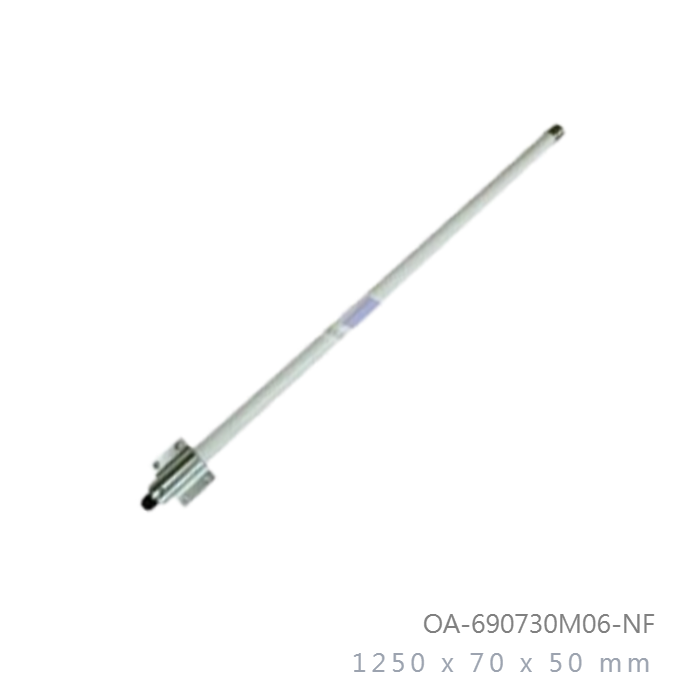

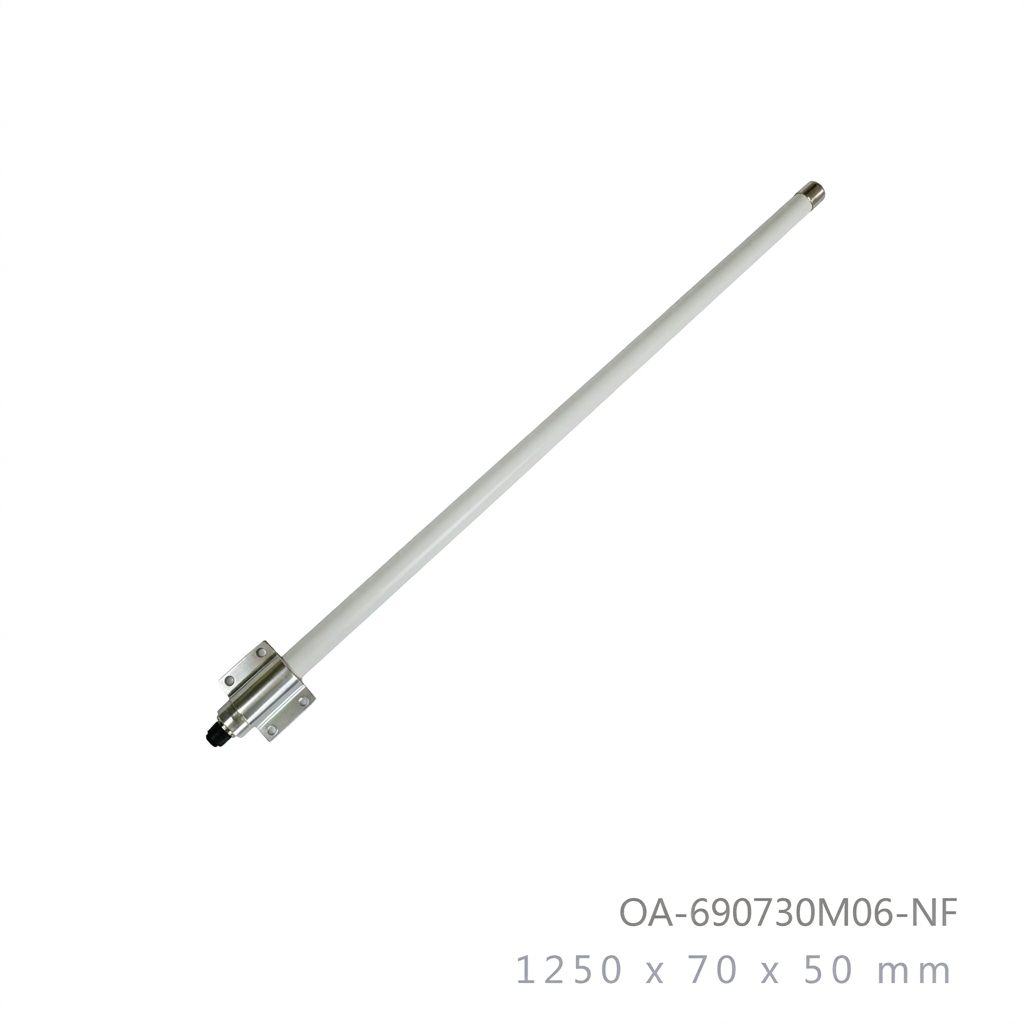

690 - 730 MHz High-Gain Collinear Omni Antenna
Professional industrial-grade high-performance collinear dipole array designed for 360-degree multipoint distribution. Engineered for superior stability in the 700MHz band, it is optimized for public wireless infrastructure, long-range hotspots, and industrial wireless video systems.
Electrical Specifications
| Frequency Range | 690 MHz – 730 MHz |
| V.S.W.R (MAX) | ≤ 1.5 : 1 |
| Peak Gain | 6 dBi |
| Radiation Type | Omni-Directional (360°) |
| Maximum Power | 200 Watts |
| Beam-width (H/V) | Horz. 360° / Vert. 25° |
| Antenna Design | Collinear Dipole Array (Copper Internal) |
Mechanical & Environmental
| Dimensions | 1250 x 70 x 50 mm |
| Total Weight (G.W.) | 1370 g |
| Connector Type | N-Female |
| Radome Material | White Fiberglass (Industrial Grade) |
| Wind Survival | > 150 MPH |
| Compliance | CE, FCC, RoHS Compliant |
Engineering Core Features
High-Gain Omni Coverage
Delivers a stable 6 dBi gain with a consistent 360-degree horizontal pattern, making it ideal for multipoint public wireless networks and high-density MMDS applications.
Integrated Surge Protection
Features built-in DC-Short lightning protection to safeguard sensitive connected radio equipment against atmospheric electrical discharge and static buildup.
Tactical Mounting Kit
Includes a professional-grade tilt and swivel mast mounting kit, allowing for precise vertical adjustment to ensure optimal signal propagation in varied outdoor terrains.
Industrial Weatherproofing
Constructed with a UV-resistant fiberglass radome and aluminum support structure, engineered to survive wind speeds over 150 MPH and extreme environmental conditions.
