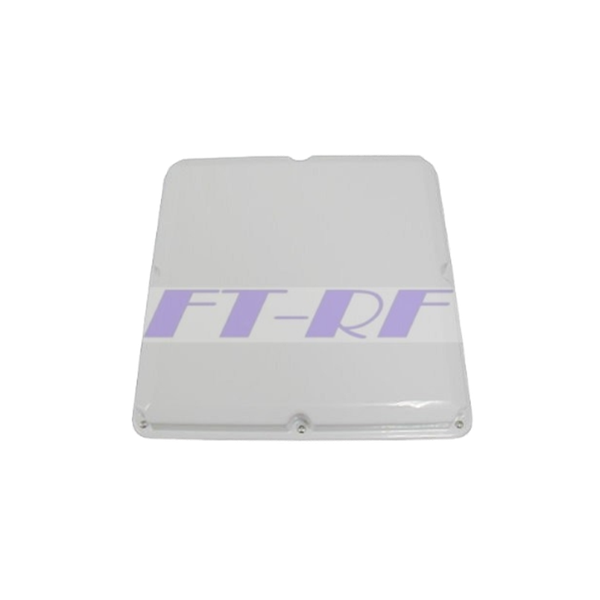

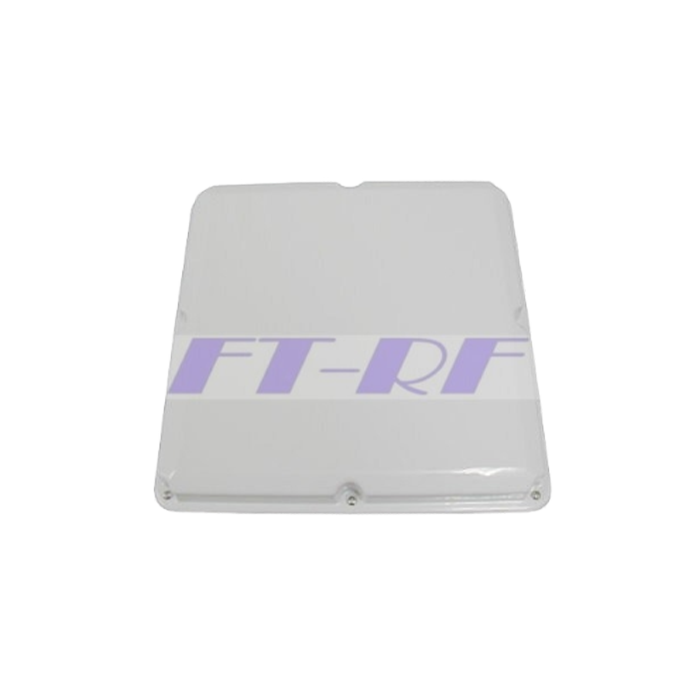

694MHz to 806MHz 8.5dBi Vertical or Horizontal Panel Antenna694MHz to 806MHz 8.5dBi Vertical or Horizontal Panel Antenna694MHz to 806MHz 8.5dBi Vertical or Horizontal Panel Antenna

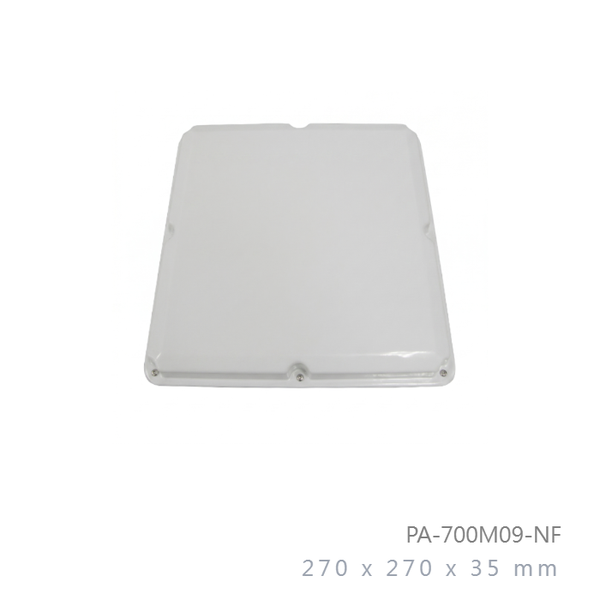

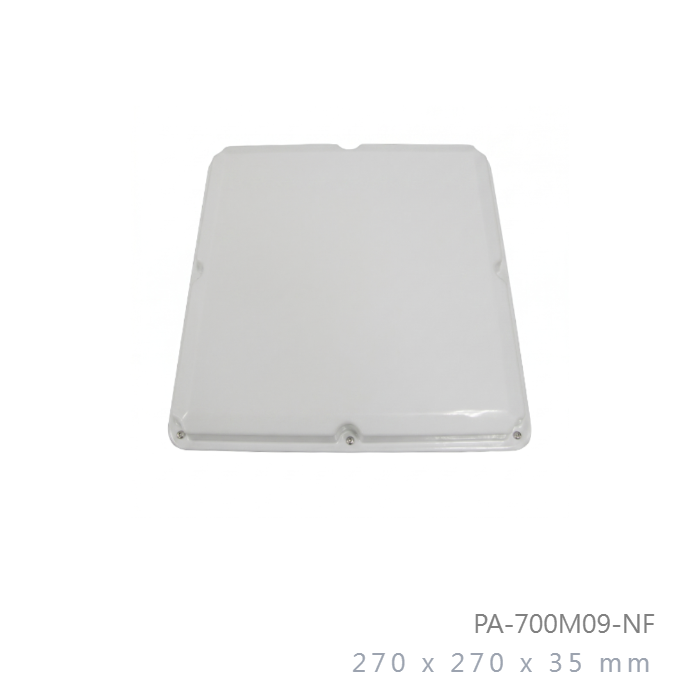

Model No: PA-700M09-NF

  • Dimension : L270xW270xD35mm
  • Weight : 600g
  • Connector : N-Female
  • Beam-width : Horz.72 deg Vert.64 deg
INQUIRY

Applications:

  • Panel Antenna for 694MHz to 806MHz Band
  • Directional and Multipoint applications
  • Bluetooth
  • Wifi, RFID
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

694MHz to 806MHz

V.S.W.R (MAX)

2.0 :1

Antenna Type

Patch Type

RadiationDirectional

Gain (Avg)

8.5 dBi

Polarization

Vertical or Horizontal

Maximum Power

15 Watts

Vertical Beam-width

64 Deg

Horizontal Beam-width

72 Deg

F / B-16 dB

Impedance

50 Ohm

Antenna Design

One Patch

Internal Material

FR4(Taiwan)

Connector

N-Female

Length x Width(MAX)

270 x 270mm

Diameter (MAX)

35mm

Antenna Weight (G.W)

600 g

Accessories (G.W)

300 g

ApplicationIndoor / Outdoor

Radome Material

White ABS

Mount StylePole Mount

Parts Material

Aluminum

MountingStainless Steel
Mount Adjustment+- 28deg

Wind Survival

Greater than 150MPH

Storage Temperature-20 to +80
Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity

5%~80% non-condensing

Safety,Emission and other

RoHS
