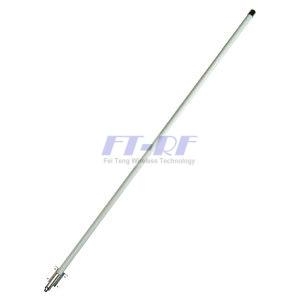

750MHz to 790MHz 7dBi Dipole Omni Directional Outdoor Antenna750MHz to 790MHz 7dBi Dipole Omni Directional Outdoor Antenna750MHz to 790MHz 7dBi Dipole Omni Directional Outdoor Antenna

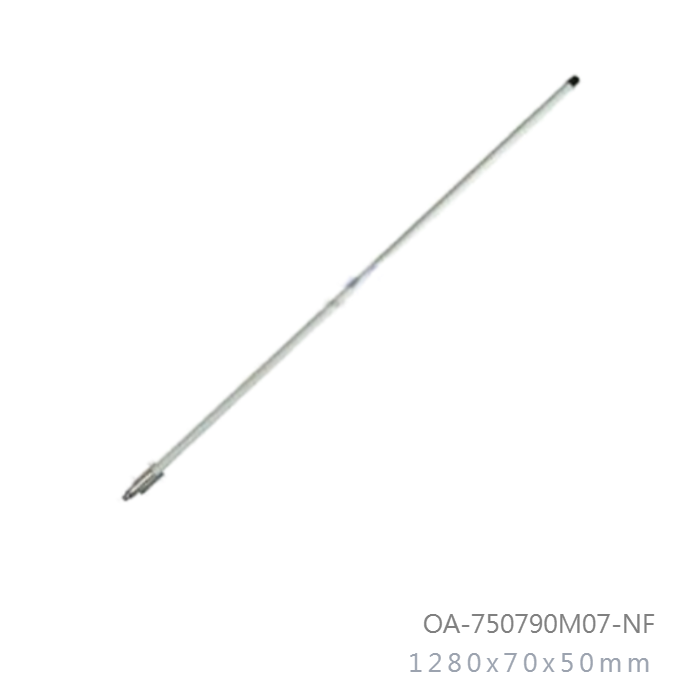

Model No: OA-750790M07-NF

  • Dimension : 1280x70x50mm
  • Weight : 1170g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.18 deg
INQUIRY

Applications:

  • 750MHz to 790MHz 7dBi Dipole Omni Directional Outdoor Antenna
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • RoHS Compliant

Frequency Range

750MHz to 790MHz

V.S.W.R (MAX)

 1.5:1

Antenna Type

Collinear

RadiationOmni Directional

Gain (MAX)

7 dBi

Polarization

Vertical

Maximum Power

200 Watts

Vertical Beamwidth

18 Deg

Horizontal Beamwidth

360 Deg

Impedance

50 Ohm

Antenna Design

 Dipole Array

Internal Material

Copper

Connector

N-Female

Length

1280 mm

Diameter

70 x 55mm

Antenna Weight (N.W)

1100 g

Accessories (N.W)

70 g

ApplicationIndoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount StylePole Mount / Wall Mount
MountingStainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-20 to +80

Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity5%~80% non-condensing

Safety, Emission and other

CE, FCC, RoHS
