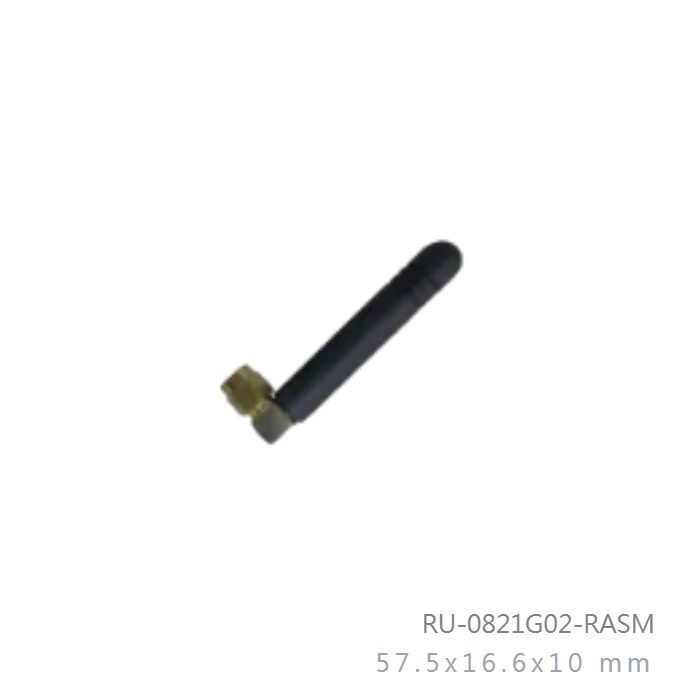

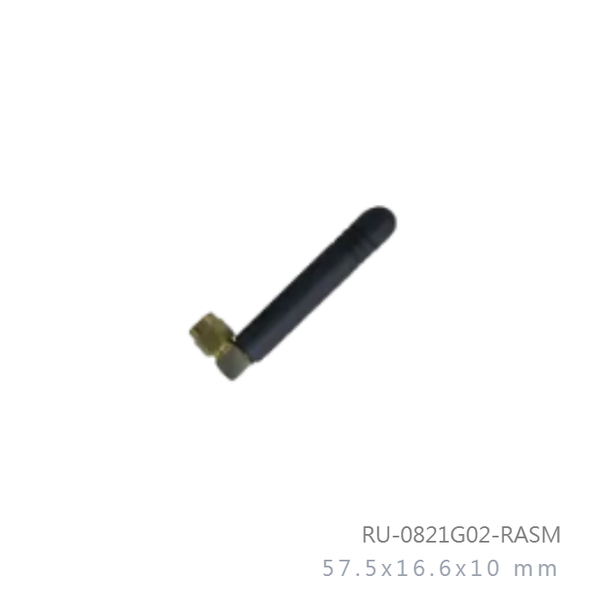

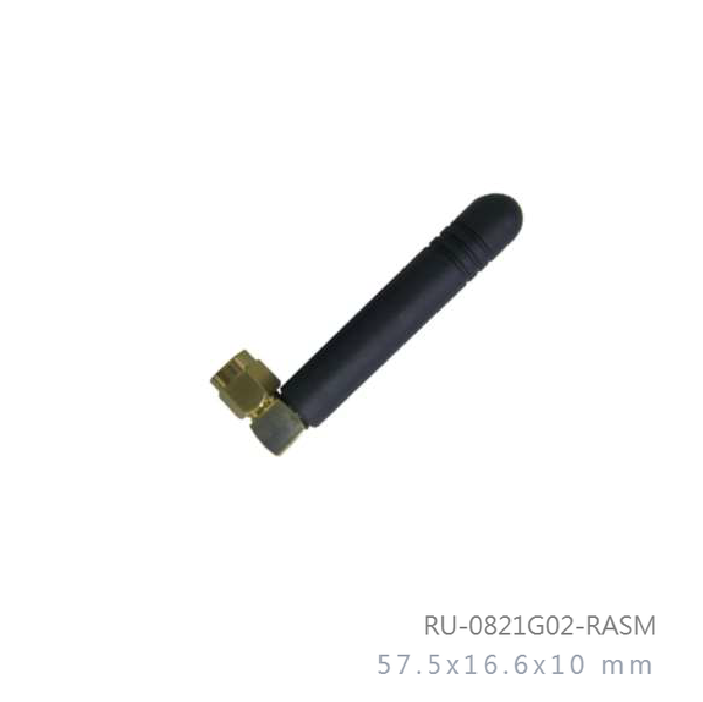

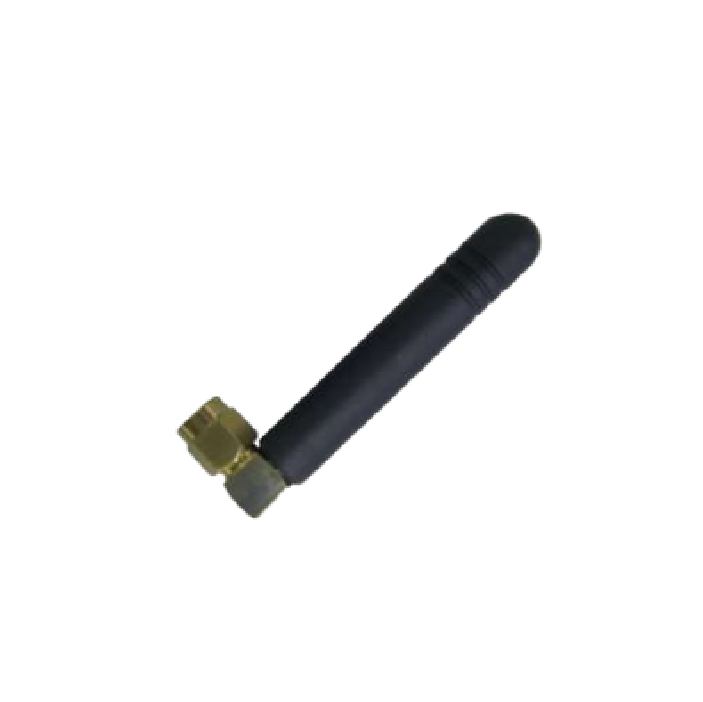

824MHz to 960MHz and 1710MHz to 2170MHz 2dBi Right Angle Rubber Antenna

Model No: RU-0821G02-RASM

Dimension: 57.5x16.6x10 mm
N.W: 30g
Connector: RA-SMA- Male
Beam-width: Horz.360 Deg Vert.68 Deg

Quantity:

INQUIRY

Applications and Features
Specifications
Mechanical specification
Environmental Specifications

Applications:

824-960MHz, 1710-2170 MHz
For LTE band: B1, B2, B3, B4, B5, B6, B8, B9, B10, B18, B19, B25, B26

Features:

Superior performance
Lightweight
Indoor
Vertical installation
Adjust color and features in accordance with customer needs

A pig-tail antenna is designed for applications of LTE wide-band used. Its impedance bandwidth can cover from 824MHz - 960MHz and 1710 MHz - 2170MHz. Pig-tail antenna owns a good antenna gain and near Omni-directional pattern. It can be easily applied to GPS/3G tracker, Mobile 3G devices, and so on. This Antenna has a maximum 2dBi gain, which offers the best performance with reliable connections. The antenna has a right angle SMA Male type
connector.

Electrical specification

Frequency Range	824-960MHz / 1710-2170MHz
V.S.W.R (AVG)	3.0 :1
Radiation	Omni Directional liked
Gain	Typ 2dBi
Polarization	Linear
Maximum Power	2 Watts
Impedance	50 Ohm
Cover Material	ABS
Cover color	Black
Connector	RA-SMA- Male
Connector color	Golden

Dimension (MAX)	57.516.610 mm
Diameter (MAX)	10mm
Antenna Weight (G.W)	30 g
Application	Indoor
Radome Material	ABS

Operating Temperature:	-20deg to +65deg
Storage Temperature:	-20deg to +80deg
Operating Relative Humidity:	10%~80% non-condensing
Storage Humidity:	5%~80% non-condensing
Safety, Emission and other	CE, FCC, RoHS
