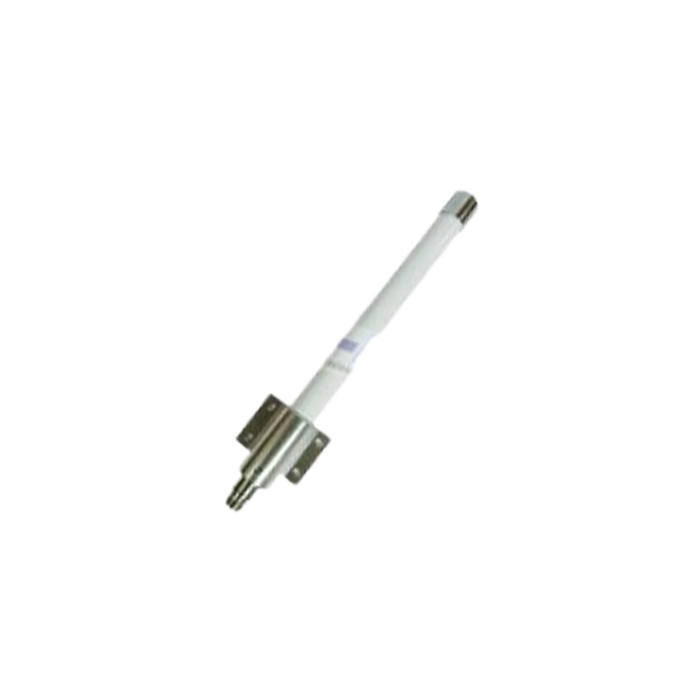

824 to 960MHz and 1710 to 2170MHz 2.5dbi / 3.5dBi Five Band Omni Directional Outdoor Antenna824 to 960MHz and 1710 to 2170MHz 2.5dbi / 3.5dBi Five Band Omni Directional Outdoor Antenna824 to 960MHz and 1710 to 2170MHz 2.5dbi / 3.5dBi Five Band Omni Directional Outdoor Antenna

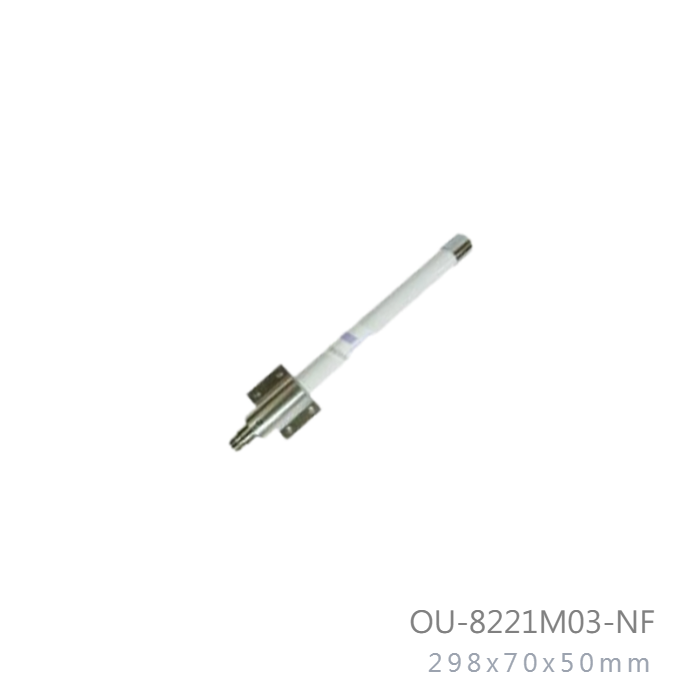

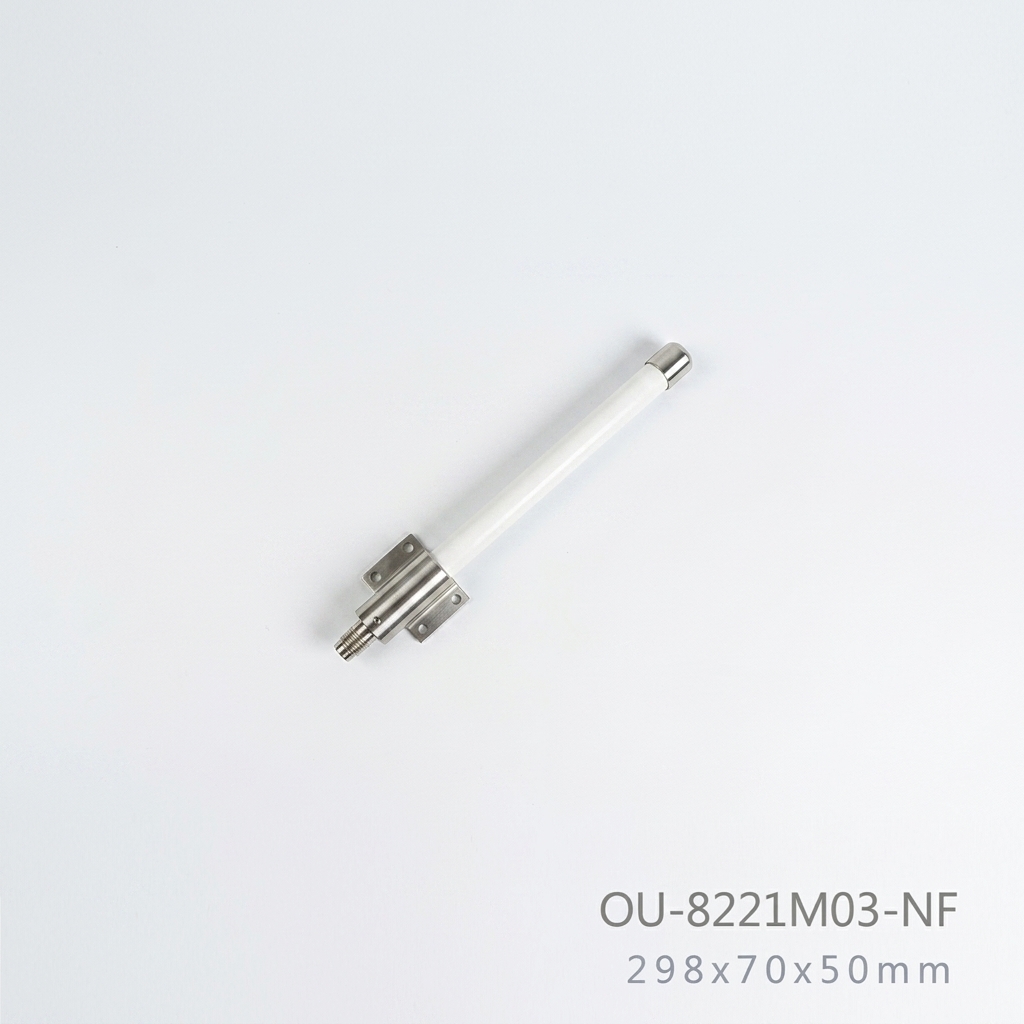

Model No: OU-8221M03-NF

Datasheet:Download

  • Dimension : 298x70x50mm
  • Weight : 150g
  • Connector : N-Female
  • Beam-width : Horz.360 deg
  • 824MHz to 960MHz : Vert.70 deg
  • 1710MHz to 2170MHz : Vert.47 deg
INQUIRY

Applications:

  • 824MHz to 960MHz Band and 1710MHz to 2710MHz Band
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

824MHz to 960MHz

1710MHz to 2170MHz

V.S.W.R (MAX)

 2.0 :1

Antenna Type

Collinear

RadiationOmni Directional

Gain (MAX)

2.5 dbi/ 3.5 dBi

Polarization

Vertical

Maximum Power

150 Watts

Vertical Beam-width

824 to 960MHz : 70 Deg

1710 to 2170MHz : 47 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

1/4 Wavelength Dipole

Internal Material

Copper

Connector

N-Female

Length (MAX)

298mm

Diameter (MAX)

70mm

Antenna Weight (G.W)

150 g

Accessories (G.W)

35 g

ApplicationIndoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount StylePole Mount / Well Mount
MountingStainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-20 to +80

Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity5%~80% non-condensing

Safety, Emission and other

RoHS
