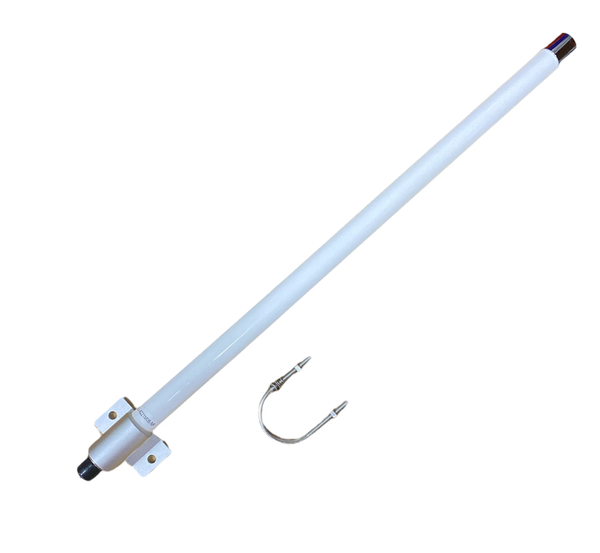

824 to 960MHz and 1710 to 2170MHz 2dBi / 6dBi Multi-Frequency Band Omni Directional Outdoor Antenna N-Female

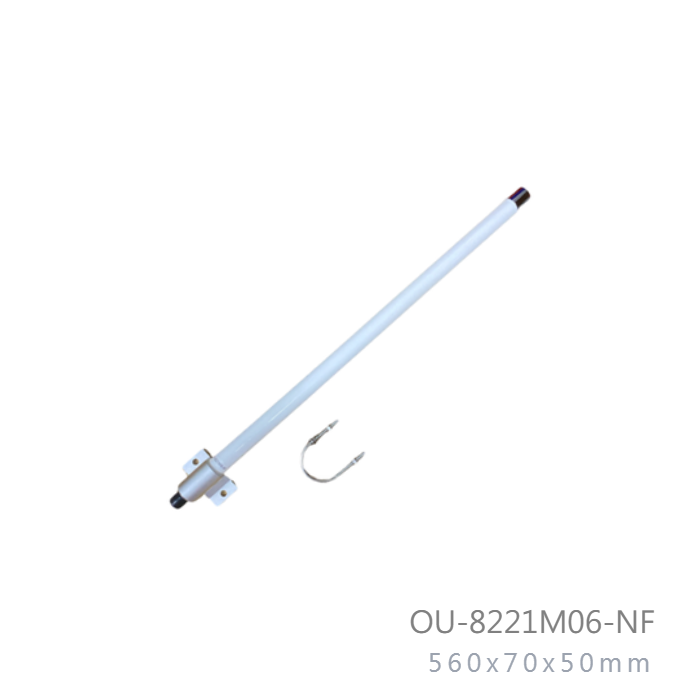

Model No: OU-8221M06-NF

Datasheet:Download

  • Dimension : 560x70x50mm
  • Weight : 350g
  • Connector : N-Female
  • Beam-width : Horz.360 deg
  • 824-960MHz : Vert.45Deg
  • 1710-2170MHz : Vert.19Deg
INQUIRY

Applications:

  • 824 to 960MHz and 1710 to 2170MHz 2dBi / 6dBi Multi-Frequency Band Omni Antenna N-Female
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

824MHz to 960MHz /

1710MHz to 2170MHz

V.S.W.R (Avg)

 2.0 :1

Antenna Type

Collinear

Radiation Omni Directional

Gain (Avg)

824 to 960MHz : 2 dBi

1710 to 2170mhz : 6dBi

Polarization

Vertical

Maximum Power

100 Watts / 50W

Vertical Beam-width

824 to 960MHz : 45Deg

1710 to 2170MHz : 19Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array With Dipole

Internal Material

Copper

Connector

N-Female

Length

560mm

Diameter

70 x 55mm

Antenna Weight

350 g

Accessories

70 g

Application Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style Pole Mount / Wall Mount
Mounting Stainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-20 to +80

Operating Temperature -20 to +60
Operating Humidity 10%~80% non-condensing
Storage Humidity 5%~80% non-condensing

Safety, Emission and other

RoHS
