824MHz to 896MHz 5dBi Omni Outdoor Antenna (868 MHz antenna) N-Female

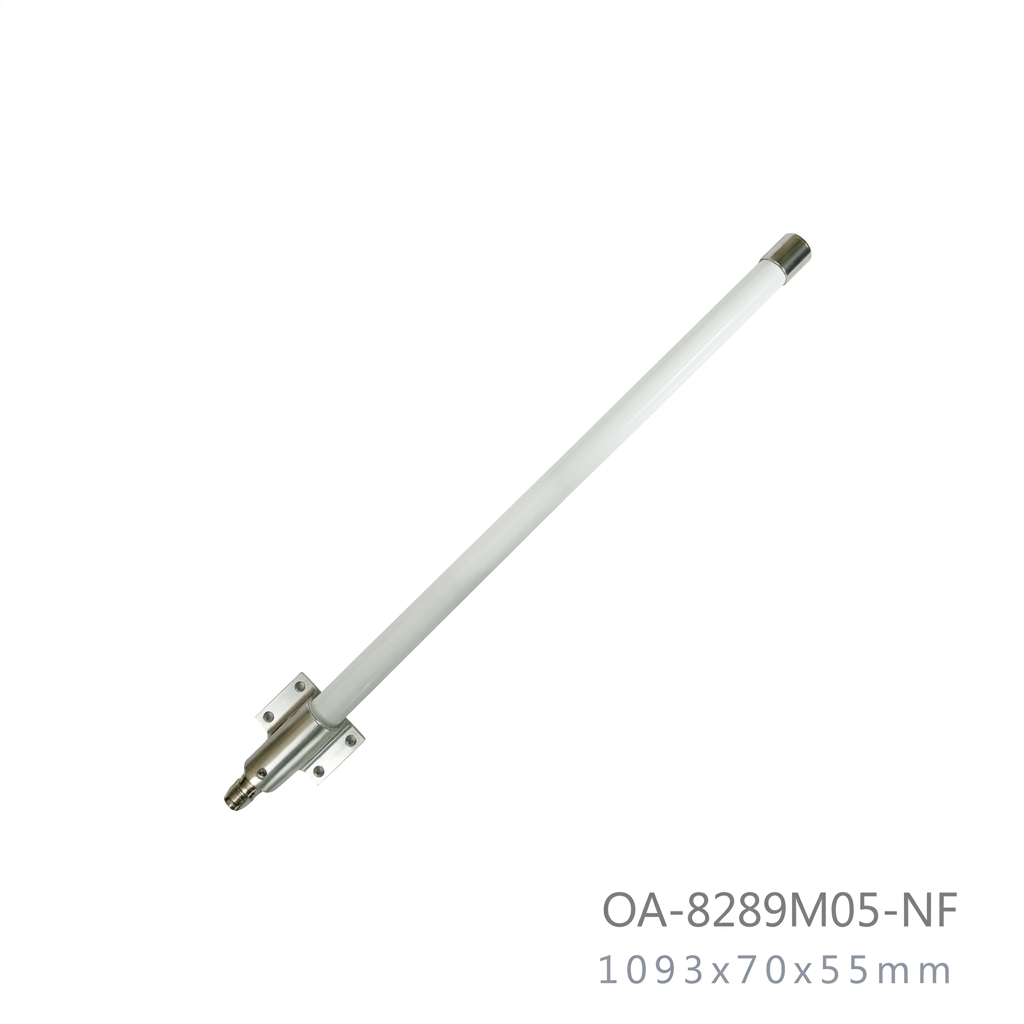

Model No: OA-8289M05-NF

Datasheet:Download

  • Gain : 5.5 dBi
  • Dimension : 1093x70x55mm
  • Weight : 600g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.25 deg
INQUIRY

Applications:

  • 824MHz to 896MHz 5dBi Omni Outdoor Antenna (868 MHz antenna) N-Female
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

824MHz to 896MHz

V.S.W.R (Avg)

1.3 :1

Antenna Type

Collinear

Radiation Omni Directional

Gain (Avg)

5 dBi

Polarization

Vertical

Maximum Power

120 Watts

Vertical Beam-width

25 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Length (MAX)

1093 mm

Diameter (MAX)

70 x 55mm

Antenna Weight (G.W)

600 g

Accessories (G.W)

70 g

Application Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style Pole Mount / Well Mount
Pole Mounting 32mm to 45mm
Mounting Stainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80

Operating Temperature -40 to +60
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing

Safety, Emission and other

CE, FCC, RoHS
