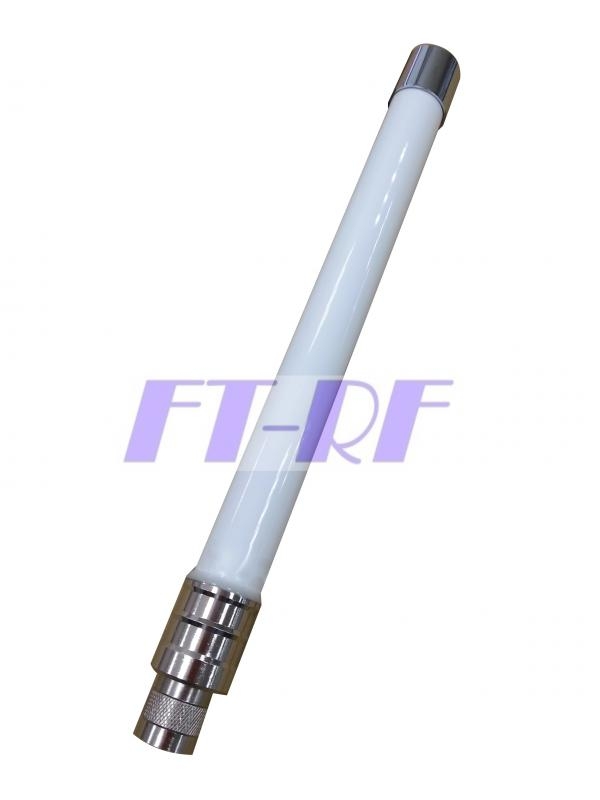

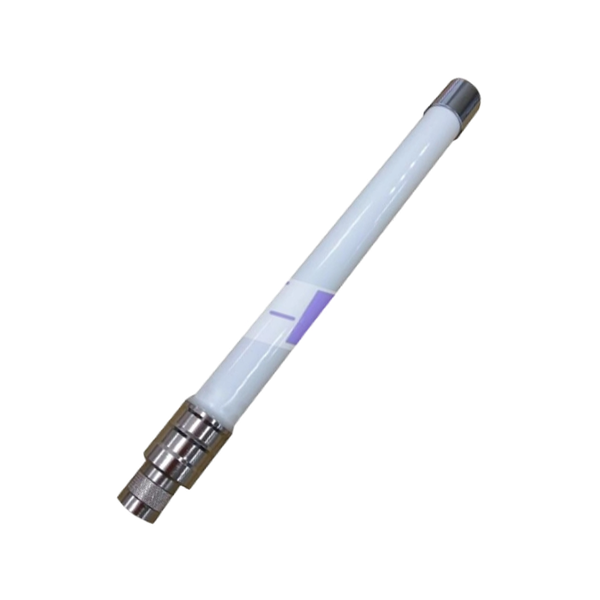

880 to 960MHz and 1710 to 2170MHz 2dBi Five Band Mini Omni Directional Outdoor Antenna (N-Male)880 to 960MHz and 1710 to 2170MHz 2dBi Five Band Mini Omni Directional Outdoor Antenna (N-Male)880 to 960MHz and 1710 to 2170MHz 2dBi Five Band Mini Omni Directional Outdoor Antenna (N-Male)

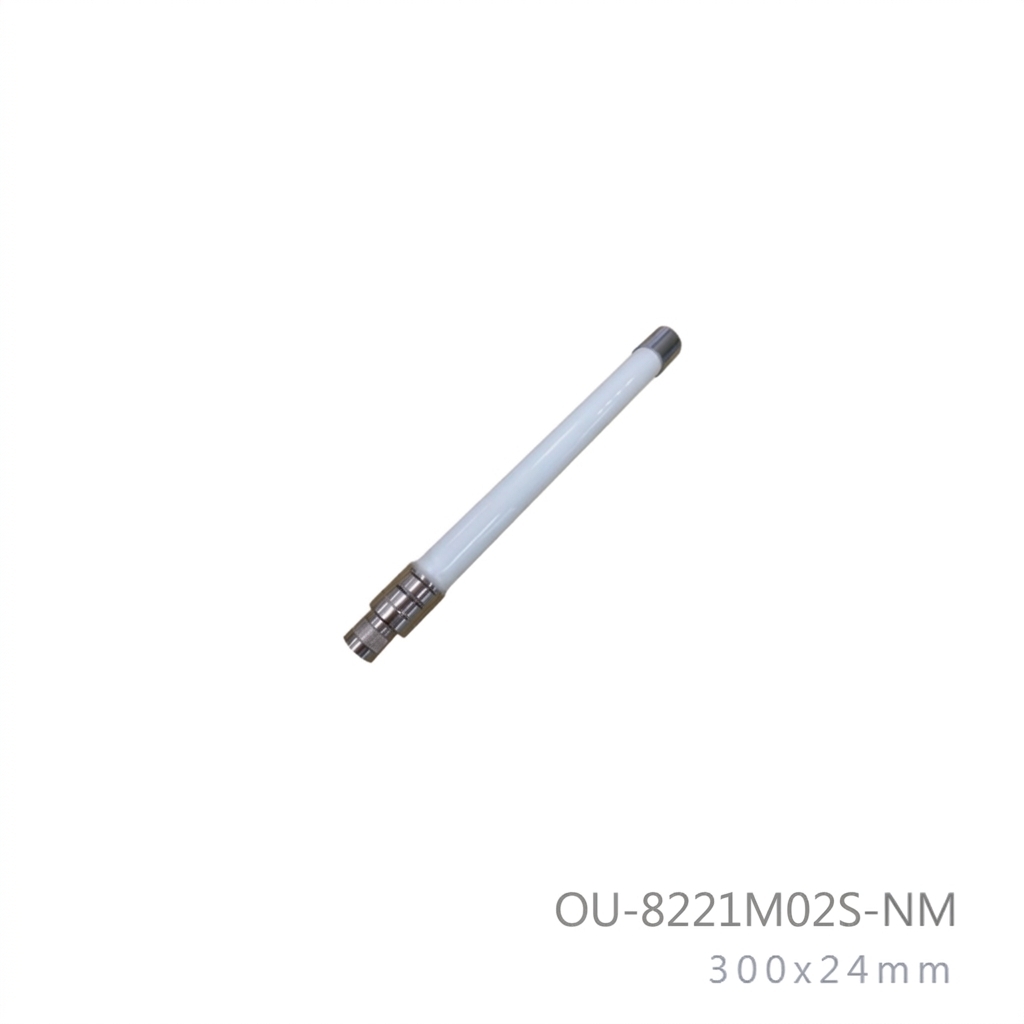

Model No: OU-8221M02S-NM

Datasheet:Download

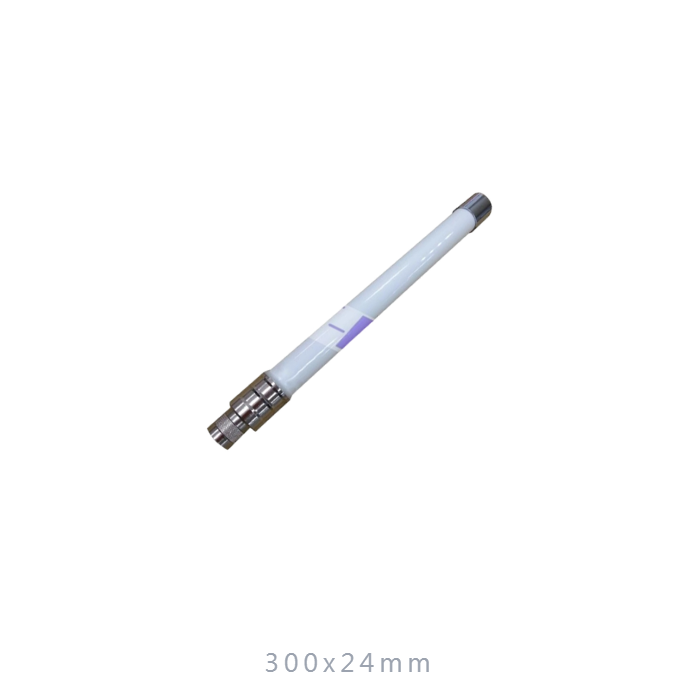

  • Dimension : 300x24mm
  • Weight : 180g
  • Connector : N-Male
  • -3dB Beamwidth : Horz.360 deg Vert.73 deg/ Vert. 47 deg
INQUIRY

Applications:

  • 880MHz to 960MHz Band and 1710MHz to 2170MHz
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

880MHz to 960MHz

1710MHz to 2170MHz

V.S.W.R (Avg)

 2.0 :1

Antenna Type

Collinear

RadiationOmni Directional

Gain (Avg)

2 dBi

Polarization

Vertical

Maximum Power

150 Watts

Vertical Beam-with

57 Deg

Horizontal Beam-with

360 Deg

Impedance

50 Ohm

Antenna Design

 Dipole Array

Internal Material

Copper

Connector

N-Male

Length (MAX)

300mm

Diameter (MAX)

24mm

Antenna Weight (G.W)

180 g

Accessories (G.W)

3 g

ApplicationIndoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Wind Survival

Greater than 150MPH

Storage Temperature

-20 to +80

Operating Temperature

-20 to +60

Operating Humidity

10%~80% non-condensing
Storage Humidity  5%~80% non-condensing

Safety, Emission and other

RoHS
