860MHz to 870MHz 10dBi Vertical or Horizontal Panel Directional Antenna860MHz to 870MHz 10dBi Vertical or Horizontal Panel Directional Antenna860MHz to 870MHz 10dBi Vertical or Horizontal Panel Directional Antenna

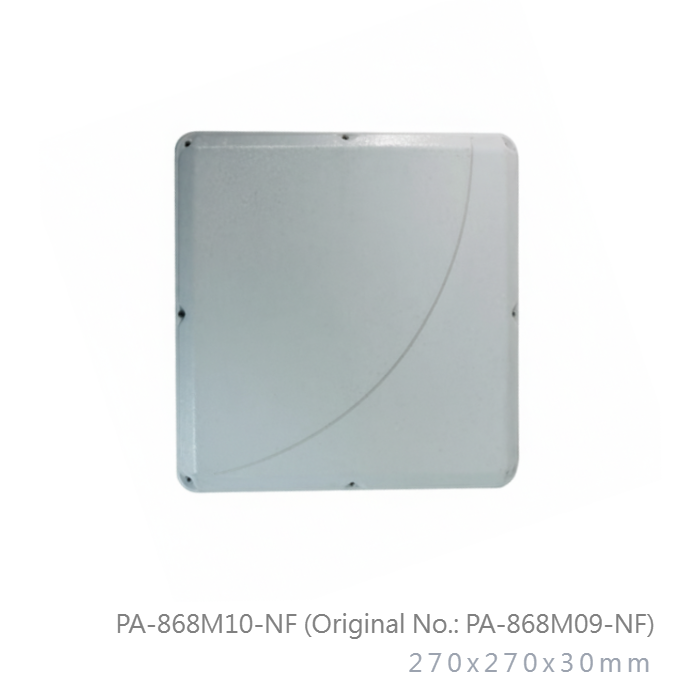

Model No: PA-868M10-NF (Original No.: PA-868M09-NF)

Datasheet:Download

  • Dimension : 270x270x30mm
  • Weight : 700g
  • Connector : N-Female
  • Beam-width : Horz. 55 deg Vert.50 deg
INQUIRY

Application

  • 860 - 870MHz Band for Panel Directional Antenna
  • 10dBi Directional Multipoint applications
  • Point to Point Bridge
  • Public Wireless Hotspot
  • RFID, Wireless Video Systems

Feature:

  • Superior performance
  • Lightweight
  • Good appearance design
  • DC Short lightning protection
  • Outdoor antenna for public hotspots
  • Includes mounting brackets
  • RoHS Compliant

Frequency Range

860MHz - 870MHz

V.S.W.R (MAX)

868MHz: 1.5 :1

860MHz and 870MHz: <2.0

Antenna Type

Patch Type

Radiation

Directional

Gain (Avg)

9 dBi

Polarization

Vertical or Horizontal

Maximum Power

15 Watts

Vertical Beamwidth

50 Deg

Horizontal Beamwidth

55 Deg

FBR

18 dB

Impedance

50 Ohm

Antenna Design

One Patch

Internal Material

FR4 (Taiwan)

Connector

N-Female

Length

270mm

WxH

270x30mm

Antenna Weight

700 g

Accessories

250 g

Application

Indoor / Outdoor

Radome Material

White ABS+UV

Mount Style

Pole Mount

Parts Material

Aluminum

Mounting

Stainless Steel

Mount Adjustment

Mounting 28deg

Wind Survival

Greater than 150MPH

Storage Temperature

-20 to +80

Operating Temperature

-20 to +60

Operating Humidity

10%~80% non-condensing

Safety, Emission and other

RoHS
