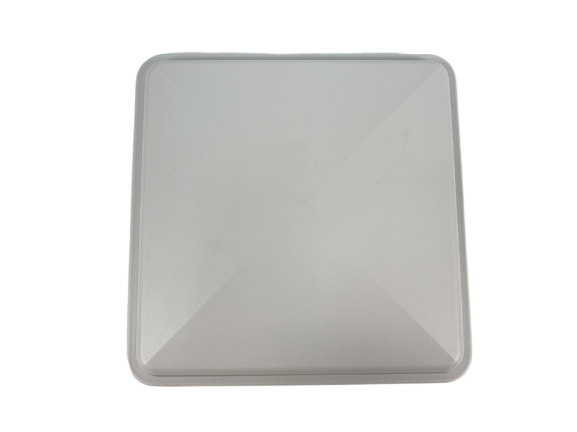

860MHz to 870MHz 11dBi Vertical or Horizontal Panel Directional Antenna860MHz to 870MHz 11dBi Vertical or Horizontal Panel Directional Antenna860MHz to 870MHz 11dBi Vertical or Horizontal Panel Directional Antenna

Model No: PA-868M11-NF

  • Dimension : L600xW300xD35mm
  • Weight : 2 KG
  • Connector : N-Female
  • Beam-width : Horz..58deg Vert.38deg
INQUIRY

Applications

  • 860MHz - 870MHz Frequency Band
  • IEEE 802.22 WRAN
  • Point to Point Bridge
  • Multipoint Application
  • Bluetooth
  • Public Wireless Hotspot
  • Wireless Video Systems

Features

  • Superior performance
  • Lightweight
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is an aluminum
  • Outdoor antenna for public hotspots
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

860MHz - 870MHz

V.S.W.R (MAX)

868MHz: 1.5 :1

860MHz and 870MHz: <2.0

Antenna Type

Patch Type

RadiationDirectional

Gain (Avg)

11 dBi

Polarization

Vertical or Horizontal

Maximum Power

15 Watts

Vertical Beam-width

38 Deg

Horizontal Beam-width

58 Deg

F / B-18 dB

Impedance

50 Ohm

Antenna Design

Patch Array(1x2)

Internal Material

FR4(Taiwan)

Implant resistanceDC Ground

Connector

N-Female

Length x Width(MAX)

600 x 300mm

Diameter (MAX)

35mm

Antenna Weight (G.W)

1700 g

Accessories (G.W)

300 g

ApplicationIndoor / Outdoor

Radome Material

White ABS

Mount StylePole Mount

Parts Material

Aluminum

MountingStainless Steel
Mount Adjustment+- 28deg

Wind Survival

Greater than 150MPH

Storage Temperature-20 to +80
Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity

5%~80% non-condensing

Safety, Emission and other

CE, FCC, RoHS
