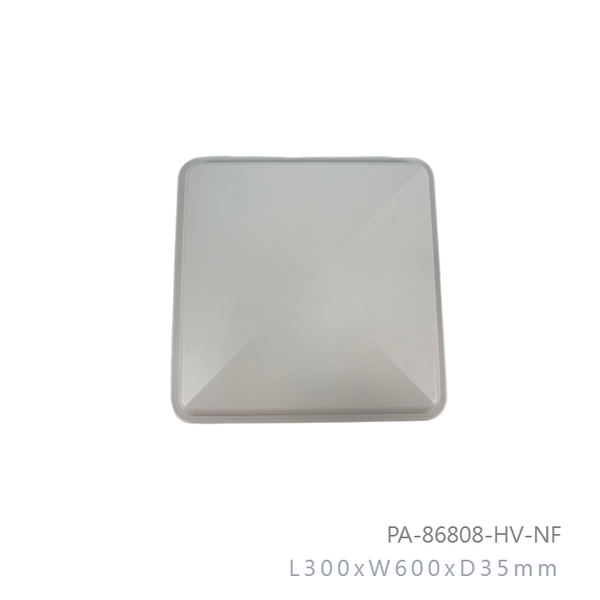

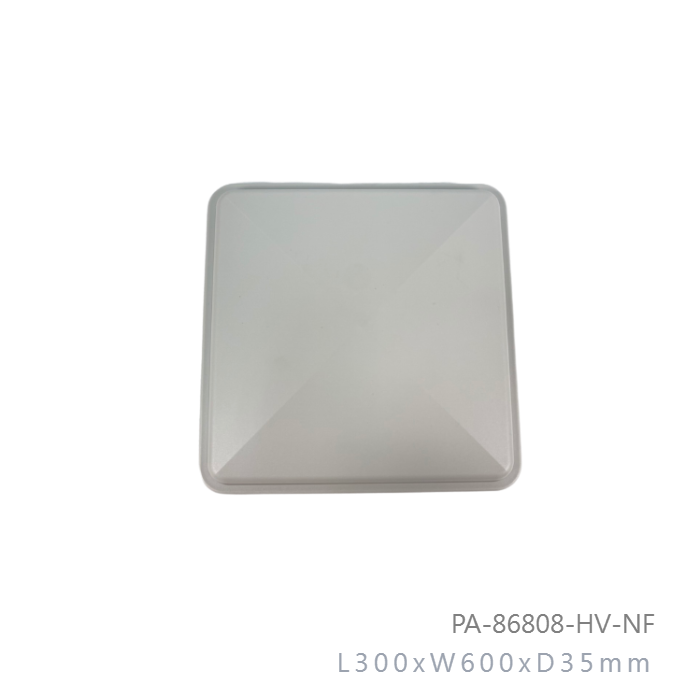

860MHz to 870MHz 8dBi Vertical and Horizontal Dual Polarization Panel Directional Antenna860MHz to 870MHz 8dBi Vertical and Horizontal Dual Polarization Panel Directional Antenna860MHz to 870MHz 8dBi Vertical and Horizontal Dual Polarization Panel Directional Antenna

Model No: PA-86808-HV-NF

  • Dimension : L300xW600xD35mm
  • Weight : 2.1 KG
  • Connector : N-Female x 2
  • Beam-width : Eleva: 70deg Azimu.68deg
INQUIRY

Applications

  • 860MHz to 870MHz Band
  • Directional and multipoint applications

Features

  • Superior performance
  • Lightweight
  • All-weather operation
  • DC Short lightning protection
  • Vertical Installation
  • Including tilt and swivel mast mounting kit

Frequency Range

860MHz - 870MHz

V.S.W.R (MAX)

868MHz: 1.5 :1

860MHz and 870MHz: <2.0

Antenna Type

Patch Type

Radiation Directional

Gain (Avg)

8 dBi

Polarization

Vertical and Horizontal

Maximum Power

15 Watts

Azimuth Beam-width

68 Deg

Elevation Beam-width

70 Deg

Sidelobes Level -12 dB

Impedance

50 Ohm

Antenna Design

Two Patch

Internal Material

FR4(Taiwan)

Implant resistance 10K Ohm

Connector

N-Female x 2

Length x Width(MAX)

300 x 600 mm

Diameter (MAX)

35mm

Antenna Weight (G.W)

1800 g

Accessories (G.W)

350 g

Application Indoor / Outdoor

Radome Material

White ABS

Mount Style Pole Mount

Parts Material

Aluminum

Mounting Stainless Steel
Mount Adjustment +- 28deg

Wind Survival

Greater than 150MPH

Storage Temperature -20 to +80
Operating Temperature -20 to +60
Operating Humidity 10%~80% non-condensing
Storage Humidity

5%~80% non-condensing

Safety, Emission and other

CE, FCC, RoHS
