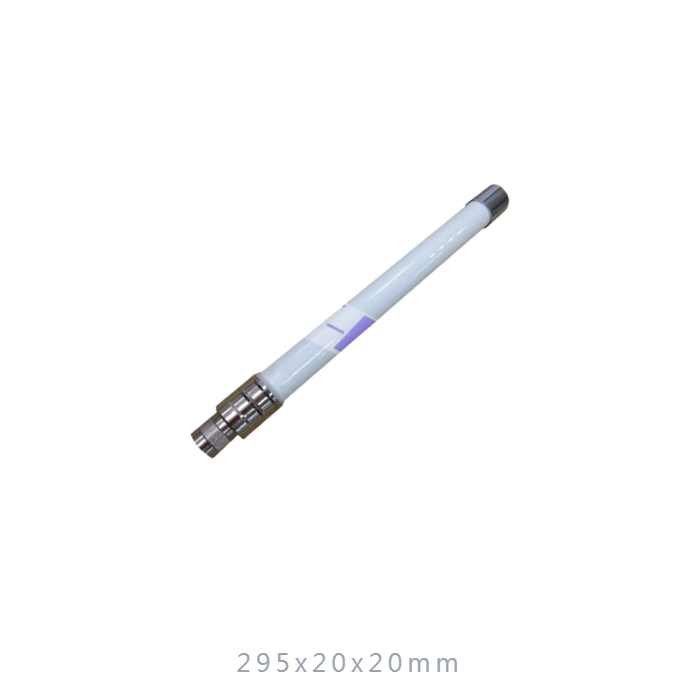

868MHz 3dBi Mini Omni Directional Outdoor Antenna (N-Male)868MHz 3dBi Mini Omni Directional Outdoor Antenna (N-Male)868MHz 3dBi Mini Omni Directional Outdoor Antenna (N-Male)

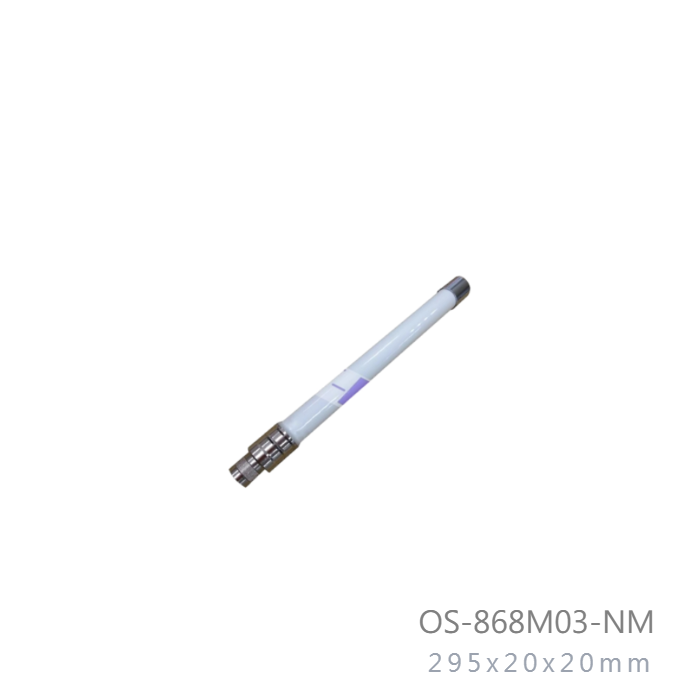

Model No: OS-868M03-NM

Datasheet:Download

  • Dimension : 295x20x20mm
  • Weight : 180g
  • Connector : N-Male
  • Beam-width : Horz.360 deg Vert.110 deg
INQUIRY

Applications:

  • 860MHz to 870MHz Frequency Band
  • IEEE 802.22 WRAN
  • Point to Point Bridge
  • Multipoint Application
  • Bluetooth
  • Public Wireless Hotspot
  • Wireless Video Systems

Features:

  • Superior performance
  • Lightweight
  • Good appearance designs
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public Hot spots
  • Includes tilt and swivel mast mount brackets
  • RoHS Compliant

Frequency Range

860MHz to 870MHz

V.S.W.R (MAX)

868MHz: 1.5 :1

860MHz and 870MHz: <2.0

Antenna Type

Collinear

RadiationOmni Directional

Gain (MAX)

3 dBi

Polarization

Vertical

Maximum Power

100 Watts

Vertical Beam-width

110 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

1/4 Wavelength Dipole

Internal Material

Copper

Connector

N-Male

Length (MAX)

295mm

Diameter (MAX)

24mm

Antenna Weight (G.W)

180 g

Accessories (G.W)

3g

ApplicationIndoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Copper

Wind Survival

Greater than 150MPH

Storage Temperature

-20 to +80

Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity5%~80% non-condensing

Safety, Emission and other

 RoHS
