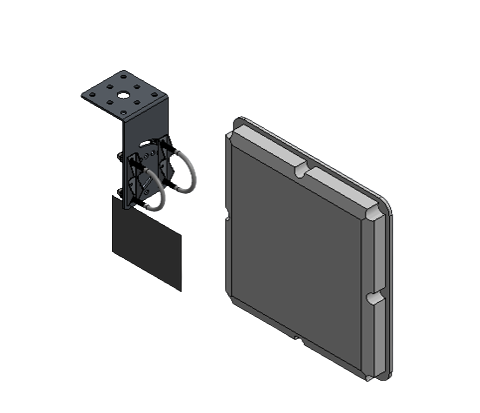

868MHz 8 dbi RHCP Panel Directional Outdoor Antenna, N-Female connector868MHz 8 dbi RHCP Panel Directional Outdoor Antenna, N-Female connector868MHz 8 dbi RHCP Panel Directional Outdoor Antenna, N-Female connector

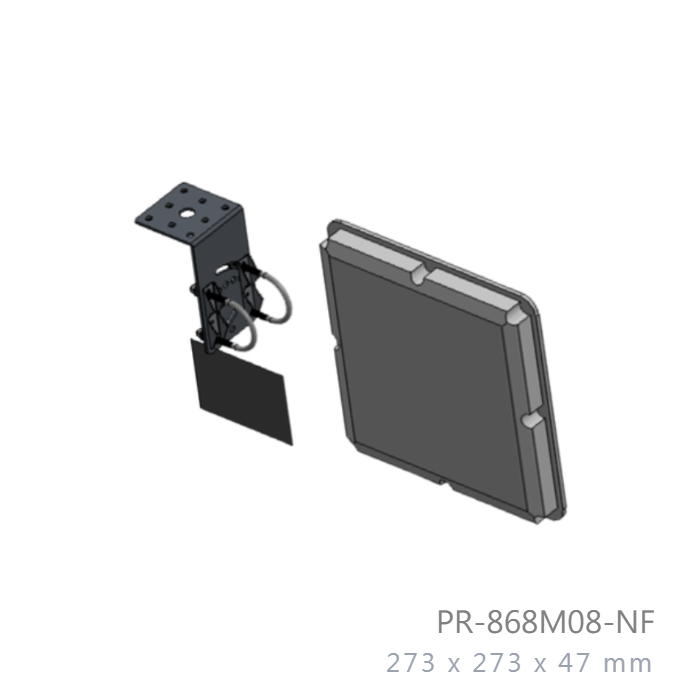

Model No: PR-868M08-NF

Datasheet:Download

  • Model: PR-868M08-NF
  • LxWxH: 273x273x47mm
  • Connector: N-Female
  • Styling: Patch
INQUIRY

Applications:

  •  860MHz to 870MHz 8dBi RHCP Circular polarization Panel Directional Antenna
  • Directional and multipoint applications

Feature:

  • Superior performance
  • Compact and lightweight
  • Easy to install
  • Good appearance design
  • RoHS Compliant

Frequency Range

840 MHz to 880 MHz

 V.S.W.R (MAX)

1.5:1

Antenna Type

RHCP panel

Radiation

Directional

Gain (AVG)

8 dBi

Polarization

RHCP

Maximum Power

15

Horizontal Beamwidth (AVG)

67 deg

Impedance

50 Ohm

Antenna Design

Patch

Connector

N-Female

Size

273x273x47mm

Weight

926 g

Application

Outdoor/ Indoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style

Pole Mount / Wall Mount

Mounting

Stainless Steel

Wind Survival

Greater then 150MPH

Storage Temperature

-20 to +80

Operating Temperature

-20 to +60

Operating Humidity

10%~80% non-condensing

Storage Humidity

5%~80% non-condensing

Safety, Emission and other

CE, FCC, RoHS
