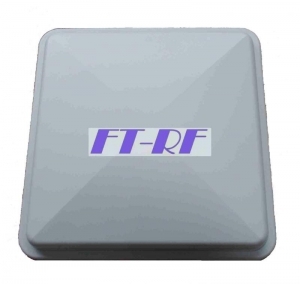

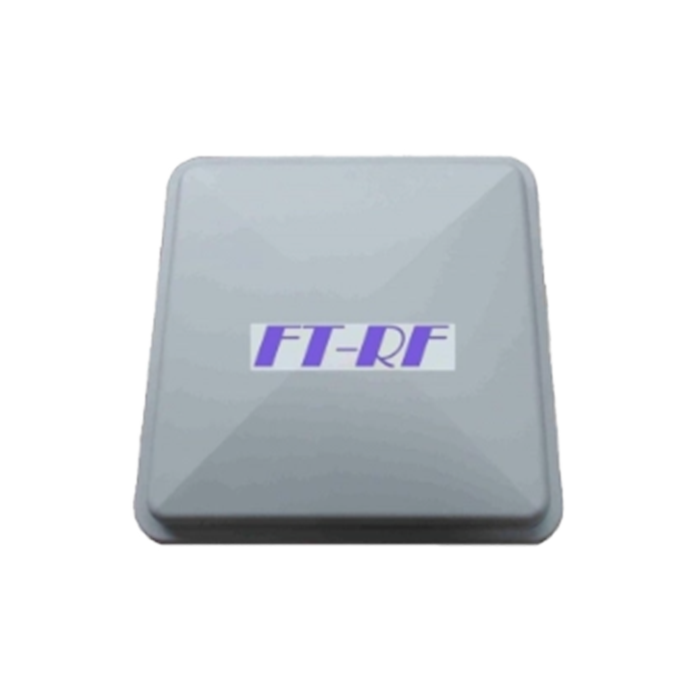

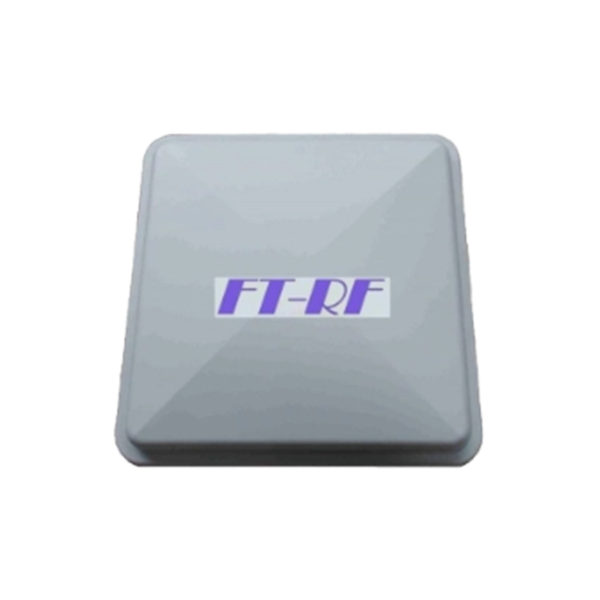

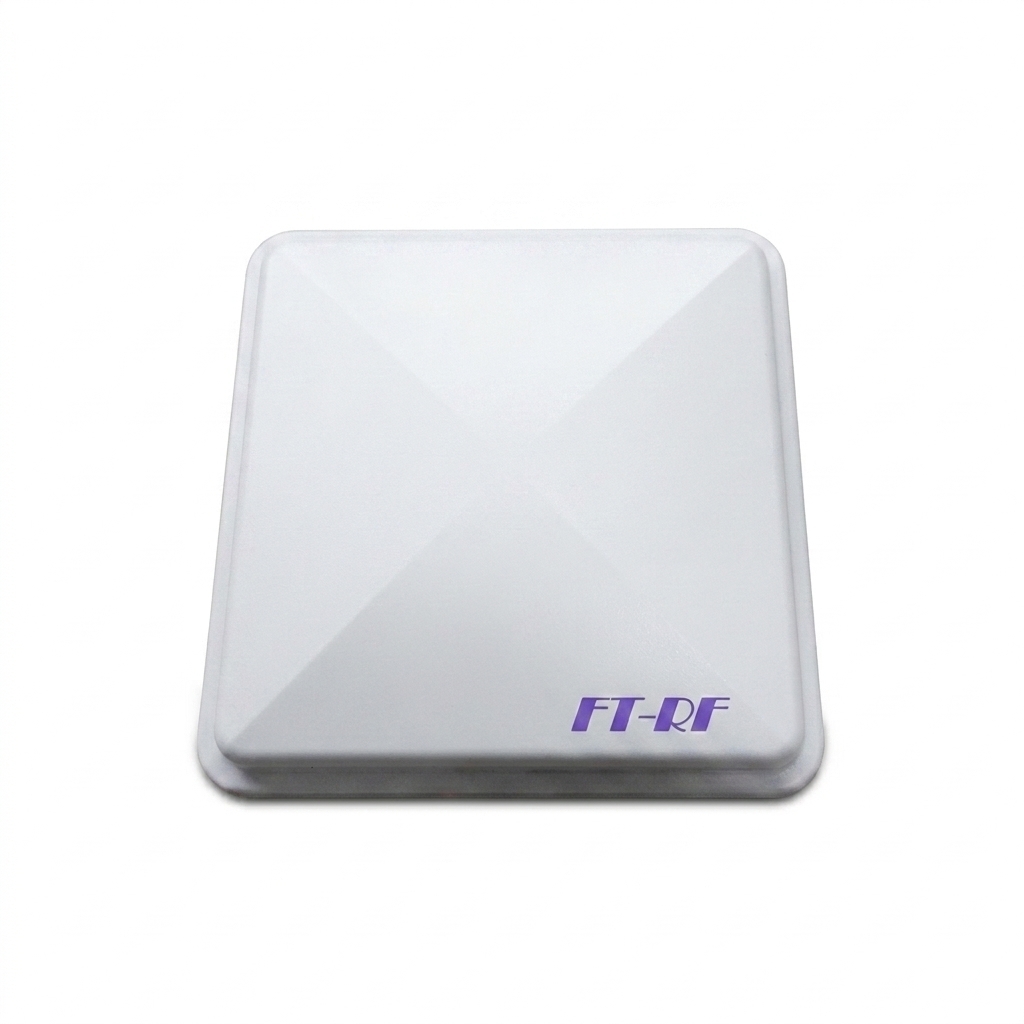

860MHz to 870MHz 8dBi Vertical or Horizontal Panel Directional Antenna860MHz to 870MHz 8dBi Vertical or Horizontal Panel Directional Antenna860MHz to 870MHz 8dBi Vertical or Horizontal Panel Directional Antenna

Model No: PA-868M08-NF

  • Dimension : 230x230x25mm
  • Weight : 500g
  • Connector : N-Female
  • Beam-width : Horz.70 deg Vert.58 deg
INQUIRY

Application

  • 868 MHz Panel Antenna
  • 8dBi Directional Multipoint applications
  • Point to Point Bridge
  • Public Wireless Hotspot
  • RFID, Wireless Video Systems

Feature:

  • Superior performance
  • Lightweight
  • Good appearance design
  • DC Short lightning protection
  • Outdoor antenna for public hotspots
  • Includes mounting brackets
  • RoHS Compliant

Length x Width x Height

230 x 230x25mm

Antenna Weight

500 g

Accessories

250 g

Application Indoor / Outdoor

Radome Material

White ABS+UV

Mount StylePole Mount

Parts Material

Aluminum

MountingStainless Steel
Mount Adjustment +- 28deg

Wind Survival

Greater than 150MPH

Storage Temperature-20 to +80
Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity

5%~80% non-condensing

Safety, Emission and other

RoHS
