890MHz to 960MHz 2dBi Vertical Omni Directional Outdoor Antenna890MHz to 960MHz 2dBi Vertical Omni Directional Outdoor Antenna890MHz to 960MHz 2dBi Vertical Omni Directional Outdoor Antenna

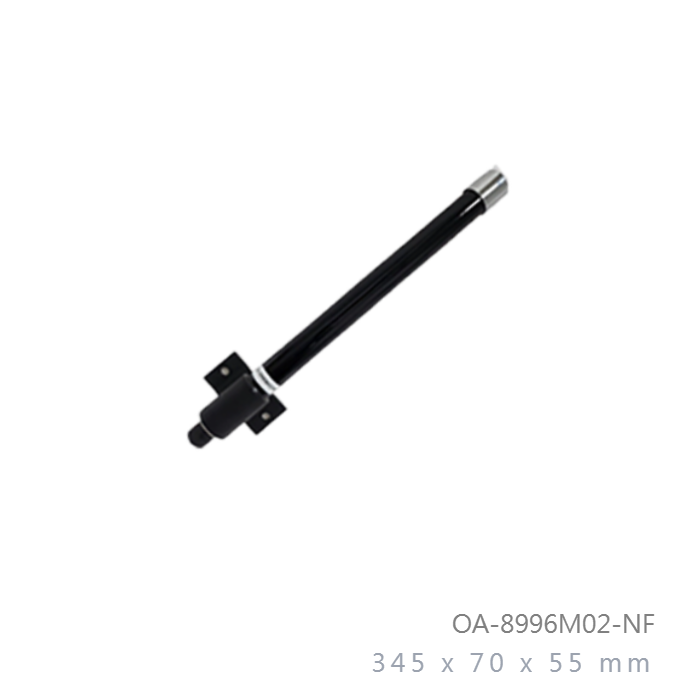

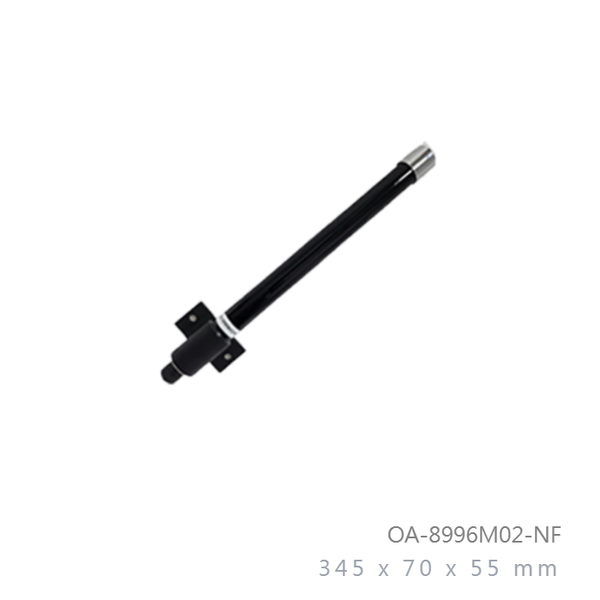

Model No: OA-8996M02-NF

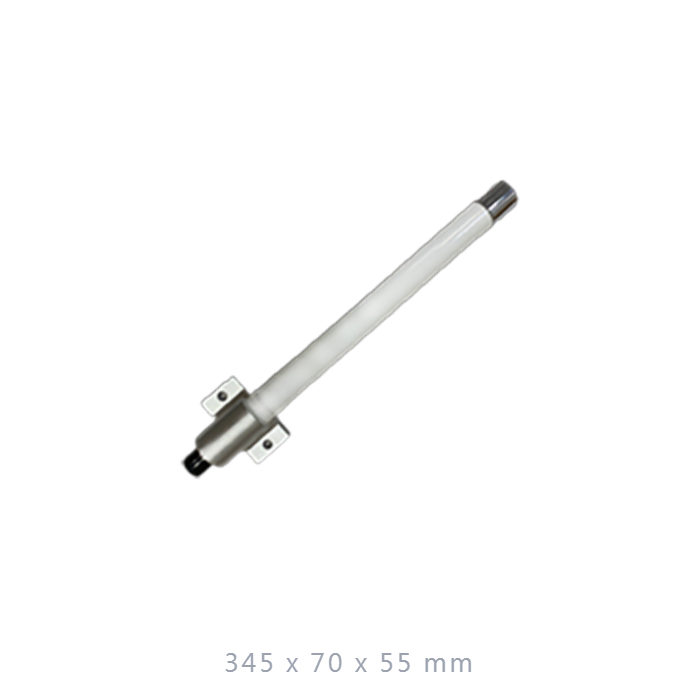

  • Dimension : 345x70x50mm
  • Weight : 340g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.77 deg
INQUIRY

Electrical Specs

Frequency Range

890MHz - 960MHz

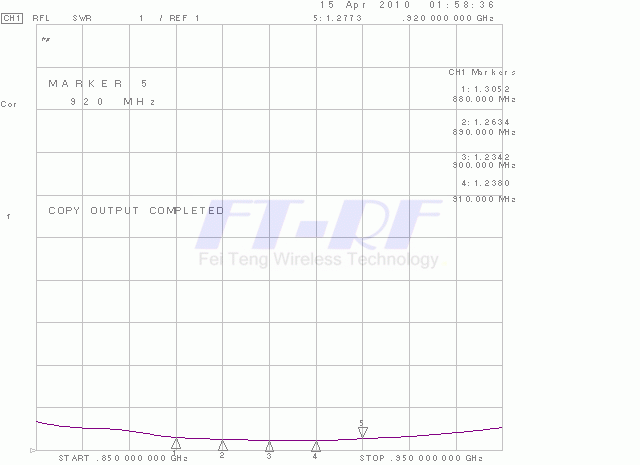

V.S.W.R (MAX)

1.5 :1

Antenna Type

Collinear

Radiation
Omni Directional

Gain (MAX)

2 dBi

Polarization

Vertical

Maximum Power

120 Watts

Vertical Beam-width

77 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Mechanical Specs

Length (MAX)

345 mm

Diameter

70 x 55mm

Antenna Weight

340 g

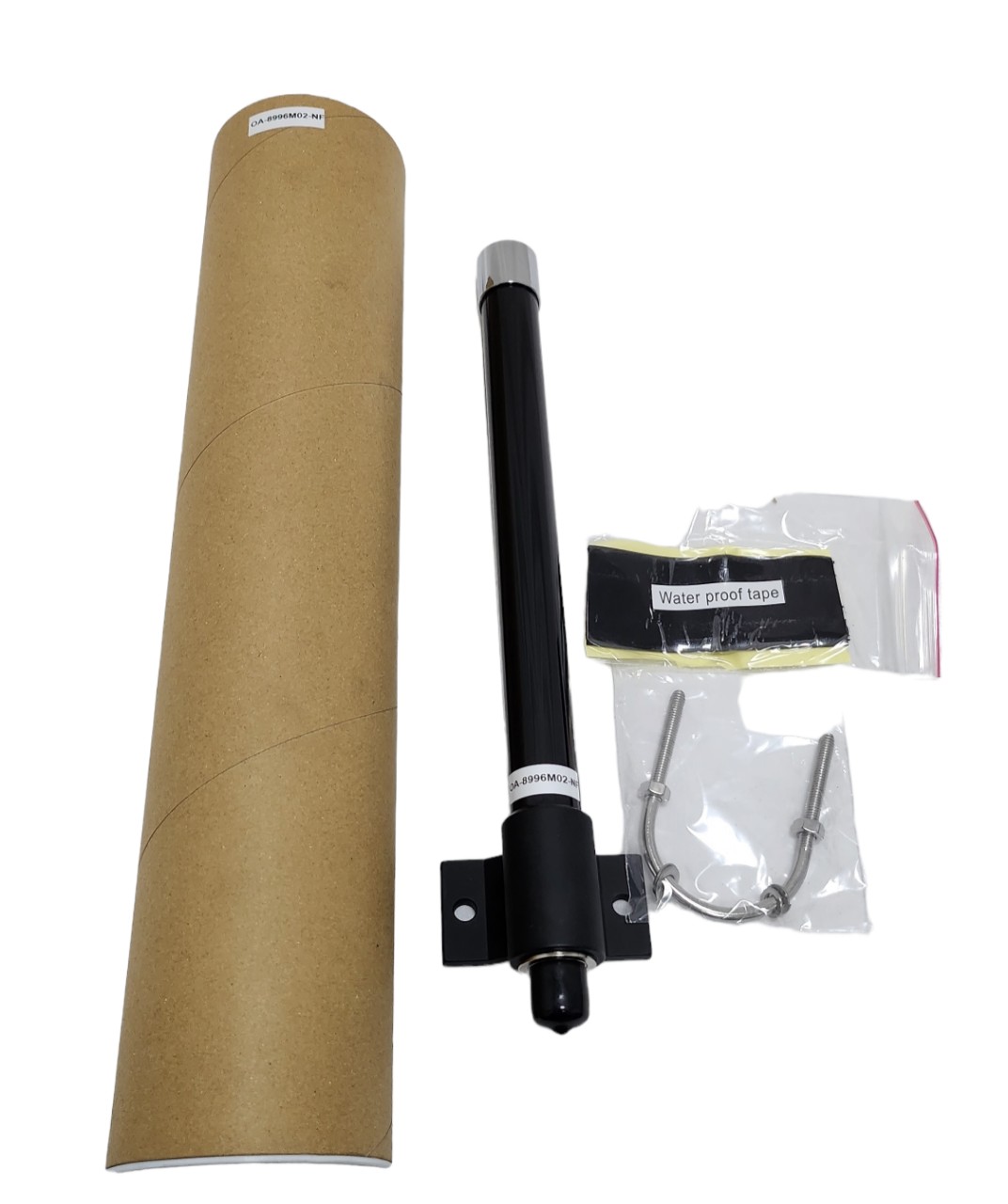

Accessories

70 g

Application
Indoor / Outdoor
(Outdoor Antenna)

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style
Pole Mount / Wall Mount
Pole Mounting
32mm to 45mm
Mounting
Stainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80

Operating Temperature
-40 to +60
Operating Humidity
10%~90% non-condensing
Storage Humidity
5%~90% non-condensing

Safety, Emission and other

CE, FCC, RoHS
