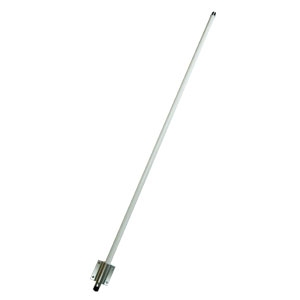

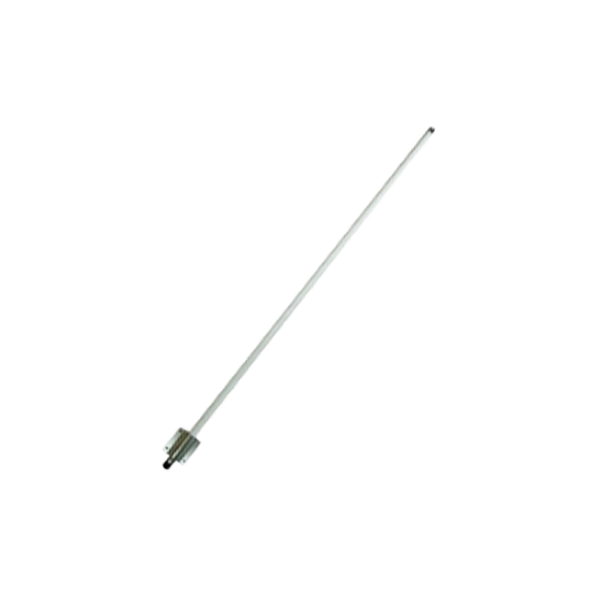

902 to 928MHz 7dBi Omni Directional Outdoor Antenna (US915 LoRa Antenna)902 to 928MHz 7dBi Omni Directional Outdoor Antenna (US915 LoRa Antenna)902 to 928MHz 7dBi Omni Directional Outdoor Antenna (US915 LoRa Antenna)

Model No: OA-915M07-NF

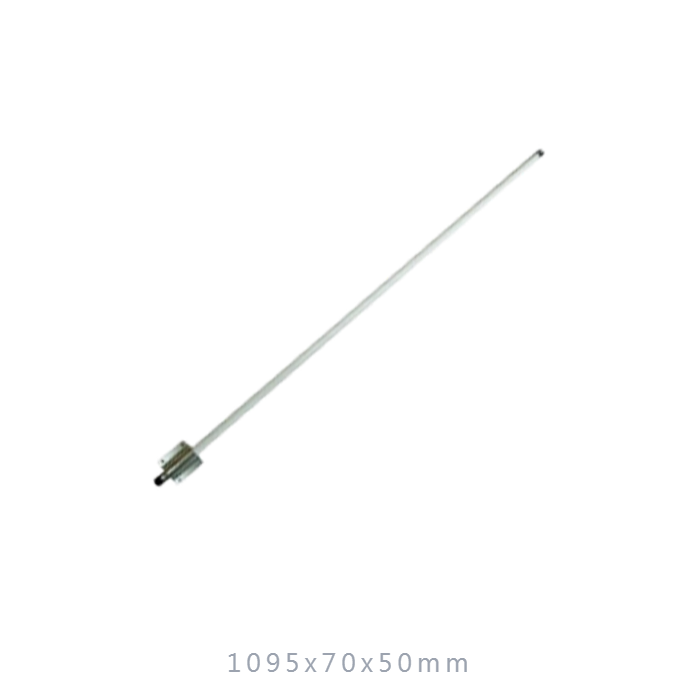

  • Dimension : 1095x70x50mm
  • Weight : 860g
  • Connector : N-Female
  • Beam-with : Horz.360 deg Vert.20 deg
INQUIRY

Applications:

  • 902 to 928MHz 7dBi Omni Directional Outdoor Antenna (US915 LoRa Antenna)
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

902MHz to 928MHz

V.S.W.R (MAX)

 915MHz: 1.5 :1

902MHz and 928MHz: <2.0

Antenna Type

Collinear

RadiationOmni Directional

Gain (MAX)

7 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-with

20 Deg

Horizontal Beam-with

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Length (MAX)

1095+/-5 mm

Diameter (MAX)

70 x 50mm

Antenna Weight (G.W)

 860 g

Accessories (G.W)

70 g

ApplicationIndoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount StylePole Mount / Wall Mount
MountingStainless Steel

Wind Survival

Greater then 150MPH

Storage Temperature

-20 to +80

Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity5%~80% non-condensing

Safety, Emission and other

CE, FCC, RoHS
