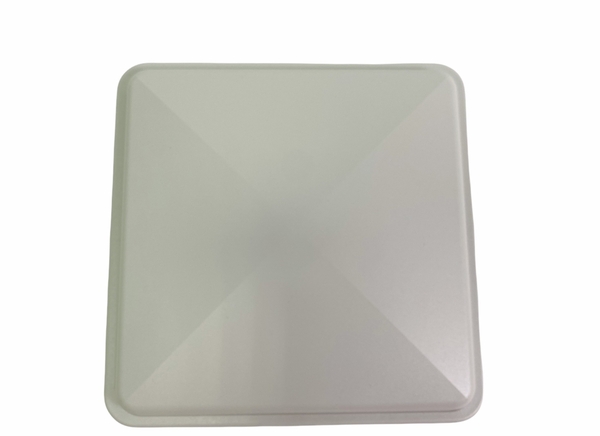

902 MHz to 928 MHz 8dBi 902 MHz to 928 MHz 8dBi RHCP Outdoor Panel Directional Antenna N-Female Connector902 MHz to 928 MHz 8dBi 902 MHz to 928 MHz 8dBi RHCP Outdoor Panel Directional Antenna N-Female Connector902 MHz to 928 MHz 8dBi 902 MHz to 928 MHz 8dBi RHCP Outdoor Panel Directional Antenna N-Female Connector

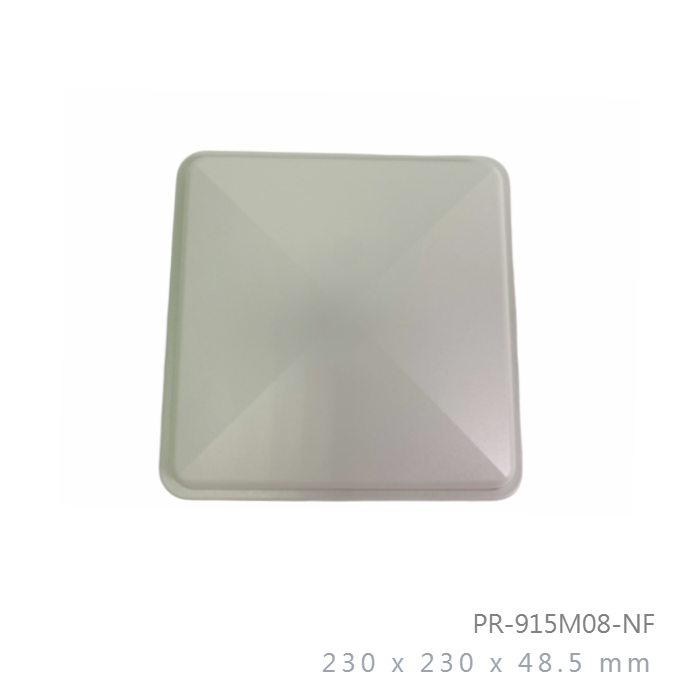

Model No: PR-915M08-NF

  • Dimension : 230x230x48.5mm
  • Weight : 798 g
  • Connector : N-Female
INQUIRY

Application

  • 902 MHz to 928 MHz Band
  • IEEE 802.11 System
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • WiMAX, WLAN, WiFi, 802.11a
  • Wireless Video Systems

Feature

  • Superior performance
  • Lightweight
  • All-weather operation
  • DC Short lightning protection

Frequency Range

902 MHz to 928 MHz

V.S.W.R (MAX)

2.0:1

Antenna Type

Collinear

Radiation

Omni Directional

Gain (MAX)

8 dBi

Polarization

                        RHCP

Maximum Power


Horizontal Beamwidth

75 Deg

FBR

18 dB

Impedance

50 Ohm

Antenna Design

Patch

Internal Material

PCB

Connector

N-Female

Mechanical Specs

Dimension (WxLxH)

230x230x48.5mm

Antenna Weight

795g

Accessories

200g

Application

Indoor / Outdoor

Radom Material

White Fiberglass

Mount Style

Pole Mount / Wall Mount

Mounting

Stainless Steel and Aluminum

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80

Operating Temperature

-40 to +60

Operating Humidity

10%~90% non-condensing

Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS
