Applications:

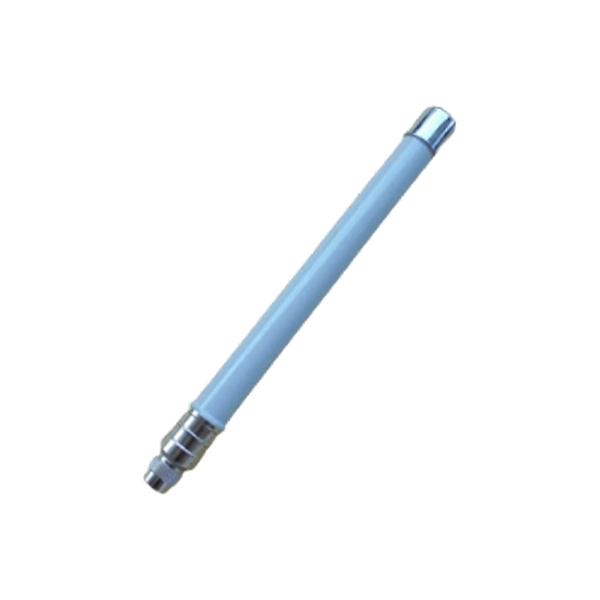

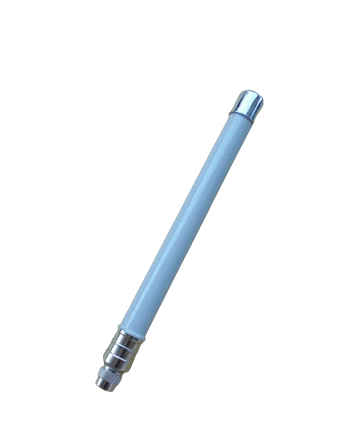

- 902MHz to 928MHz Band - US915 LoRa Antenna
- Omni Directional Multipoint applications
- Point to Point Bridge / MMDS / Hotspot
- Public Wireless
- Wireless Video Systems
Features:
- Superior Performance
- Good appearance design
- DC Short lightning protection
- Support is up and down or so to adjust
- Behind and support is made of aluminum
- Outdoor antenna for public
- Including tilt and swivel mast mounting kit
- RoHS Compliant
Frequency Range | 902MHz to 928MHz |
|---|---|
V.S.W.R (MAX) | 915MHz: 1.5 :1 902MHz and 928MHz: <2.0 |
Antenna Type | Collinear |
| Radiation | Omni Directional |
Gain (MAX) | 3 dBi |
Polarization | Vertical |
Maximum Power | 100 Watts |
Vertical Beam-width | 76 Deg |
Horizontal Beam-width | 360 Deg |
Impedance | 50 Ohm |
Antenna Design | 1/4 Wavelength Dipole |
Internal Material | Copper |
Connector | N-Female |

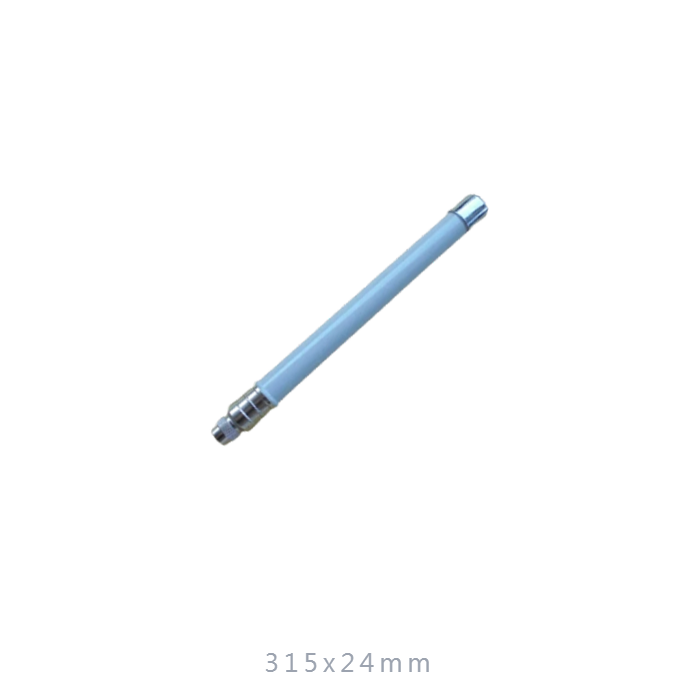

Length | 315+/-5mm |
|---|---|
Diameter | 24mm |
Antenna Weight | 180 g |
Accessories | 3 g |
| Application | Indoor / Outdoor |
Radome Material | White Fiberglass |
Parts Material | Copper |
Wind Survival | Greater than 180MPH |
Storage Temperature | -40 to +80 |
| Operating Temperature | -40 to +60 |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
Safety, Emission and other | RoHS |
