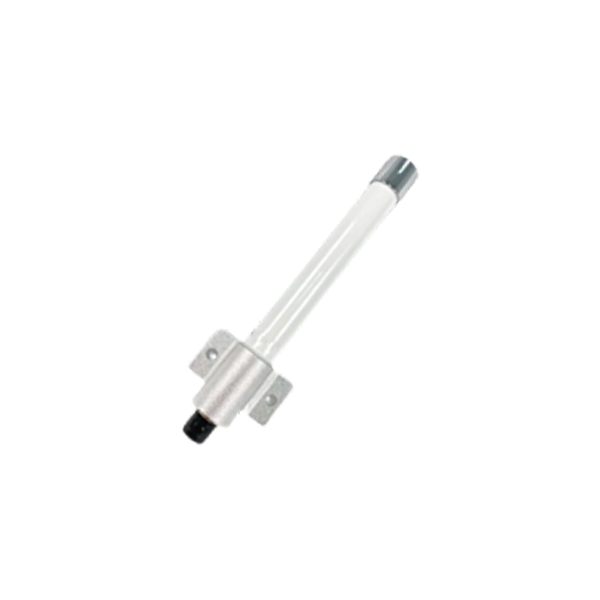

915MHz 3dBi Omni Directional Outdoor Antenna (LoRa US915) N-Female

Model No: OA-915M03-NF

Datasheet:Download

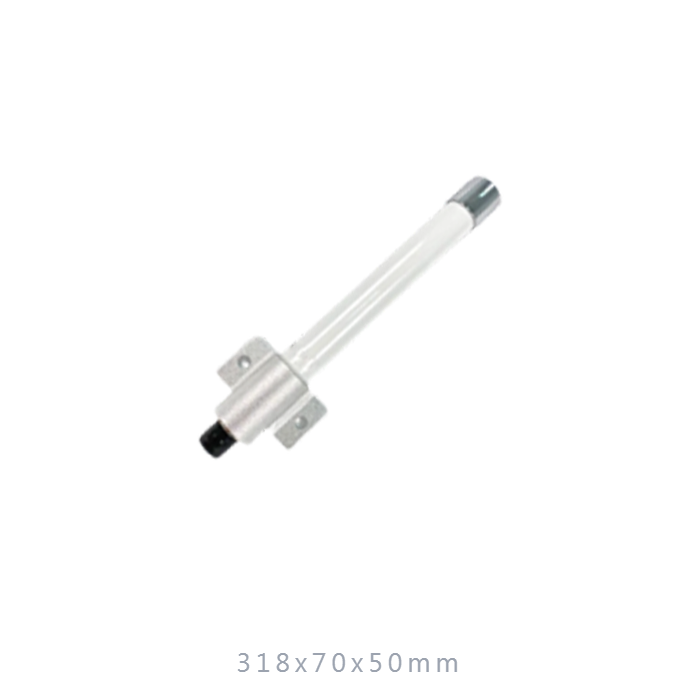

  • Dimension : 318x70x50mm
  • Weight : 274.75g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.72 deg
INQUIRY

Applications:

  • 902MHz to 928MHz Band, US915 N-Female
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliance



Frequency Range

902MHz to 928MHz

V.S.W.R (MAX)

915MHz: 1.5:1

902MHz and 928MHz: <2.0

Antenna Type

Collinear

Gain (MAX)

3 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

72 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female





Length

318mm

Diameter

70 x 55mm

Antenna Weight

274.75 g

Accessories

70 g

Application

Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style

Pole Mount / Wall Mount

Mounting

Stainless Steel U-Type Screw

Wind Survival

Greater than 180MPH

Storage Temperature

-40 to +80

Operating Temperature

-40 to +60

Operating Humidity

10%~90% non-condensing

Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS
