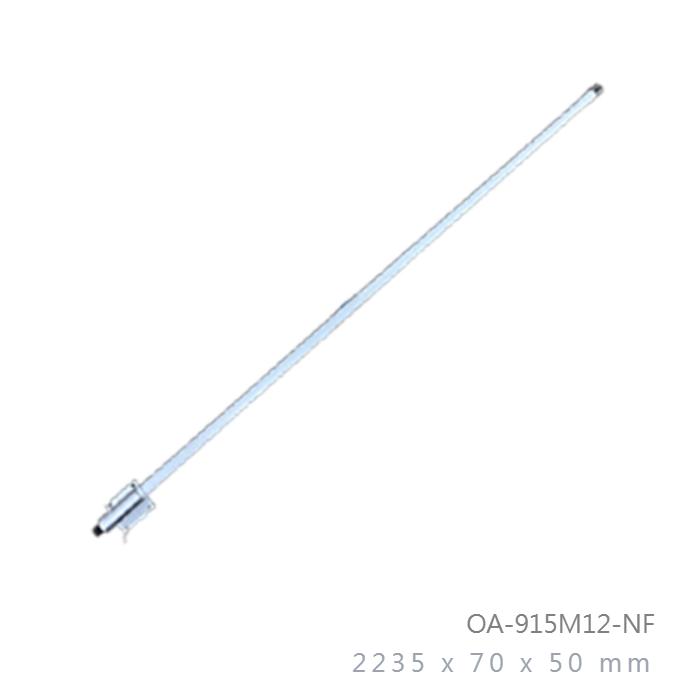

915MHz 12dBi Omni Directional Outdoor Antenna (US 915)915MHz 12dBi Omni Directional Outdoor Antenna (US 915)915MHz 12dBi Omni Directional Outdoor Antenna (US 915)

Model No: OA-915M12-NF

Datasheet:Download

  • Dimension : 2235x70x50mm
  • Weight : 1.5 kg
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert. 7 deg
INQUIRY

Application

  • 900MHz to 930MHz Band (Lora US915)
  • US915, Lora Antenna
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • LoRa helium hotspot

Feature

  • Superior Performance
  • Good design
  • DC Short lightning protection
  • Outdoor antenna for public
  • RoHS Compliant

Frequency Range

900 MHz to 930 MHz

   V.S.W.R (avg)

1.5:1

Antenna Type

Collinear

Gain (Max)

12dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beamwidth

7 Deg

Horizontal Beamwidth

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Connector

N-Female

Dimension (LxWxH)

2235x70x50mm

Antenna Weight

1.5kg

Application

Indoor / Outdoor

Radom Material

White Fiberglass

Parts Material

Aluminum

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80

Operating Temperature

-40 to +60

Operating Humidity

10%~90% non-condensing

Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS
