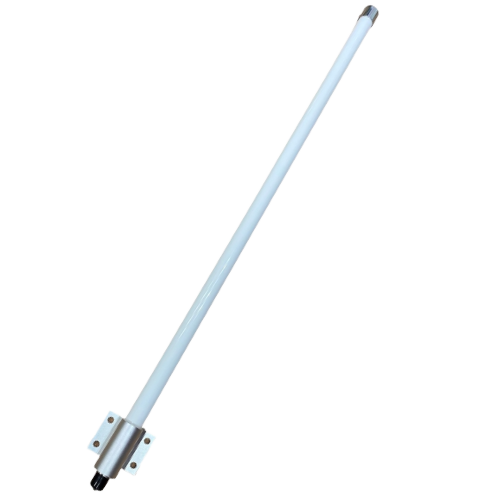

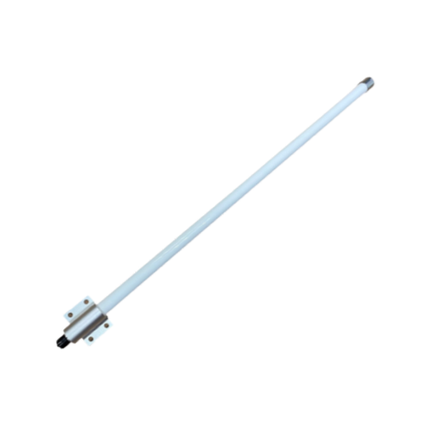

915 MHz 5dBi Omni Directional Outdoor Antenna Spring Designed (AS915)915 MHz 5dBi Omni Directional Outdoor Antenna Spring Designed (AS915)915 MHz 5dBi Omni Directional Outdoor Antenna Spring Designed (AS915)

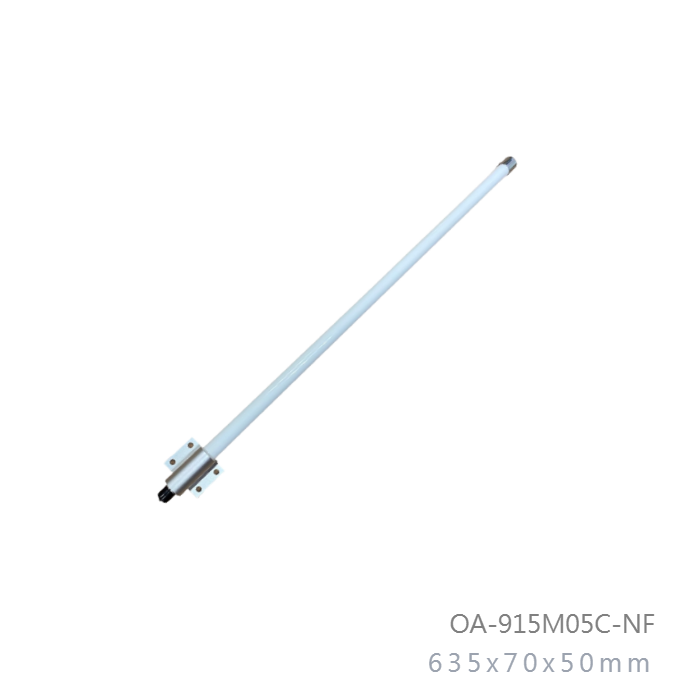

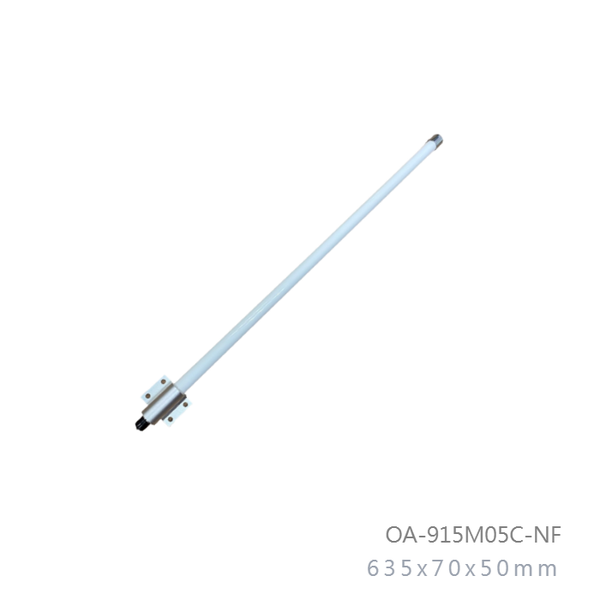

Model No: OA-915M05C-NF

Datasheet:Download

  • Dimension: 635x70x50mm
  • Weight: 0.43 KG
  • Connector: N-Female
  • Beam-width: Horz.360 deg Vert.34 deg
INQUIRY

Applications:

  • 915 MHz 5dBi Omni Directional Outdoor Antenna Spring Designed (US915)
  • US915
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

Frequency Range

902MHz to 928MHz

V.S.W.R (AVG)

2:1

Antenna Type

Collinear

Radiation

Omni Directional

Gain (MAX)

5 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

34 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female


Length (MAX)

635+-30mm

Diameter (MAX)

70 x 50mm

Antenna Weight (G.W)

 443 g

Accessories (G.W)

70 g

Application

Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style

Pole Mount / Wall Mount

Mounting

Stainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-20 to +80

Operating Temperature

-20 to +60

Operating Humidity

10%~80% non-condensing

Storage Humidity

5%~80% non-condensing

Safety, Emission and other

CE, FCC, RoHS
