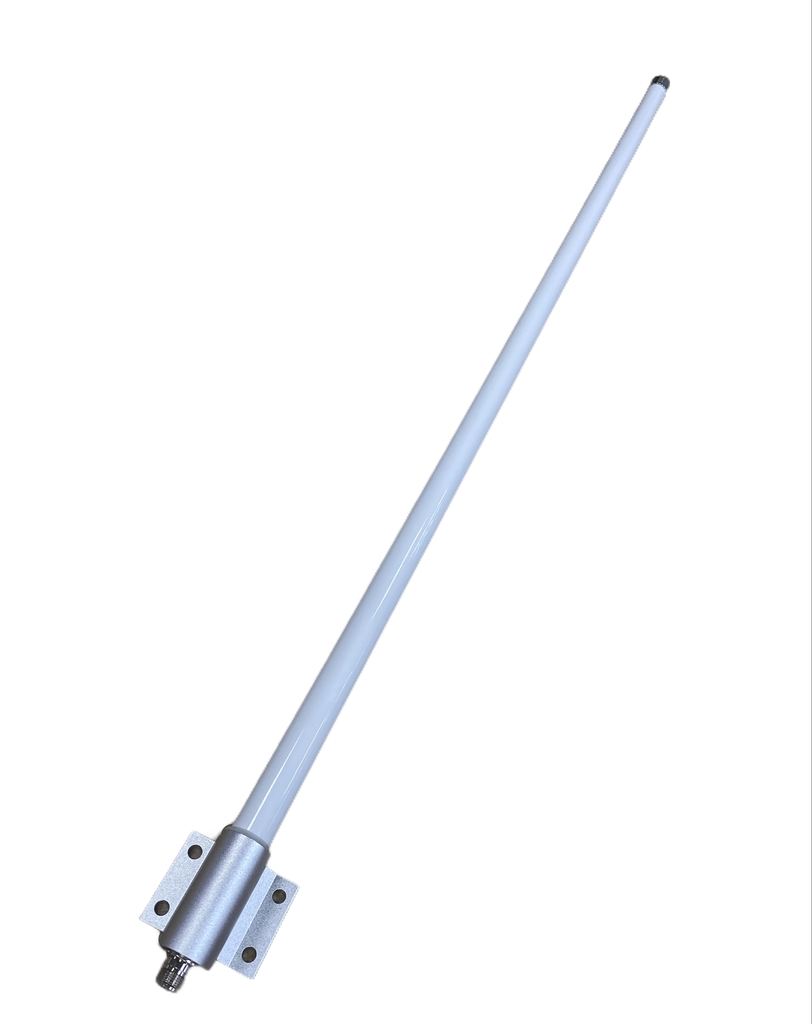

915 MHz 6dBi Omni Directional Outdoor Antenna915 MHz 6dBi Omni Directional Outdoor Antenna915 MHz 6dBi Omni Directional Outdoor Antenna

Model No: OA-915M06-NF

Datasheet:Download

  • Dimension : 1095x70x50mm
  • Weight : 596.90g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.18 deg
INQUIRY

Applications:

  • 902MHz- 928MHz Frequency Band
  • IEEE 802.22 WRAN
  • Point to Point Bridge
  • Multipoint Application
  • Bluetooth
  • Public Wireless Hotspot
  • Wireless Video Systems

Features:

  • Superior performance
  • Lightweight
  • Good appearance designs
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public Hot spots
  • Includes tilt and swivel mast mount brackets
  • RoHS Compliant

Lora antenna OA-915M06-NF antenna operates at frequencies spanning from 902MHz- 928MHz and has a high gain of 6dbi. This antenna is commonly used in point-to-point and point-to-multipoint systems, as well as on vehicles. The horizontal coverage of high gain Omni-directional antennas is large, but the vertical coverage is minimal. The OA-915M06-NF features a horizontal polarization of 360 degrees and a vertical polarization of 18 degrees.

Frequency Range

902MHz to 928MHz

V.S.W.R (MAX)

915MHz: 1.5 :1

902MHz and 928MHz: <2.0

Antenna Type

Collinear

Radiation

Omni Directional

Gain (MAX)

6 dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

18 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Length

1095+/-5 mm

Diameter

70 x 50mm

Antenna Weight

596.90g

Accessories

70 g

Application

Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Aluminum

Mount Style

Pole Mount / Wall Mount

Mounting

Stainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-20 to +80

Operating Temperature

-20 to +60

Operating Humidity

10%~80% non-condensing

Storage Humidity

5%~80% non-condensing

Safety, Emission and other

CE, FCC, RoHS
