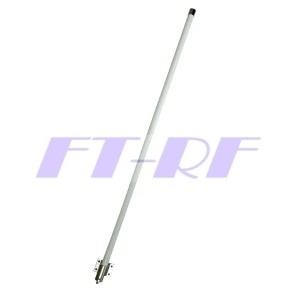

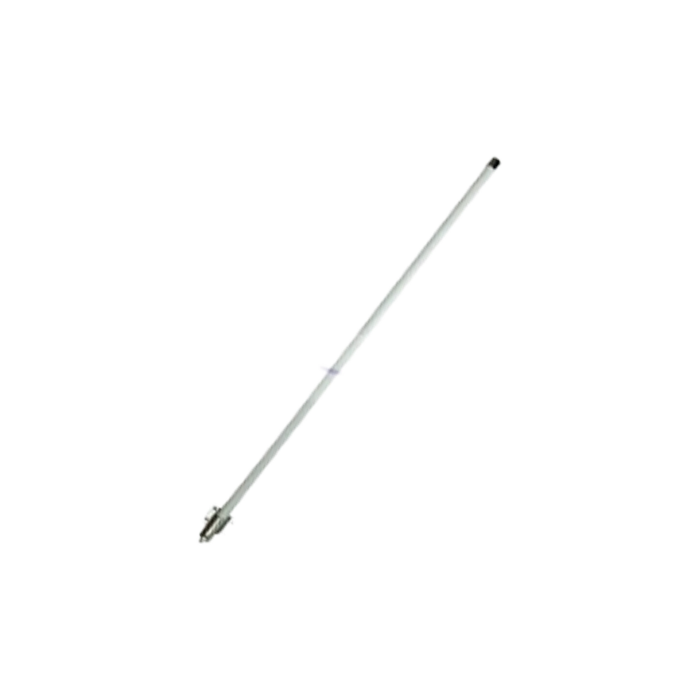

915 MHz 8dBi Omni Directional Outdoor Antenna915 MHz 8dBi Omni Directional Outdoor Antenna915 MHz 8dBi Omni Directional Outdoor Antenna

Model No: OA-915M08-NF

Datasheet:Download

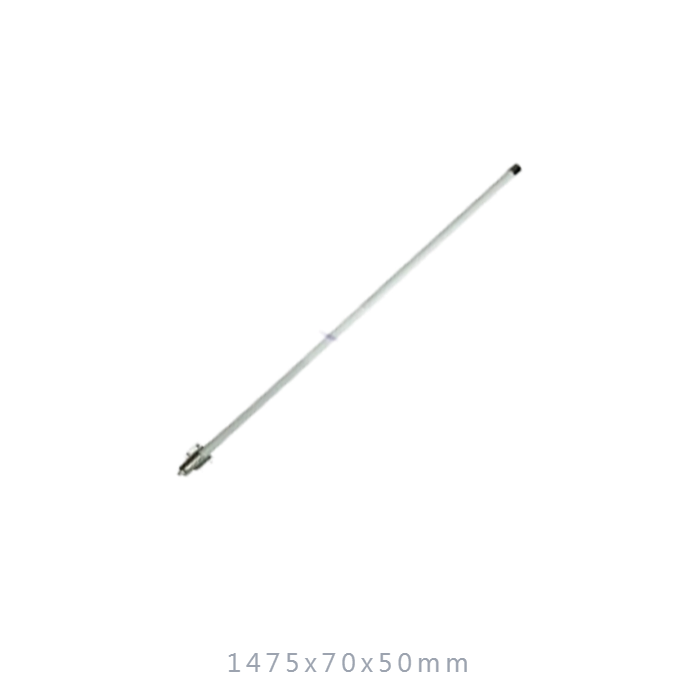

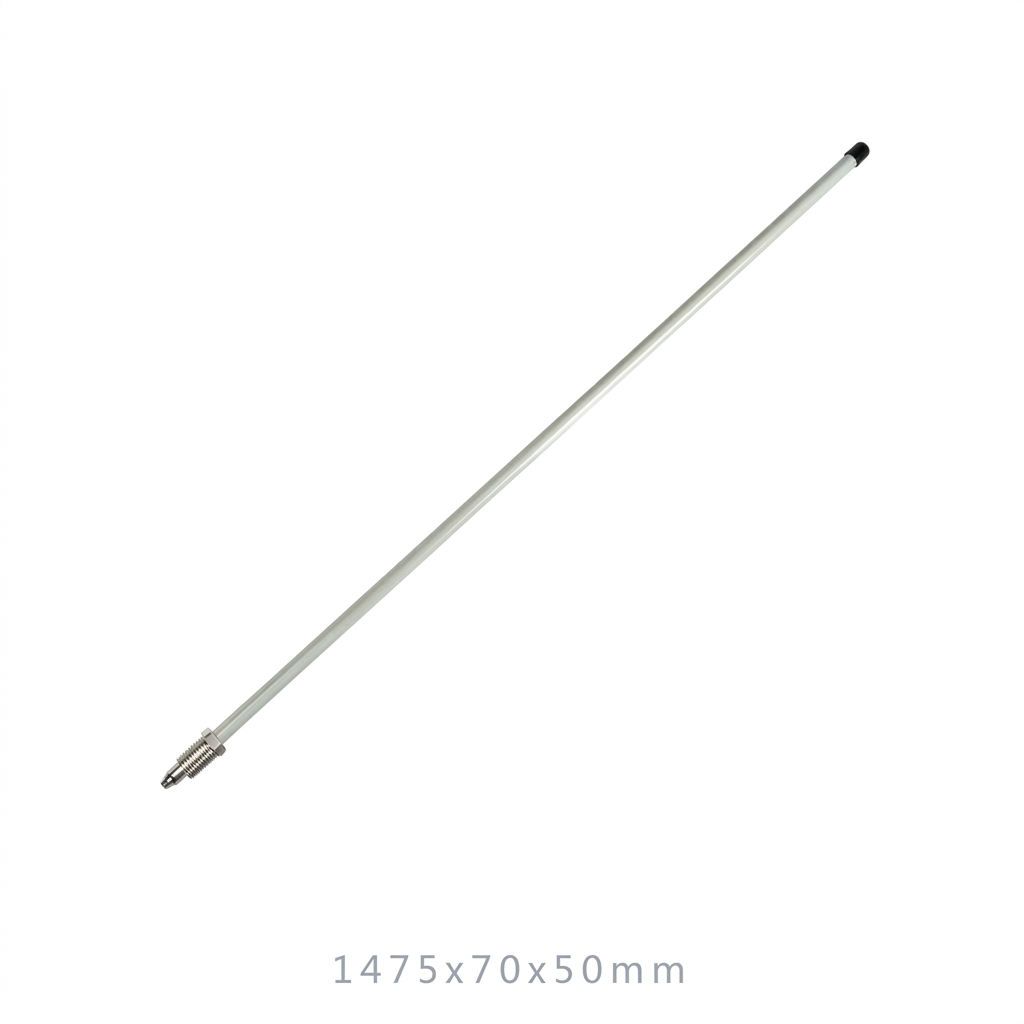

  • Dimension : 1475x70x50mm
  • Weight : 870g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.13 deg
INQUIRY

Applications:

  • 915 MHz 8dBi Omni Directional Outdoor Antenna (US915)
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • Including tilt and swivel mast mounting kit
  • RoHS Compliant

 Frequency Range

900MHz - 930MHz

V.S.W.R (MAX)

915MHz: 1.5 :1

902MHz and 928MHz: <2.0

Antenna Type

Collinear

Radiation

Omni Directional

Gain (MAX)

8dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

14 Deg

Horizontal Beam-width

360Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N-Female

Length

1475+/-5 mm

Diameter

70 x 50mm

Antenna Weight

870 g

Accessories

70 g

Application

Indoor / Outdoor

Radome Material

White Fiberglass

Mount Style

Pole Mount / Wall Mount

Parts Material

Aluminum

Mounting

Stainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-20 to +80

Operating Temperature

-20 to +60

Operating Humidity

10%~80% non-condensing

Storage Humidity

5%~80% non-condensing

Safety, Emission and other

CE, FCC, RoHS
