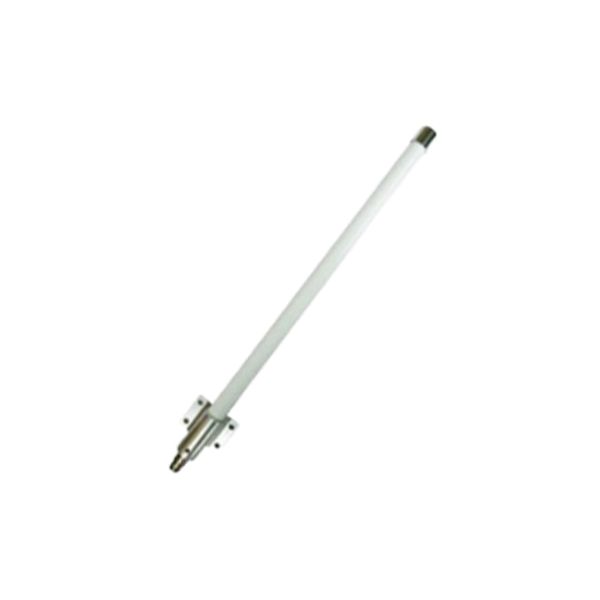

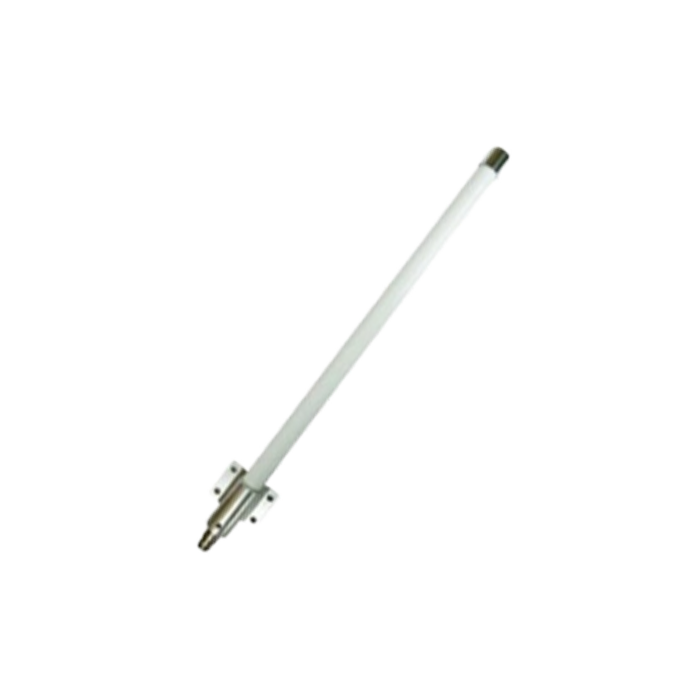

LoRa 915MHz 9dBi Omni Directional Outdoor AntennaLoRa 915MHz 9dBi Omni Directional Outdoor AntennaLoRa 915MHz 9dBi Omni Directional Outdoor Antenna

Model No: OA-915M09-NF

Datasheet:Download

  • Dimension : 1475x70x50mm
  • Weight : 870g
  • Connector : N-Female
  • Beam-width : Horz.360 deg Vert.14 deg
INQUIRY

Applications:

  • 902MHz- 928MHz Frequency Band - LoRa 915MHz
  • IEEE 802.22 WRAN
  • Point to Point Bridge
  • Multipoint Application
  • Bluetooth
  • Public Wireless Hotspot
  • Wireless Video Systems

Features:

  • Superior performance
  • Lightweight
  • Good appearance designs
  • DC Short lightning protection
  • Support is up and down or so to adjust
  • Behind and support is made of aluminum
  • Outdoor antenna for public Hot spots
  • Includes tilt and swivel mast mount brackets

RoHS Compliant

 Frequency Range

902MHz to 928MHz

V.S.W.R (MAX)

915MHz 1.5 :1

902MHz and 928 MHz: <2.0

Antenna Type

Collinear

Radiation

Omni Directional

Gain (MAX)

9dBi

Polarization

Vertical

Maximum Power

50 Watts

Vertical Beam-width

14 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Dipole Array

Internal Material

Cooper

Connector

N-Female


Length (MAX)

1475 +-5 mm

Diameter (MAX)

70x50 mm

Antenna Weight (G.W)

870 g

Accessories (G.W)

70 g

Application

Indoor / Outdoor

Radome Material

White Fiberglass

Mount Style

Pole Mount/ Wall Mount

Parts Material

Aluminum

Mounting

Stainless Steel

Wind Survival

Greater than 150MPH

Storage Temperature

-20 to +80

Operating Temperature

-20 to +60

Operating Humidity

10%~80% non-condensing

Storage Humidity

5%~80% non-condensing

Safety, Emission and other

RoHS
