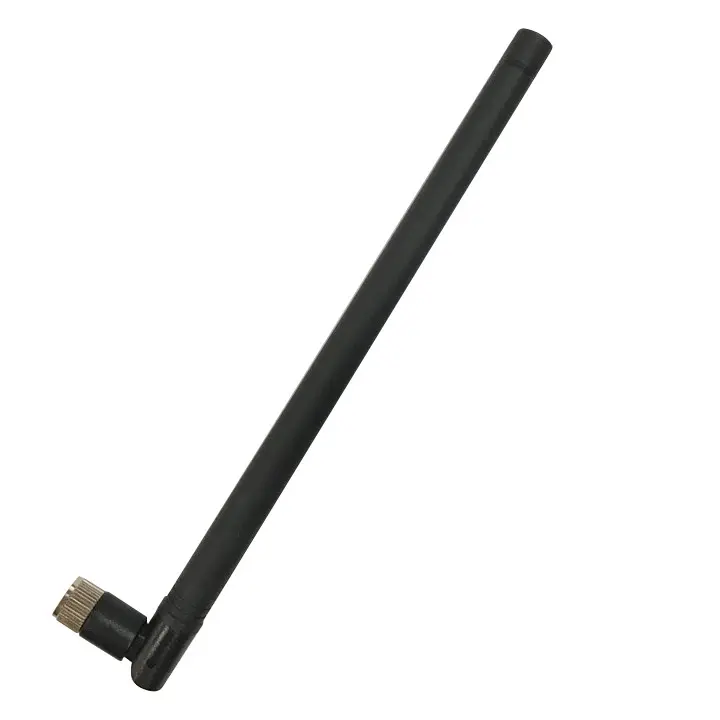

920MHz-960MHz 3dBi indoor Rubber SMA-Male OMNI Directional Antenna920MHz-960MHz 3dBi indoor Rubber SMA-Male OMNI Directional Antenna920MHz-960MHz 3dBi indoor Rubber SMA-Male OMNI Directional Antenna

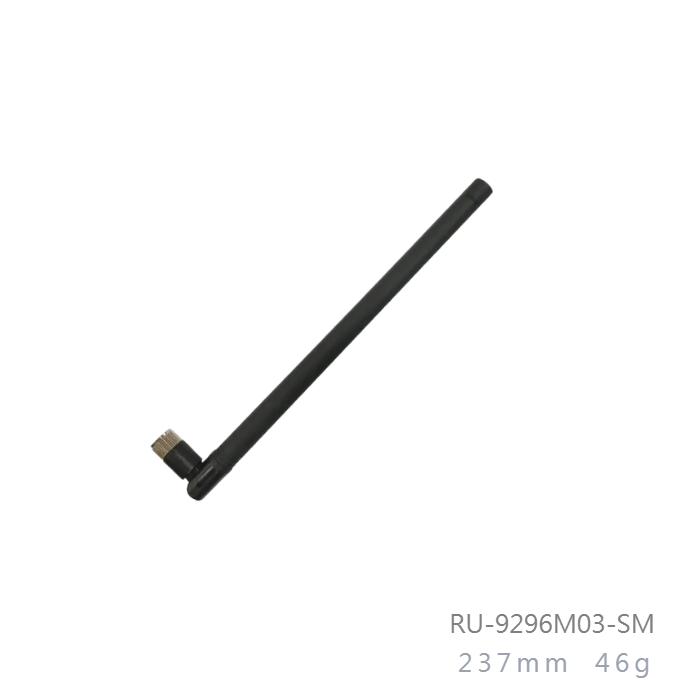

Model No: RU-9296M03-SM

  • Dimension: 237mm
  • Weight: 46g
  • Connector: SMA-Male
  • Beam-width: Horz.360 Deg Vert.68 Deg
INQUIRY

Applications:

  • 920MHz-960MHz 3dbi ISM Band

  • Omni Directional Multipoint applications

  • Bluetooth, Point to Multipoint

  • Public Wireless Hotspot

  • ETC, RFID

  • Wireless Video Systems

Features:

  • Installed for Collinear Vertical Polarization
  • Indoor antenna for public Hot spots

  • RoHS Compliant

Frequency Range

920MHz - 960MHz

V.S.W.R (MAX)

2.0: 1

Antenna Type

Collinear

Radiation Omni Directional

Gain (MAX)

3 dBi

Polarization

Vertical

Maximum Power

5 Watts

Vertical Beam-width

68 Deg

Horizontal Beam-width

360 Deg

Impedance

50 Ohm

Antenna Design

Sleeve Dipole

Internal Material

Copper and Coaxial Cable

Connector

SMA-Male



Length (MAX)

237mm

Diameter (MAX)

12.5mm

Antenna Weight (G.W)

46g

Application

Indoor

Radome Material Rubber

Parts Material

ABS with Copper

Installation Style

180 and 90 Deg rotation

Storage Temperature -5 to +40
Operating Temperature -5 to +40
Operating Humidity

35%~60% non-condensing

Storage Humidity

35%~50% non-condensing

Safety, Emission, and other CE,FCC,RoHS
