923MHz 6dBi Omnidirectional Outdoor Antenna (AS 923)923MHz 6dBi Omnidirectional Outdoor Antenna (AS 923)923MHz 6dBi Omnidirectional Outdoor Antenna (AS 923)

Model No: OA-923M06-NF

Datasheet:Download

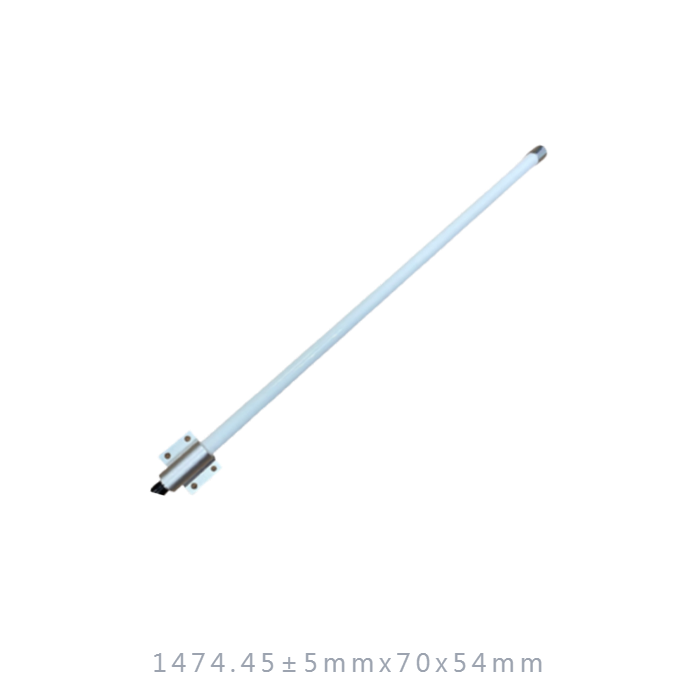

  • Dimension : 1474.45±5mmx70x54mm
  • Weight : 685.61g
  • Connector : N-Female
  • Beamwidth : Horz.360 deg Vert.13 deg
INQUIRY

Applications:

  • 917MHz to 928MHz Band
  • AS923
  • Omni Directional Multipoint applications
  • Point to Point Bridge / MMDS / Hotspot
  • Public Wireless
  • Wireless Video Systems

Features:

  • Superior Performance
  • Good appearance design
  • DC Short lightning protection
  • Behind and support is made of aluminum
  • Outdoor antenna for public
  • RoHS Compliant

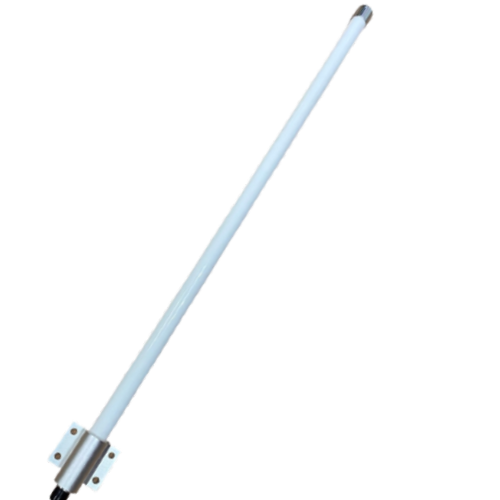

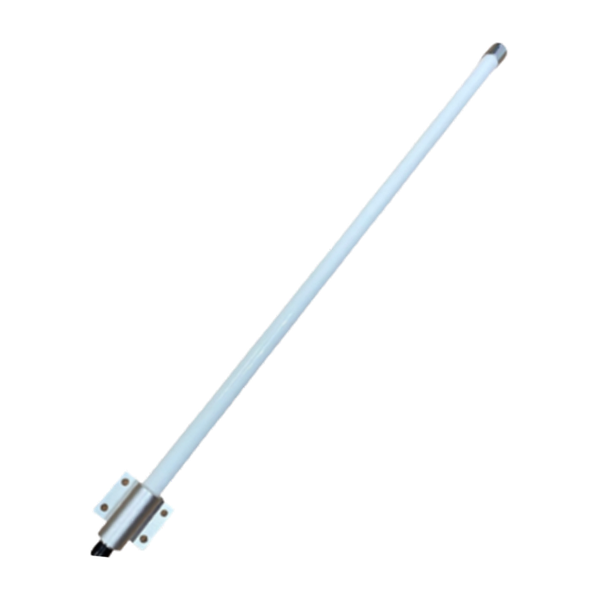

The Lora OA-923M06-NF antenna operates at frequencies spanning from 917MHz to 928MHz and has a high gain of 6dbi and a vertical beamwidth of 13 degrees.
Among the applications are ISM, WLAN, RFID, SigFox, Lora, and LPWA networks, as well as helium hotspot - one of the projects that have grown rapidly in recent years.

In Singapore, Malaysia, and Indonesia, the moniker AS923 is well-known. The antenna is built in a straight line with a length of 1474mm and is UV-resistant, making it suitable for use in hostile environments. Using the built-in metal bracket, the antenna can be fixed straight to a pole or wall. The female connector is of the N-type.

Frequency Range

917MHz-928MHz

V.S.W.R (MAX)

922-923MHz: 1.5 :1

917-921/ 924-928MHz: 2.0:1

Antenna Type

Collinear

Radiation

Omni Directional

Gain (Avg)

6 dBi

Polarization

Vertical

Maximum Power

120 Watts

Vertical Beamwidth (AVG)

13 deg

Horizontal Beamwidth (AVG)

360 deg

Impedance

50 Ohm

Antenna Design

Dipole array

Internal Material

Cooper

Connector

N-Female

Length

1474.45±5mm

WxH

70x54mm

Antenna Weight (N.W)

685.61g

Application

Indoor / Outdoor

Radome Material

White ABS + Fiberglass + UV

Mount Style

Pole Mount/ Wall mount

Parts Material

Aluminum

Mounting

Stainless Steel and Aluminum

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80

Operating Temperature

-40 to +60

Operating Humidity

10%~80% non-condensing

Storage Humidity

5%~80% non-condensing

Safety, Emission and other

CE, FCC, RoHS, WEEE
