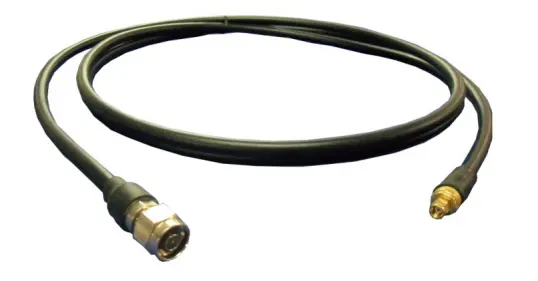

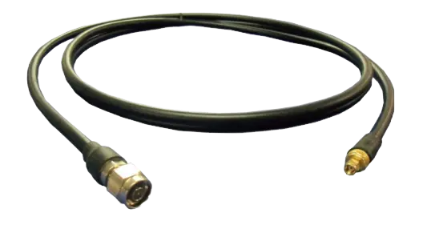

CFD100 Low loss Coaxial Cable Assembly

Model No: CFD100-Assembly

Part Designation Material Outer Diameter (mm) Inner conductor Solid BCCAL(Copper-Clad Aluminum Wire) Nominal 4.47 Insulation Foam polyethylene Nominal 11.57 Shield Aluminum/PE Tape Nominal 11.7 Outer conductor Single braid 0.16mm tinned copper wire Carriers 24 Ends 9 Coverage 90%(Approx.) Nominal 12.4 Jacket PE Nominal 14.8 ELECTRICAL PROPERTIES (AT 20℃) Description Value Velocity of propagation Nom. 87% Conductor resistance Inner conductor Nom. 1.74 Ω/km Voltage withstanding 4000V / 1min Impedance Nom. 50 Ω @200MHz Capacitance Nom. 77.0pF/m Attenuation Frequency Attenuation MHz dB/100M, nom. 30 1.4 50 1.8 150 3.2 220 3.9 450 5.6 900 8.2 1500 10.9 1800 12.1 2000 12.8 2500 14.5 5800 23.8

Quantity:

INQUIRY

Descriptions
ELECTRICAL PROPERTIES (AT 20℃)

Part Designation	Material	Outer Diameter (mm)
Inner conductor	Solid BCCAL(Copper-Clad Aluminum Wire)	Nominal 4.47
Insulation	Foam polyethylene	Nominal 11.57
Shield	Aluminum/PE Tape	Nominal 11.7
Outer conductor Single braid	0.16mm tinned copper wire Carriers 24 Ends 9 Coverage 90%(Approx.)	Nominal 12.4
Jacket	PE	Nominal 14.8

Description	Value
Velocity of propagation	Nom. 87%
Conductor resistance Inner conductor	Nom. 1.74 Ω/km
Voltage withstanding	4000V / 1min
Impedance	Nom. 50 Ω @200MHz
Capacitance	Nom. 77.0pF/m
