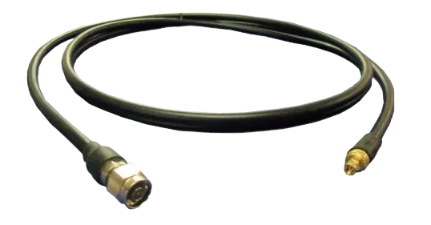

CFD600 Low loss Coaxial Cable Assembly

Model No: CFD600-Assembly

Part Designation Material Outer Diameter (mm) Inner conductor Solid BCCAL(Copper-Clad Aluminum Wire) Nominal 4.47 Insulation Foam polyethylene Nominal 11.57 Shield Aluminum/PE Tape Nominal 11.7 Outer conductor Single braid 0.16mm tinned copper wire Carriers 24 Ends 9 Coverage 90%(Approx.) Nominal 12.4 Jacket PE Nominal 14.8 ELECTRICAL PROPERTIES (AT 20℃) Description Value Velocity of propagation Nom. 87% Conductor resistance Inner conductor Nom. 1.74 Ω/km Voltage withstanding 4000V / 1min Impedance Nom. 50 Ω @200MHz Capacitance Nom. 77.0pF/m Attenuation Frequency Attenuation MHz dB/100M, nom. 30 1.4 50 1.8 150 3.2 220 3.9 450 5.6 900 8.2 1500 10.9 1800 12.1 2000 12.8 2500 14.5 5800 23.8
INQUIRY
  • Descriptions
  • ELECTRICAL PROPERTIES (AT 20℃)
Part Designation Material Outer Diameter (mm)
Inner conductor Solid BCCAL(Copper-Clad Aluminum Wire) Nominal 4.47
Insulation Foam polyethylene Nominal 11.57
Shield Aluminum/PE Tape Nominal 11.7
Outer conductor Single braid

0.16mm tinned copper wire
Carriers 24
Ends 9
Coverage 90%(Approx.)

 Nominal 12.4
Jacket PE Nominal 14.8
Description Value
Velocity of propagation Nom. 87%
Conductor resistance Inner conductor Nom. 1.74 Ω/km
Voltage withstanding 4000V / 1min
Impedance Nom. 50 Ω @200MHz
Capacitance Nom. 77.0pF/m

Attenuation

Frequency Attenuation
MHz dB/100M, nom.
30 1.4
50 1.8
150 3.2
220 3.9
450 5.6
900 8.2
1500 10.9
1800 12.1
2000 12.8
2500 14.5
5800 23.8
