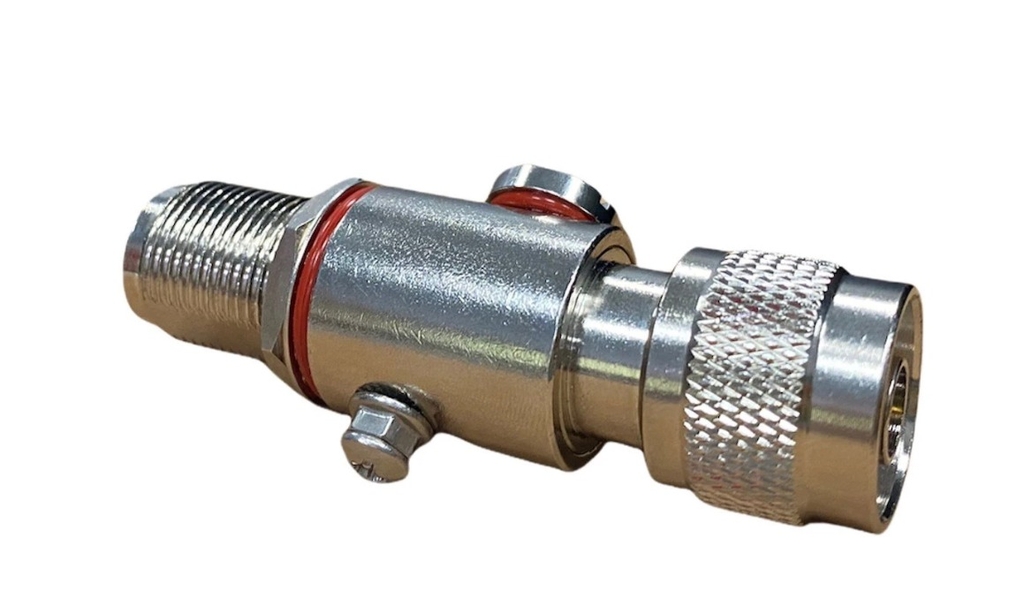

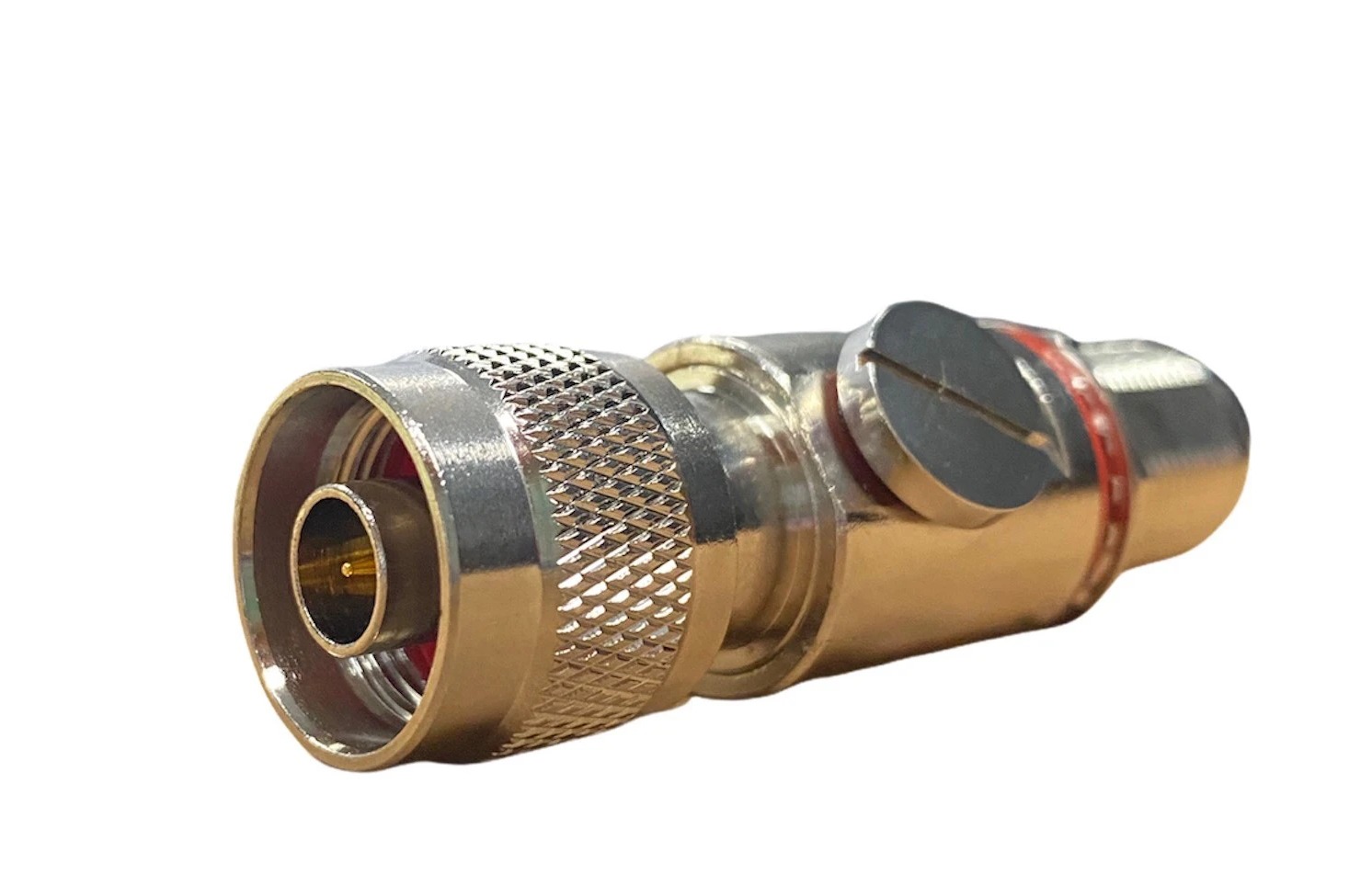

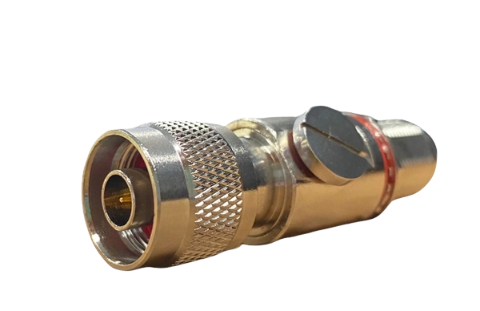

DC - 6GHz Lightning Surge Protector (N-Male to N-Female)
Professional grade DC to 6GHz wide-band lightning surge protector designed with N-Male to N-Female bulkhead connectors. Engineered to safeguard 900MHz, 2.4GHz & 5GHz Wi-Fi outdoor antennas, 3G/4G/LTE cellular boosters, and RF amplifiers against high-voltage electrical surges.
Electrical Specifications
| Frequency Range | DC – 6 GHz |
| V.S.W.R (MAX) | < 1.5 : 1 |
| Insertion Loss | ≦ 0.9 dB |
| Return Loss | < -14 dB |
| Impedance | 50 Ohm |
| DC Spark Over Voltage | 184 – 276 V (100V/S) |
| Impulse Spark-over Voltage | 450 V (1Kv/μs) |
| Alternating Discharge Current | 20 KA (wave 8/20μs, 10 Times) |
| Insulation Resistance | ≧ 2000 MΩ (Gas Tube ≧ 10 GΩ at 100Vdc) |
| DC Holdover Voltage | 135 V (per ITU-T K.12) |
| Capacitance | < 1 pF (at 1 MHz) |
Mechanical & Environmental Specifications
| Dimensions (W x L x H) | 22.8 x 64.7 x 32 mm (64.5 x 22.8 x 35 mm) |
| Weight | 127 g (N.W. 135 g) |
| Connector Type | N-Male to N-Female Bulkhead |
| Mounting Style | Bulkhead / Panel / Outdoor Mountable |
| Working Temperature | -40°C to +85°C |
Tactical Engineering Features
DC to 6GHz Wide-Band Coverage
Provides robust surge suppression across a wide frequency spectrum from DC to 6GHz, ensuring seamless compatibility with cellular and Wi-Fi systems.
Low RF Insertion Loss
Optimized internal design guarantees extremely low RF insertion loss (≦0.9dB) and stable VSWR (<1.5) without degrading critical signal strength.
Heavy-Duty Surge Protection
Equipped with a gas discharge tube capable of handling up to 20KA alternating discharge current to defend infrastructure against direct surges.
Bulkhead Weatherproof Mounting
Engineered with an N-Female bulkhead interface for secure, weather-sealed pass-through installation on panels, enclosures, or outdoor towers.
