FT100 Low Loss Coaxial CableFT100 Low Loss Coaxial CableFT100 Low Loss Coaxial Cable

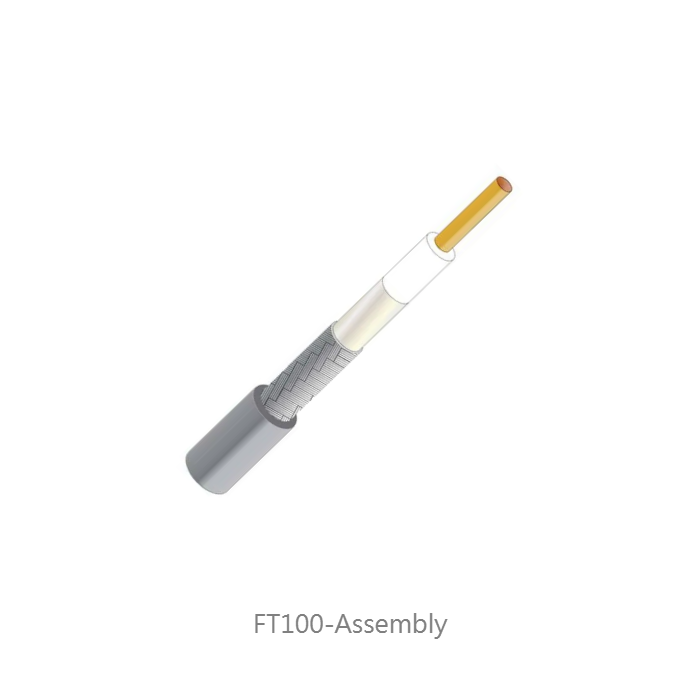

Model No: FT100-Assembly

  • Impedance: 50 Ohm
  • Capacitance: 101.1 pF/M
  • Conductor: Bare Copper Wire
  • Shield Coverage: 95 %
  • Minimum Bend Radius: 5 x 2.80mm
INQUIRY
  Diameter Material
Conductor 0.46mm Bare Copper Wire
Insulation 1.5 mm Solid polyethylene
Binder   Aluminum Foil
Braid Shield 1.92mm Tinned copper wire Coverage: 95 %
Jacket 2.8 mm PVC


Frequency(MHz)

30

50

150

220

450

900

1500

1800

2000

2500

5800

Attenuation(M/dB)

0.129

0.167

0.294

0.358

0.519

0.749

0.987

1.09

1.115

1.306

2.103

Attenuation(ft/dB)

0.039

0.051

0.089

0.109

0.158

0.228

0.301

0.332

0.352

0.398

0.641

Avg.Power(W)

230

180

100

83

57

39

29

27

25

22

13
