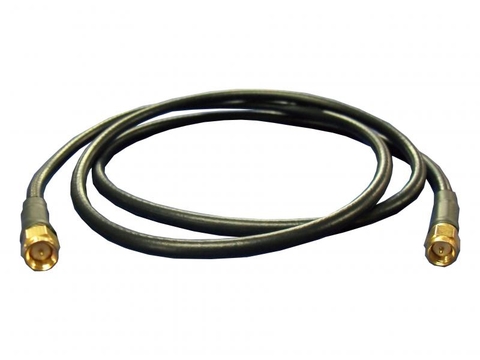

FT300 Low loss Coaxial Cable Assembly

Model No: FT300-Assembly

Electrical Characteristics Frequency(MHz) 30 50 150 220 450 900 1500 1800 2000 2500 5800 Attenuation(M/dB) 0.035 0.045 0.079 0.096 0.138 0.199 0.26 0.287 0.303 0.342 0.542 Attenuation(ft/dB) 0.011 0.014 0.024 0.029 0.042 0.0061 0.079 0.087 0.092 0.104 0.165 Avg.Power(W) 2090 1620 920 760 520 360 280 250 240 210 130 Max Cable Loss ={(Cable length x Frequency Attenuation)+ 0.4 } Conductor Part Designation Material Outer Diameter (mm) Inner conductor Solid Copper Wire Nominal 1.78 Insulation Foam polyethylene Nominal 4.84 Shield Aluminum/PE Tape Nominal 4.95 Outer conductor Single braid Coverage 84%(Approx.) Nominal 5.7 Jacket PE or Non-Lead PVC Nominal 7.6

Quantity:

INQUIRY

Electrical Characteristics
Conductor

Frequency(MHz)	30	50	150	220	450	900	1500	1800	2000	2500	5800
Attenuation(M/dB)	0.035	0.045	0.079	0.096	0.138	0.199	0.26	0.287	0.303	0.342	0.542
Attenuation(ft/dB)	0.011	0.014	0.024	0.029	0.042	0.0061	0.079	0.087	0.092	0.104	0.165
Avg.Power(W)	2090	1620	920	760	520	360	280	250	240	210	130

Max Cable Loss ={(Cable length x Frequency Attenuation)+ 0.4 }

Part Designation	Material	Outer Diameter (mm)
Inner conductor	Solid Copper Wire	Nominal 1.78
Insulation	Foam polyethylene	Nominal 4.84
Shield	Aluminum/PE Tape	Nominal 4.95
Outer conductor Single braid	Coverage 84%(Approx.)	Nominal 5.7
Jacket	PE or Non-Lead PVC	Nominal 7.6
