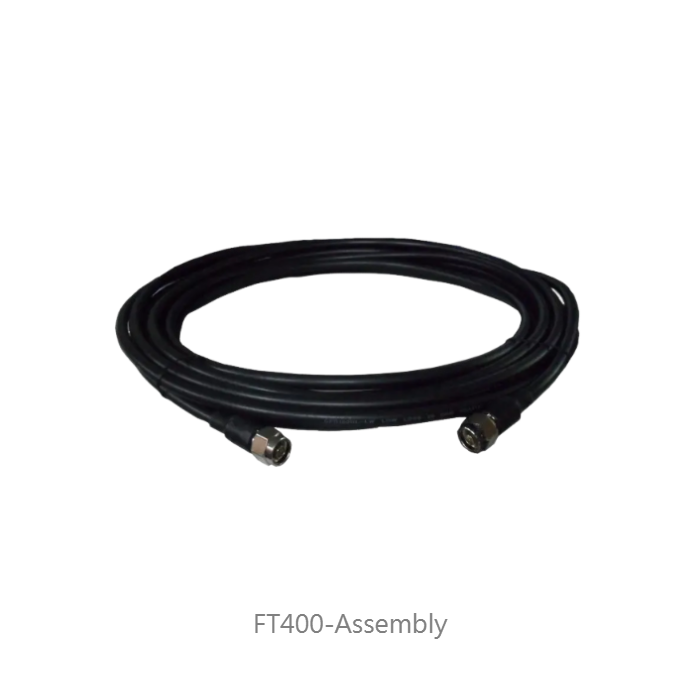

FT400 (8D) Low loss Coaxial Cable AssemblyFT400 (8D) Low loss Coaxial Cable AssemblyFT400 (8D) Low loss Coaxial Cable Assembly

Model No: FT400-Assembly

Please contact us for details <info-tw@ft168.com.tw>

INQUIRY

Frequency(MHz)

30

50

150

220

450

900

1500

1800

2000

2500

5800

Attenuation(M/dB)

0.024

0.03

0.05

0.061

0.089

0.128

0.168

0.186

0.196

0.222

0.355

Attenuation(ft/dB)

0.0073

0.0092

0.0153

0.0186

0.0271

0.039

0.0512

0.0567

0.0598

0.0677

0.1083

Avg.Power(W)

3300

2600

1500

1200

830

580

440

400

370

230

210

Max Cable Loss  ={(Cable lenght x Frequency Attenuation)+ 0.4 }

Part Designation Material Outer Diameter (mm)
Inner conductor Solid Copper Claded Aluminum Wire Nominal 2.74
Insulation Foam polyethylene Nominal 7.24
Shield Aluminum/PE Tape Nominal 7.35
Outer conductor Single braid Coverage 85%(Approx.) Nominal 8.1
Jacket PE or Non Lead PVC Nominal 10.3
