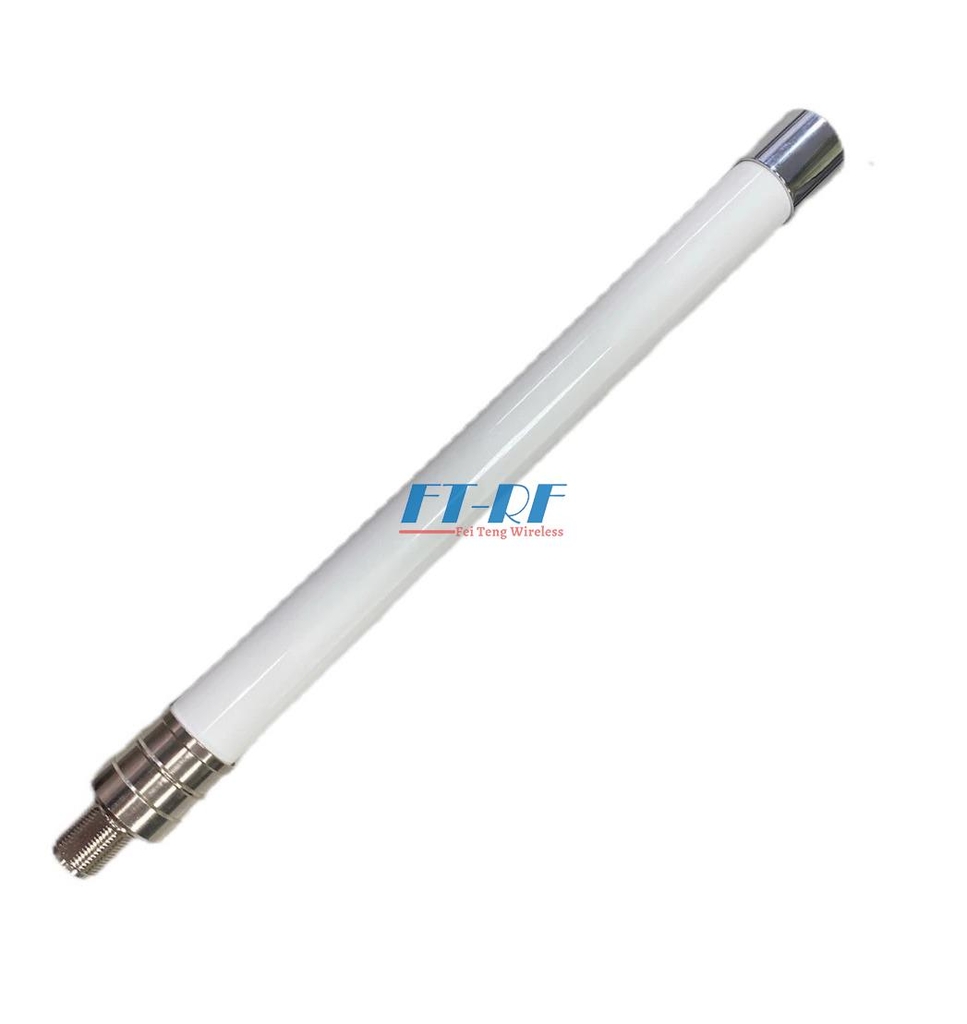

Mini Omni Directional Outdoor Antenna 923 MHz 3dbi (AS923)Mini Omni Directional Outdoor Antenna 923 MHz 3dbi (AS923)Mini Omni Directional Outdoor Antenna 923 MHz 3dbi (AS923)

Model No: OS-923M03-NF

  • Dimension : 320x30x30mm
  • Weight: 220g
  • Connector: N-Female
  • Beamwidth: Horz.360 deg Vert. 73 deg
INQUIRY

Applications:

  • Mini Omni Directional Outdoor Antenna 923 MHz 3dbi (AS923)
  • AS923
  • Mini Omni Directional Multipoint applications
  • Public Wireless

Features:

  • Superior Performance
  • Good appearance design
  • Compact and Lightweight
  • DC Short lightning protection
  • Outdoor antenna for public
  • RoHS Compliant



Frequency Range

900 MHz to 945 MHz

  V.S.W.R

< 1.5:1

Antenna Type

Collinear

Radiation

Omnidirectional

Gain (AVG)

3 dbi

Polarization

Vertical

Maximum Power



-3db Horizontal beamwidth

360 deg

-3db Vertical beamwidth

73 deg

Impedance

50 Ohm

Antenna Design

Dipole

Connector

N-Female



Length

320mm

Diameter

30x30mm

Antenna Weight

220 g

Application

Indoor / Outdoor

Radome Material

White Fiberglass

Parts Material

Copper

Wind Survival

Greater than 180MPH

Storage Temperature

-40 to +80

Operating Temperature

-40 to +60

Operating Humidity

10%~90% non-condensing

Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS
