Professional RF Interconnects

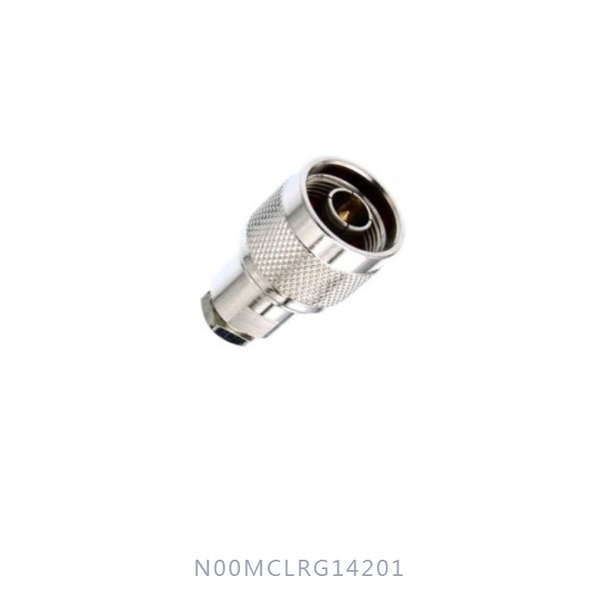

N-Type Male Straight Plug Clamp Connector
High-performance N-series male plug designed for precision coaxial cable termination, providing robust mechanical stability and reliable signal transmission up to 11 GHz.
Technical Specifications
| Connector Series | N-Type |
| Gender (Body/Contact) | Plug / Male |
| Mating Type | Clamp Type |
| Frequency Range | 0 to 11 GHz |
| Impedance | 50 Ohm |
| Outline Orientation | Straight |
Cable Compatibility
| Compatible Coaxial Cables | RG-58, RG-142, BT2003 |
| Manufacturing Origin | Designed and Made in Taiwan |
Engineering Core Features
High-Frequency Precision
Precision-engineered to support frequencies up to 11 GHz, making it ideal for telecommunications, test equipment, and aerospace RF links.
Robust Clamp Design
The high-retention clamp mating type ensures a secure mechanical bond with the cable, providing superior resistance against tension and vibration.
Versatile Connectivity
Optimized for industry-standard thin and double-shielded cables like RG-58 and RG-142, offering flexibility for high-performance installations.
Professional Signal Integrity
Constructed with premium materials to maintain consistent 50-ohm impedance and minimize signal attenuation across the entire spectrum.
