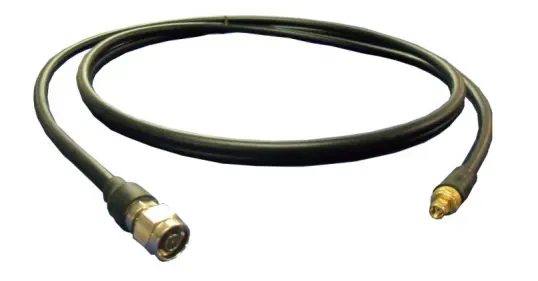

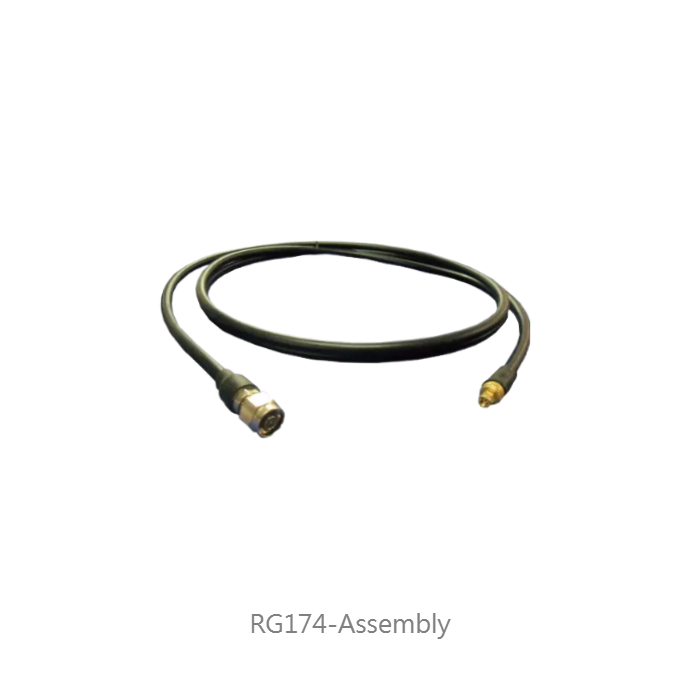

Construction
-
Electrical & Mechanical
-
Attenuation
| Inner conductor | Copper clad steel(CCS) | 7 x 0.16 mm |
| Dielectric | Low density PE | Φ1.50 ± 0.08 mm |
| Outer conductor (shield) | Tinned copper | 64 x 0.10 mm |
| Shield coverage | 88% | |
| Sheath | PVC or LSZH | Φ2.80 ± 0.13 mm |
| Impedance | 50±3 Ohm | |
| Nominal capacitance | 100 pF/m | |
| Velocity of propagation | 66% | |
| Insulation resistance | >2000 Mohm.Km | |
| Inner conductor resistance | 290 Ohm/Km | |
| Outer conductor resistance | 39.0 Ohm/Km | |
| Test/Operatig Voltage(max) | 4.5 KV/1.6 KV | |
| Operating temperature range | -30 °C - +70 °C | |
| Copper Weight | 5.9 Kg/Km | |
| Cable weight (approx.) | 12.5 Kg/Km | |
| Screening effectiveness | 100-900 MHz | >50dB |
| Frequency(MHz) | Attenuation (dB/100 m) | Attenuation (dB/100ft) |
| 50 | 17.5 | 5.34 |
| 100 | 25.8 | 7.87 |
| 200 | 38.2 | 11.65 |
| 400 | 54.9 | 16.74 |
| 500 | 63.1 | 19.24 |
| 600 | 68.6 | 20.91 |
| 860 | 81.2 | 24.76 |
| 1000 | 87.5 | 26.68 |
