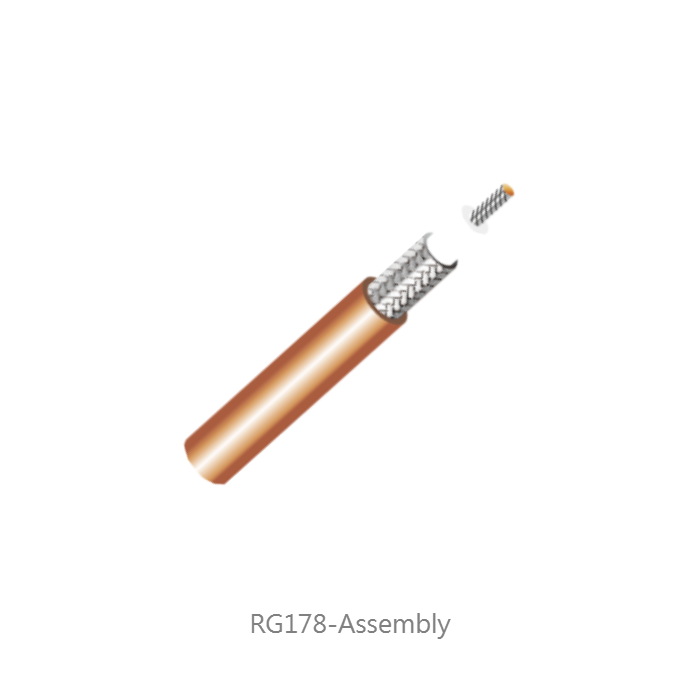

RG178 Jumper coaxial Cable AssemblyRG178 Jumper coaxial Cable AssemblyRG178 Jumper coaxial Cable Assembly

Model No: RG178-Assembly

Please contact us for details <info-tw@ft168.com.tw>

INQUIRY
Inner conductor Silver plated copper 7 x 0.10 mm
Dielectric Solid PTFE Φ0.84 mm
Outer conductor (shield 1) Silver plated copper 0.10 mm
Outer conductor (shield 2) Silver plated copper 0.10 mm
Sheath FEP Φ2.25 mm
Frequency (MHz) Attenuation (dB/100 m) Max. Attenuation(dB/100ft)
100 46 14.0
200 65 19.8
400 93 28.3
900 140 42.7
1200 162 49.4
1500 182 55.5
1800 200 61.0
2000 211 64.3
2500 236 71.9
