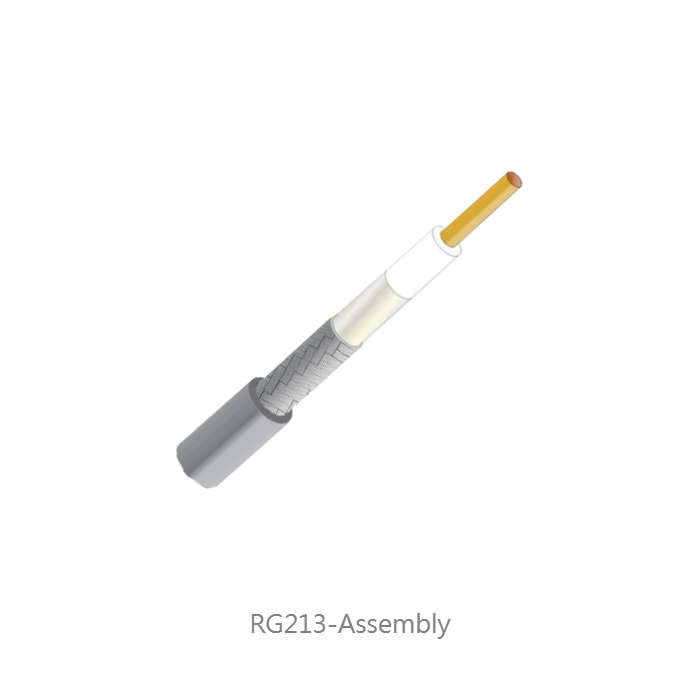

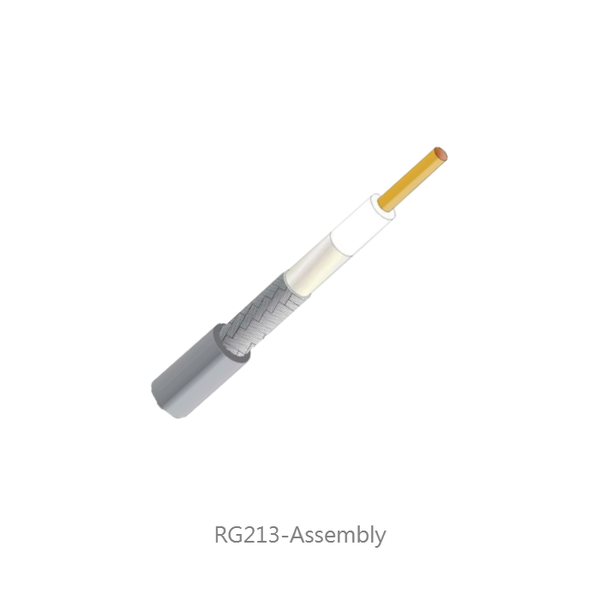

RG213 Coaxial Cable Assembly

Model No: RG213-Assembly

Datasheet:Download

Construction : Inner conductor Plain copper 7 x 0.75 mm Dielectric Low density PE Φ7.25 ± 0.18 mm Outer conductor Plain copper 192 x 0.18 mm Shield coverage   97% Sheath PVC or LSZH Φ10.3 ± 0.18 mm Electrical & Mechanical Characteristics Impedance 50±3 Ohm Nominal capacitance 100 pF/m Velocity of propagation 66% Insulation resistance >2000 Mohm.Km Inner conductor resistance 6.0 Ohm/Km Outer conductor resistance 4.5 Ohm/Km Test/Operatig Voltage(max) 10KV/5KV Operating temperature range -30 °C - +70 °C Copper Weight 76.9 Kg/Km Cable weight (approx.) 163...
INQUIRY

Construction :

Inner conductor Plain copper 7 x 0.75 mm
Dielectric Low density PE Φ7.25 ± 0.18 mm
Outer conductor Plain copper 192 x 0.18 mm
Shield coverage   97%
Sheath PVC or LSZH Φ10.3 ± 0.18 mm
Impedance 50±3 Ohm
Nominal capacitance 100 pF/m
Velocity of propagation 66%
Insulation resistance >2000 Mohm.Km
Inner conductor resistance 6.0 Ohm/Km
Outer conductor resistance 4.5 Ohm/Km
Test/Operatig Voltage(max) 10KV/5KV
Operating temperature range -30 °C - +70 °C
Copper Weight 76.9 Kg/Km
Cable weight (approx.) 163 Kg/Km
Screening effectiveness 100-900 MHz >55dB

Attenuation :

Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100ift)
50 4.5 1.37
100 6.7 2.04
200 9.9 3.02
400 14.3 4.36
500 16.1 4.91
600 17.8 5.43
860 22.1 6.74
1000 24.3 7.41
