RG214 Coaxial Cable Double Shielded AssemblyRG214 Coaxial Cable Double Shielded AssemblyRG214 Coaxial Cable Double Shielded Assembly

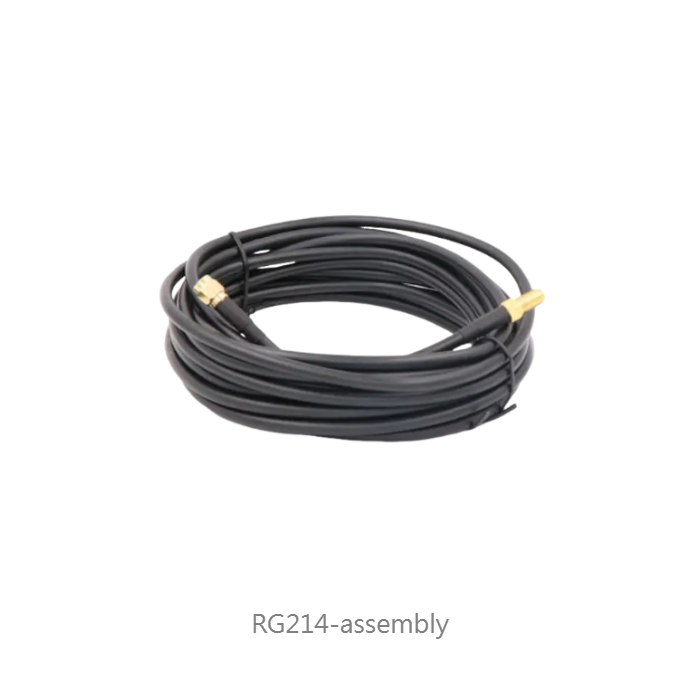

Model No: RG214-assembly

Construction : Inner conductor Silver plated copper 7 x 0.75 mm Dielectric Low density PE Φ7.25 ± 0.18 mm Outer conductor(shield 1) Silver plated copper 144 x 0.16 mm ...
INQUIRY

Construction :

Inner conductor Silver plated copper 7 x 0.75 mm
Dielectric Low density PE Φ7.25 ± 0.18 mm
Outer conductor(shield 1) Silver plated copper 144 x 0.16 mm
Shield coverage   96%
Outer conductor(shield 2) Silver plated copper 168 x 0.16 mm
Shield coverage   98%
Sheath PVC or LSZH Φ10.8 ± 0.18 mm
Impedance 50±3 Ohm
Nominal capacitance 100 pF/m
Velocity of propagation 66%
Insulation resistance >2000 Mohm.Km
Inner conductor resistance 6.0 Ohm/Km
Outer conductor resistance 3.1 Ohm/Km
Test/Operatig Voltage(max) 10.0 KV/5.0 KV
Operating temperature range -30 °C - +70 °C
Copper Weight 117.7 Kg/Km
Cable weight (approx.) 205.3 Kg/Km
Screening effectiveness 100-900 MHz >70dB

Attenuation :

Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100ft)
50 4.7 1.43
100 7.1 2.16
200 10.4 3.17
400 15.2 4.63
500 17.4 5.30
600 19.2 5.85
860 23.9 7.29
1000 26.2 7.99
