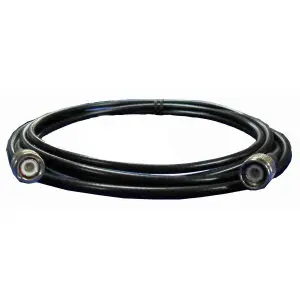

RG58 Coaxial Cable AssemblyRG58 Coaxial Cable AssemblyRG58 Coaxial Cable Assembly

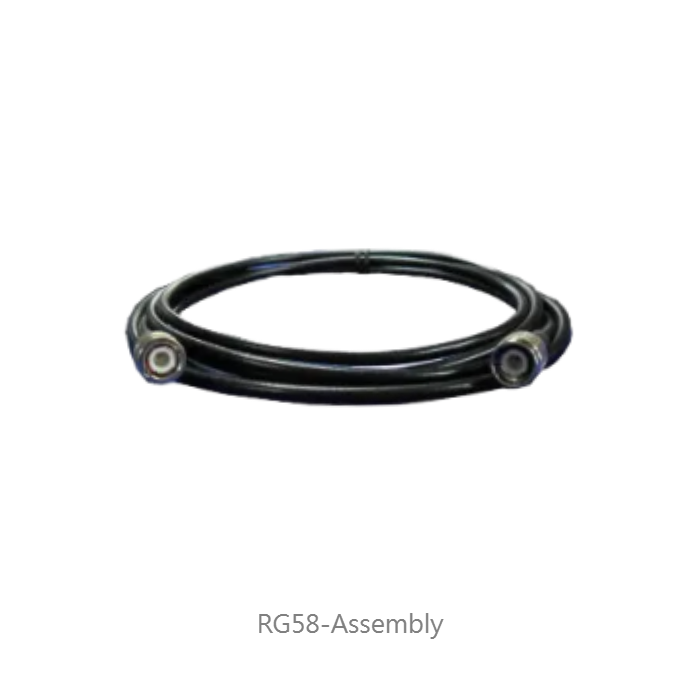

Model No: RG58-Assembly

Construction : Inner conductor Plain copper Φ0.80 ± 0.025 mm Dielectric Low density PE Φ2.95 ± 0.10 mm Outer conductor Tinned copper 112 x 0.13 mm Shield coverage...
INQUIRY

Construction :

Inner conductor Plain copper Φ0.80 ± 0.025 mm
Dielectric Low density PE Φ2.95 ± 0.10 mm
Outer conductor Tinned copper 112 x 0.13 mm
Shield coverage   95%
Sheath PVC or LSZH Φ5.00 ± 0.10 mm
Impedance Nom.53±3 Ohm
Nominal capacitance 94 pF/m
Velocity of propagation 66%
Insulation resistance >2000 Mohm.Km
Inner conductor resistance 35.0 Ohm/Km
Outer conductor resistance 16.5 Ohm/Km
Test/Operatig Voltage(max) 5 KV/2 KV
Operating temperature range -30 °C - +70 °C
Copper Weight 18.7 Kg/Km
Cable weight (approx.) 39.9 Kg/Km
Screening effectiveness 100-900 MHz >55dB

Attenuation :

Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100ft)
50 9.1 2.77
100 13.1 3.99
200 19.4 5.91
400 28.4 8.66
500 32.2 9.82
600 35.7 10.88
860 44.8 13.66
1000 49.0 14.94
