Precision Sub-Miniature Interconnects

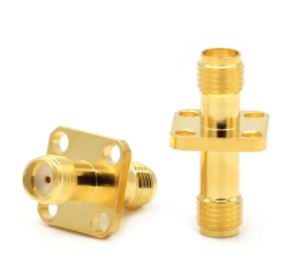

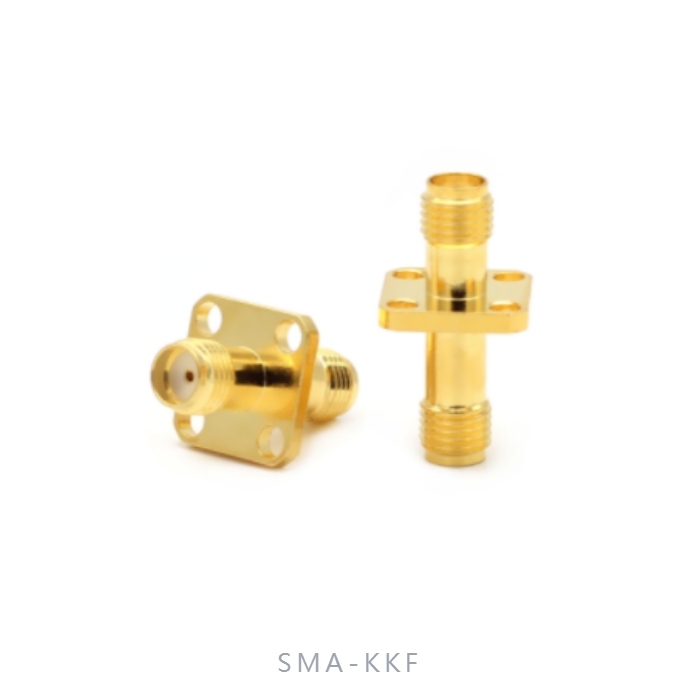

SMA Female to SMA Female 4-Hole Flange Mount Adapter (SMA-KKF)
Professional high-performance SMA in-series adapter featuring a precision 4-hole flange mount configuration. Optimized for secure panel integration and consistent signal integrity in RF systems up to 6 GHz.
Electrical Specifications
| Frequency Range | DC – 6 GHz |
| V.S.W.R (MAX) | ≤ 1.15 : 1 |
| Impedance | 50 Ω |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstand Voltage | 1000 V |
Mechanical & Environmental
| Model Name | SMA-KKF |
| Connector Interface | SMA Female to SMA Female |
| Mounting Type | 4-Hole Flange Mount |
| Durability | 500 Mating Cycles |
| Temperature Range | -55℃ ～ +165℃ |
Engineering Core Features
Superior Signal Integrity
Precision-machined interface designed to maintain strict 50-ohm impedance matching and minimize signal reflection (VSWR ≤ 1.15) for high-accuracy RF measurement chains.
Stable Flange Mount Integration
Precision-engineered 4-hole flange configuration enables robust and vibration-resistant mounting on enclosures and panels, providing a secure external interface.
Industrial Grade Build
Constructed with premium materials to ensure high mechanical strength and reliable electrical contact through 500 mating cycles in professional deployments.
Extreme Thermal Tolerance
Operates reliably across a vast thermal span from -55℃ up to +165℃, ideal for aerospace, telecommunications, and high-stress environmental testing.
