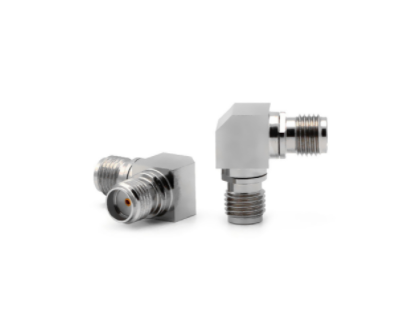

SMA Female to Female Right-Angle Adapter

Model No: SMA-KKW

Made in Taiwan

Freq. Range:	DC - 6 GHz
Connector:	SMA(F)-SMA(F) R/A
VSWR:	≤ 1.20 : 1
Durability:	500 Cycles

📄 FULL DATASHEET

Quantity:

INQUIRY

Descriptions

Precision Sub-Miniature Interconnects

SMA Female to SMA Female Right Angle Precision Adapter (SMA-KKW)

Professional grade 90-degree right angle SMA Female to SMA Female in-series adapter. Precision-engineered for superior mechanical stability in tight-space applications while maintaining consistent signal integrity up to 6 GHz.

Electrical Specifications

Frequency Range	DC – 6 GHz
V.S.W.R (MAX)	≤ 1.20 : 1
Impedance	50 Ω
Insulation Resistance	≥ 5000 MΩ
Dielectric Withstand Voltage	1000 V

Mechanical & Environmental

Model Name	SMA-KKW
Connector Interface	SMA Female to SMA Female
Outline Orientation	Right Angle (90°)
Durability	500 Mating Cycles
Temperature Range	-55℃ ～ +165℃

Engineering Core Features

Compact Right Angle Design

The precision-machined 90-degree configuration is optimized for RF signal transition in space-constrained enclosures, allowing for efficient cable management without signal degradation.

Superior Signal Integrity

Maintains strict 50-ohm impedance matching and low VSWR (≤ 1.20) across its frequency range, ensuring stable performance for telecommunications and instrumentation.

Industrial Grade Build

Constructed with high-quality materials and manufactured in Taiwan to provide reliable mechanical strength and electrical contact consistency through 500 mating cycles.

Extreme Thermal Tolerance

Operates reliably across a vast thermal span from -55℃ to +165℃, making it suitable for aerospace, defense, and mission-critical environmental testing.
