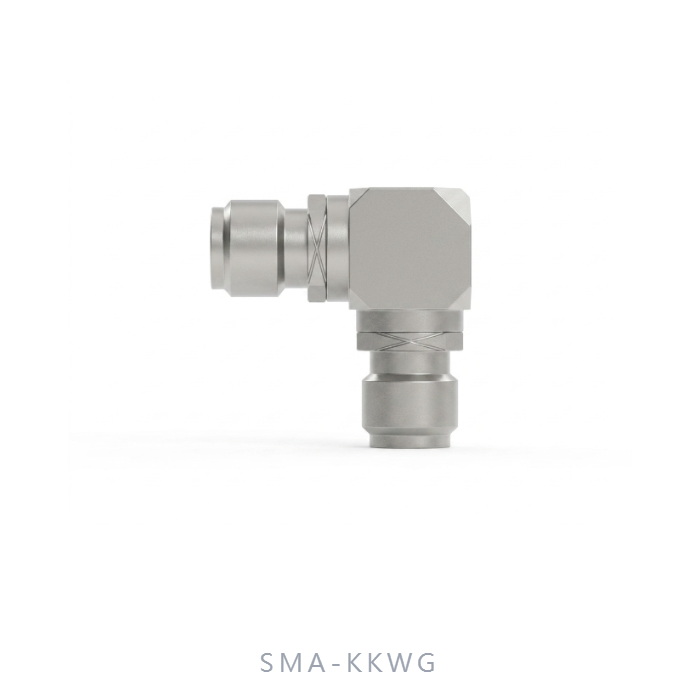

SMA Female to Female Right-Angle Adapter

Model No: SMA-KKWG

Made in Taiwan

Freq. Range:	DC - 18 GHz
Connector:	SMA(F)-SMA(F) R/A
VSWR:	≤ 1.20 : 1
Durability:	500 Cycles

📄 FULL DATASHEET

Quantity:

INQUIRY

Descriptions

Precision Sub-Miniature Interconnects

SMA Female to SMA Female Right Angle Precision Adapter (SMA-KKWG)

Professional high-performance 90-degree right angle SMA Female to SMA Female adapter. Engineered for superior mechanical stability in tight-space configurations, ensuring mission-critical signal integrity up to 18 GHz.

Electrical Specifications

Frequency Range	DC – 18 GHz
V.S.W.R (MAX)	≤ 1.20 : 1
Impedance	50 Ω
Insulation Resistance	≥ 5000 MΩ
Dielectric Withstand Voltage	1000 V

Mechanical & Environmental

Model Name	SMA-KKWG
Connector Interface	SMA Female to SMA Female
Outline Orientation	Right Angle (90°)
Durability	500 Mating Cycles
Temperature Range	-55℃ ～ +165℃

Engineering Core Features

Compact Right Angle Design

Precision-machined 90-degree orientation optimized for RF connectivity in space-constrained enclosures and compact instrumentation without signal degradation.

Millimeter-Wave Precision

Ensures exceptionally low reflection loss (VSWR ≤ 1.20) across a broad spectrum up to 18 GHz, providing reliable results for advanced telecommunications testing.

Industrial Grade Build

Constructed with premium materials and precision manufacturing in Taiwan to ensure consistent mechanical stability and high-cycle durability (500 matings).

Extreme Thermal Reliability

Maintains peak electrical performance across a vast thermal span from -55℃ up to +165℃, ideal for aerospace, defense, and high-stress environmental chambers.
