Professional Interconnect Solutions

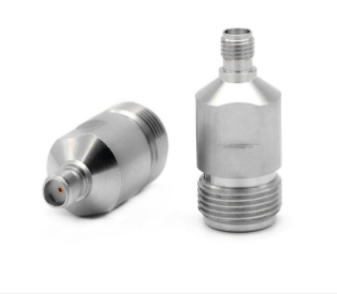

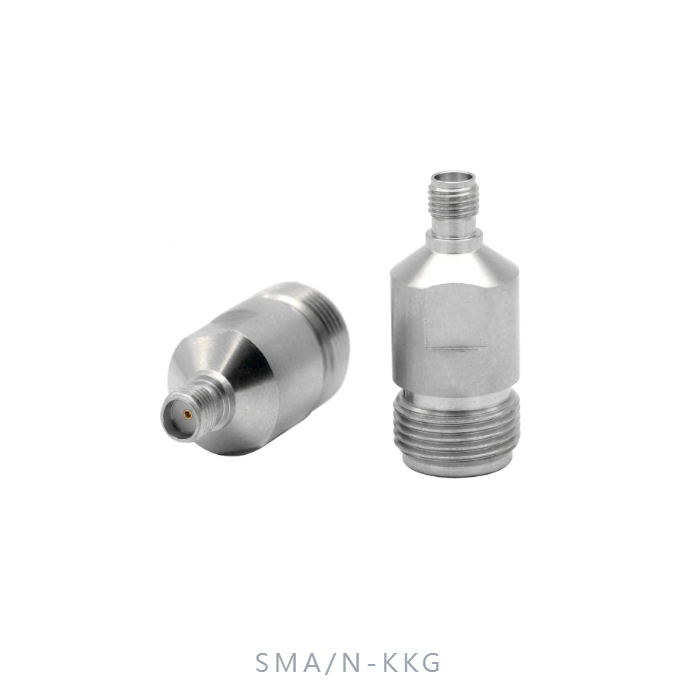

SMA Female to N-Type Female Precision Adapter (SMA/N-KKG)
High-performance between-series RF adapter designed for precision measurement and broadband wireless infrastructure, providing exceptional signal transition stability up to 18 GHz.
Electrical Specifications
| Frequency Range | DC – 18 GHz |
| V.S.W.R (MAX) | ≤ 1.20 : 1 |
| Impedance | 50 Ω |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstand Voltage | 1000 V |
Mechanical Specifications
| Model Name | SMA/N-KKG |
| Connector Interface | SMA Female to N-Type Female |
| Durability | 500 Cycles |
| Temperature Range | -55℃ ～ +165℃ |
Engineering Core Features
Superior Signal Integrity
Precision-engineered for exceptionally low reflection loss (VSWR ≤ 1.20), maintaining peak signal quality for 5G, satellite, and laboratory testing applications.
Industrial Grade Build
Constructed with high-quality materials and precision machining to ensure consistent mechanical stability and high-cycle durability (500 matings).
Broad Thermal Reliability
Stable electrical performance across a vast operational temperature span from -55℃ up to +165℃, ideal for high-stress environmental testing.
Mission-Critical Accuracy
Ensures seamless between-series coupling with rigorous 50-ohm impedance matching to minimize return loss in professional microwave systems.
