Precision Sub-Miniature Interconnects

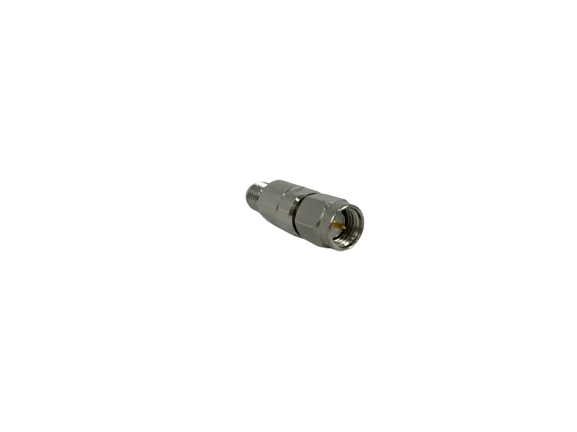

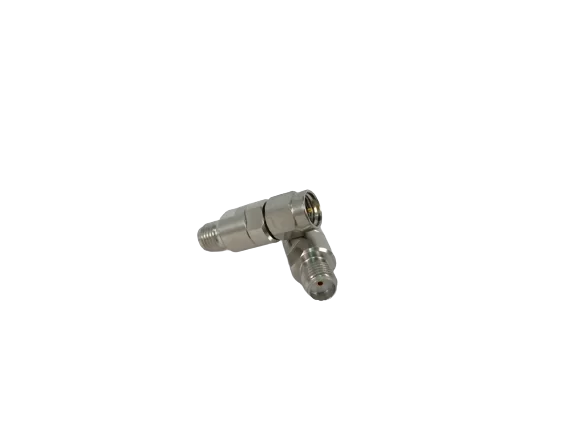

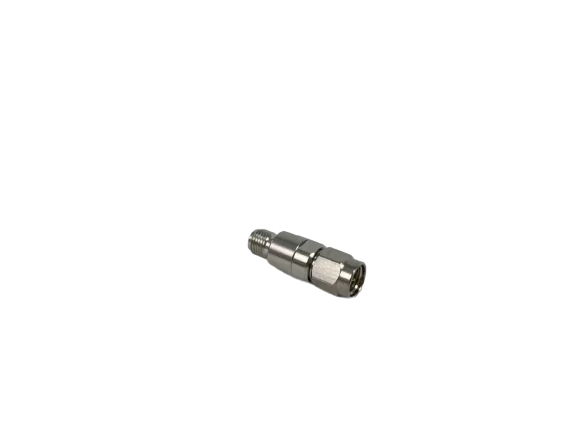

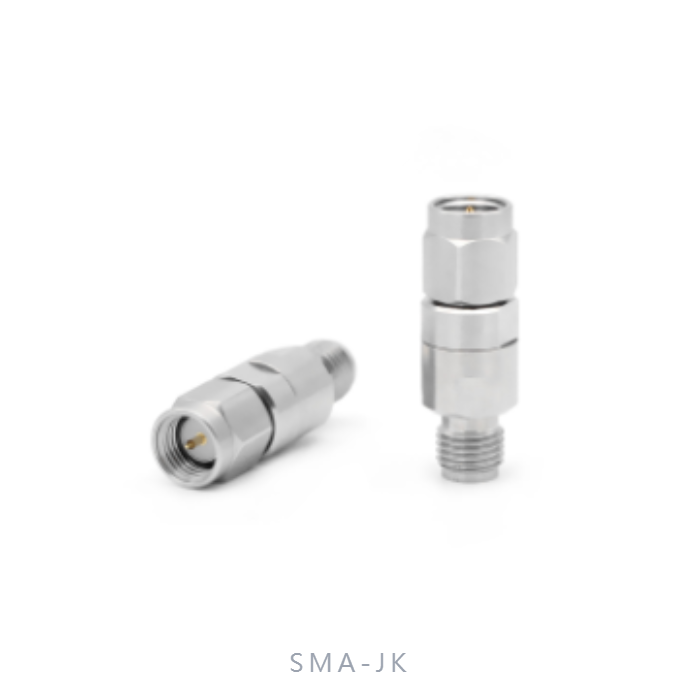

SMA Male to SMA Female Precision Adapter (SMA-JK)
Professional grade straight SMA Male to SMA Female adapter engineered for superior mechanical stability and consistent signal integrity in high-performance RF systems up to 6 GHz.
Electrical Specifications
| Frequency Range | DC – 6 GHz |
| V.S.W.R (MAX) | ≤ 1.15 : 1 |
| Impedance | 50 Ω |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstand Voltage | 1000 V |
Mechanical & Environmental
| Model Name | SMA-JK |
| Connector Interface | SMA Male to SMA Female |
| Durability | 500 Mating Cycles |
| Temperature Range | -55℃ ～ +165℃ |
Engineering Core Features
Superior Signal Integrity
Precision-machined interface designed to maintain strict 50-ohm impedance matching and minimize signal reflection (VSWR ≤ 1.15) across broadband frequencies.
Industrial Grade Build
Constructed with premium materials to ensure high mechanical strength and reliable electrical contact even after 500 mating cycles in demanding lab environments.
Extreme Thermal Tolerance
Engineered to operate reliably across a vast thermal span (-55℃ to +165℃), suitable for aerospace, defense, and high-stress environmental testing.
Precision Interconnect Support
Ensures seamless in-series coupling for telecommunications, wireless infrastructure, and mission-critical measurement chains.
