Precision Millimeter-Wave Interconnects

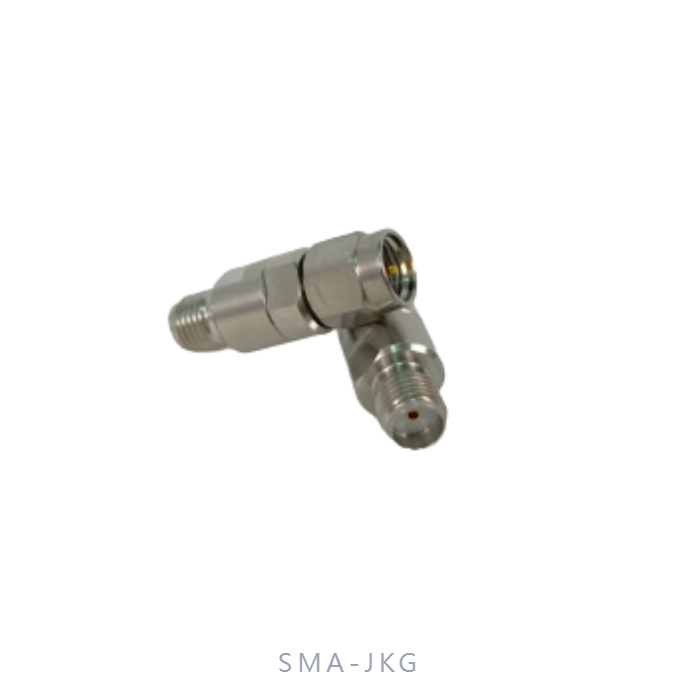

SMA Male to SMA Female Precision Adapter (SMA-JKG)
Professional high-performance SMA in-series adapter engineered for superior mechanical stability and signal integrity. Optimized for advanced laboratory testing and precision RF systems up to 26.5 GHz.
Electrical Specifications
| Frequency Range | DC – 26.5 GHz |
| V.S.W.R (MAX) | ≤ 1.20 : 1 |
| Impedance | 50 Ω |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstand Voltage | 1000 V |
Mechanical & Environmental
| Model Name | SMA-JKG |
| Connector Interface | SMA Male to SMA Female |
| Durability | 500 Mating Cycles |
| Temperature Range | -55℃ ～ +165℃ |
Engineering Core Features
Millimeter-Wave Precision
Precision-machined interface supporting frequencies up to 26.5 GHz, maintaining exceptionally low reflection loss (VSWR ≤ 1.20) for critical high-frequency data testing.
Industrial Grade Build
Constructed with premium materials to ensure high mechanical strength and reliable electrical contact even after 500 mating cycles in professional environments.
Extreme Thermal Tolerance
Stable performance across a vast thermal span from -55℃ up to +165℃, making it ideal for aerospace, defense, and high-stress environmental chambers.
Mission-Critical Reliability
Maintains strict 50-ohm impedance matching to ensure seamless signal transition in professional telecommunications and instrumentation chains.
