Precision Sub-Miniature Interconnects

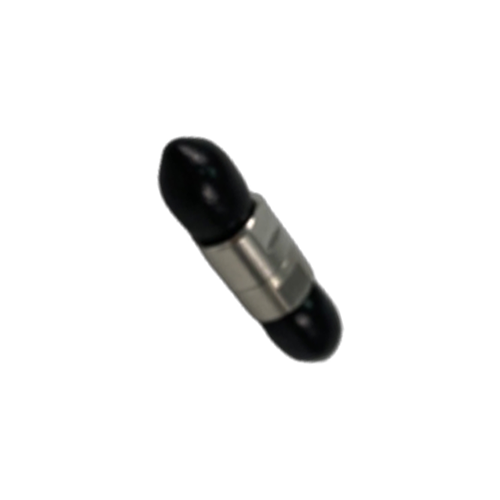

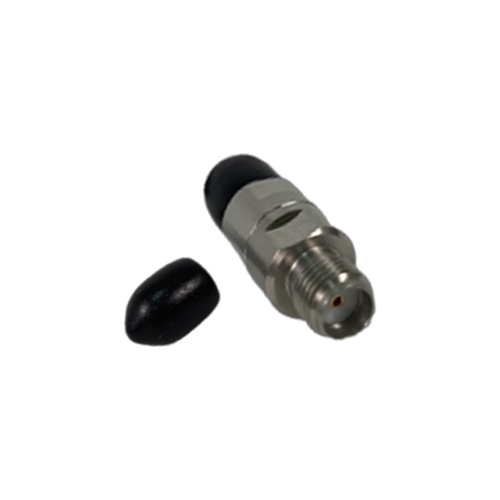

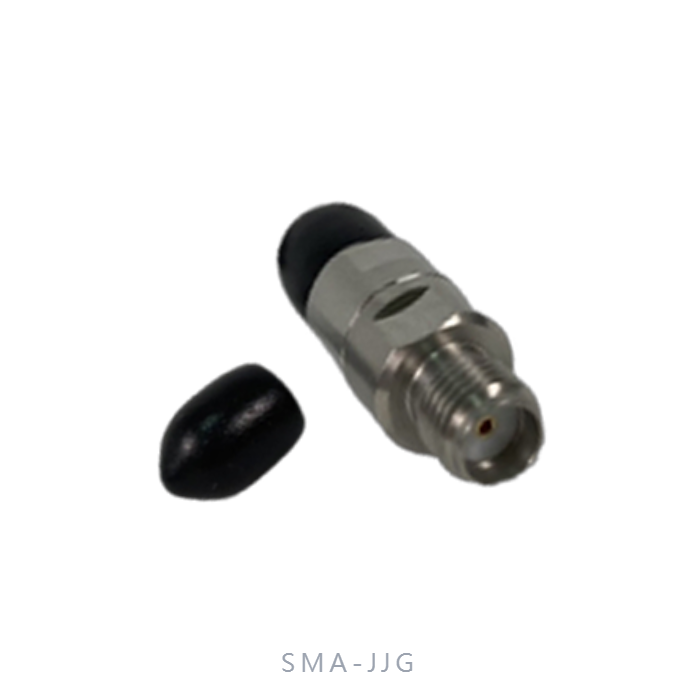

SMA Male to SMA Male Precision Adapter (SMA-JJG)
Professional high-performance SMA in-series adapter engineered for superior mechanical stability and millimeter-wave signal integrity. Optimized for advanced laboratory testing and precision RF systems up to 26.5 GHz.
Electrical Specifications
| Frequency Range | DC – 26.5 GHz |
| V.S.W.R (MAX) | ≤ 1.20 : 1 |
| Impedance | 50 Ω |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstand Voltage | 1000 V |
Mechanical & Environmental
| Model Name | SMA-JJG |
| Connector Interface | SMA Male to SMA Male |
| Durability | 500 Mating Cycles |
| Temperature Range | -55℃ ～ +165℃ |
Engineering Core Features
Millimeter-Wave Precision
Precision-machined interface supporting frequencies up to 26.5 GHz, maintaining exceptionally low reflection loss (VSWR ≤ 1.20) for high-frequency data testing.
Industrial Grade Build
Constructed with premium materials to provide high mechanical strength and consistent electrical performance through 500 mating cycles.
Extreme Thermal Tolerance
Stable performance across a vast thermal span from -55℃ up to +165℃, making it ideal for aerospace, defense, and high-stress environmental testing.
Mission-Critical Reliability
Maintains strict 50-ohm impedance matching to ensure seamless coupling in professional telecommunications and measurement chains.
