Directional Wireless Solutions

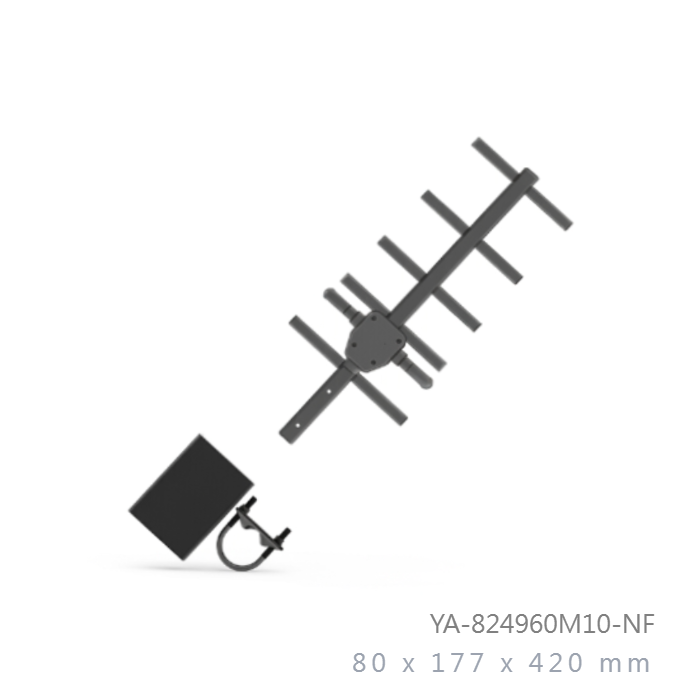

824MHz to 960MHz 10dBi Directional Yagi Outdoor Antenna
YA-824960M10-NF | Professional grade high-gain Yagi antenna optimized for GSM/ISM bands, featuring precision point-to-point coverage and all-weather durability.
Electrical Specifications
| Frequency Range | 824 MHz – 960 MHz |
| Gain | 10 dBi |
| V.S.W.R | ≤ 2.0 |
| Maximum Power | 300 Watts |
| Input Connector | N-Type Female |
Mechanical Specifications
| Dimensions | 80 x 177 x 420 mm |
| Total Weight | 600 g |
| Mounting Hardware | MO-A1 (1.5" Stainless Steel U-Bolt) |
| Origin | Designed & Made in Taiwan |
Tactical Engineering Features
High Gain Precision
Precision-tuned 10dBi Yagi design provides exceptional signal directivity and range for mission-critical bridge applications.
Industrial Reliability
Engineered for all-weather outdoor operation with robust mechanical protection and a high-power handling capacity of 300W.
Stainless Steel Bracket
Includes the professional MO-A1 mounting kit with AISI 304 stainless steel U-bolts for maximum corrosion resistance.
Taiwanese Quality
Fully designed and manufactured in Taiwan, ensuring rigorous quality control and superior mechanical assembly standards.
