Directional Wireless Solutions

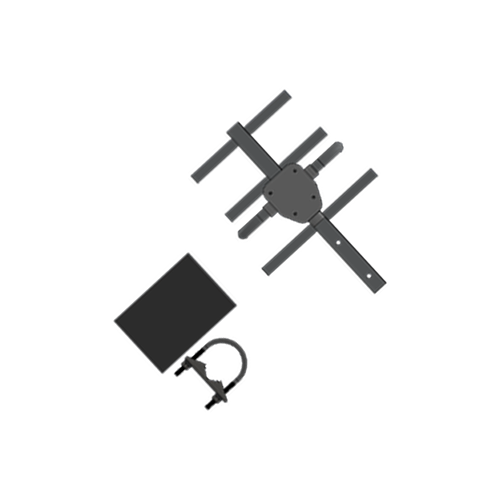

824MHz to 960MHz Directional Yagi Outdoor Antenna
Professional high-gain Yagi antenna series optimized for 900MHz band point-to-point bridging, directional multipoint applications, and public wireless networks.
Electrical Specifications
| Frequency Range | 824 MHz – 960 MHz |
| Gain | 8 dBi / 10 dBi |
| V.S.W.R | ≤ 2.0 |
| Maximum Power | 300 Watts |
| Protection | DC Short Lightning Protection |
Mechanical Specifications
| Antenna Design | Yagi Directional |

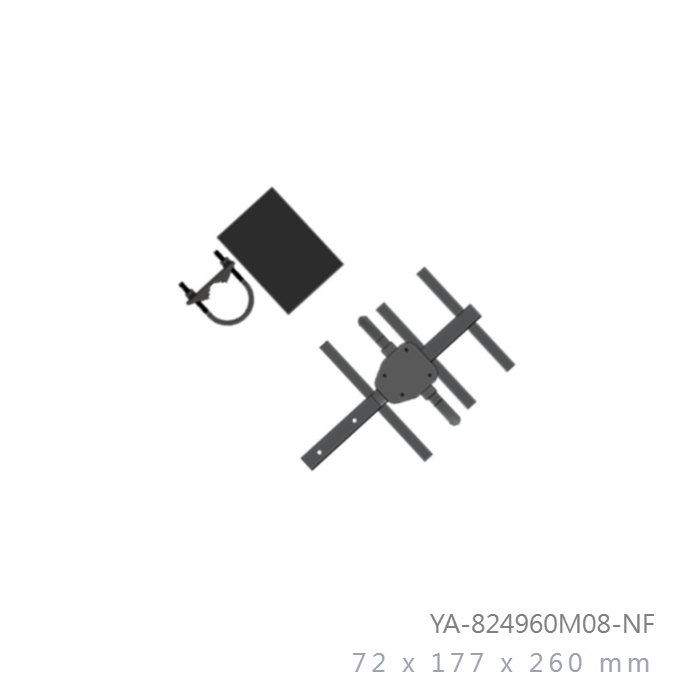

| Dimensions | 72 x 177 x 260 mm |
| Connector Type | N-Type Female |
| Compliance | RoHS Compliance |
Tactical Engineering Features
Superior Performance
Precision-tuned Yagi design ensures consistent signal directivity and excellent range for long-distance bridge applications.
Industrial Reliability
Rugged all-weather construction with a professional mechanical finish, optimized for public wireless infrastructure.
Lightning Safety
Integrated DC Short lightning protection safeguards sensitive RF equipment during extreme outdoor weather events.
Compact Integration
Highly efficient size-to-gain ratio, making it an ideal choice for MMDS, hotspots, and point-to-point wireless video.
